Облицовка (2-2) — HITACHI ZX40U
Схема и каталожные номера деталей узла «Облицовка (2-2)» для экскаватора HITACHI ZX40U.

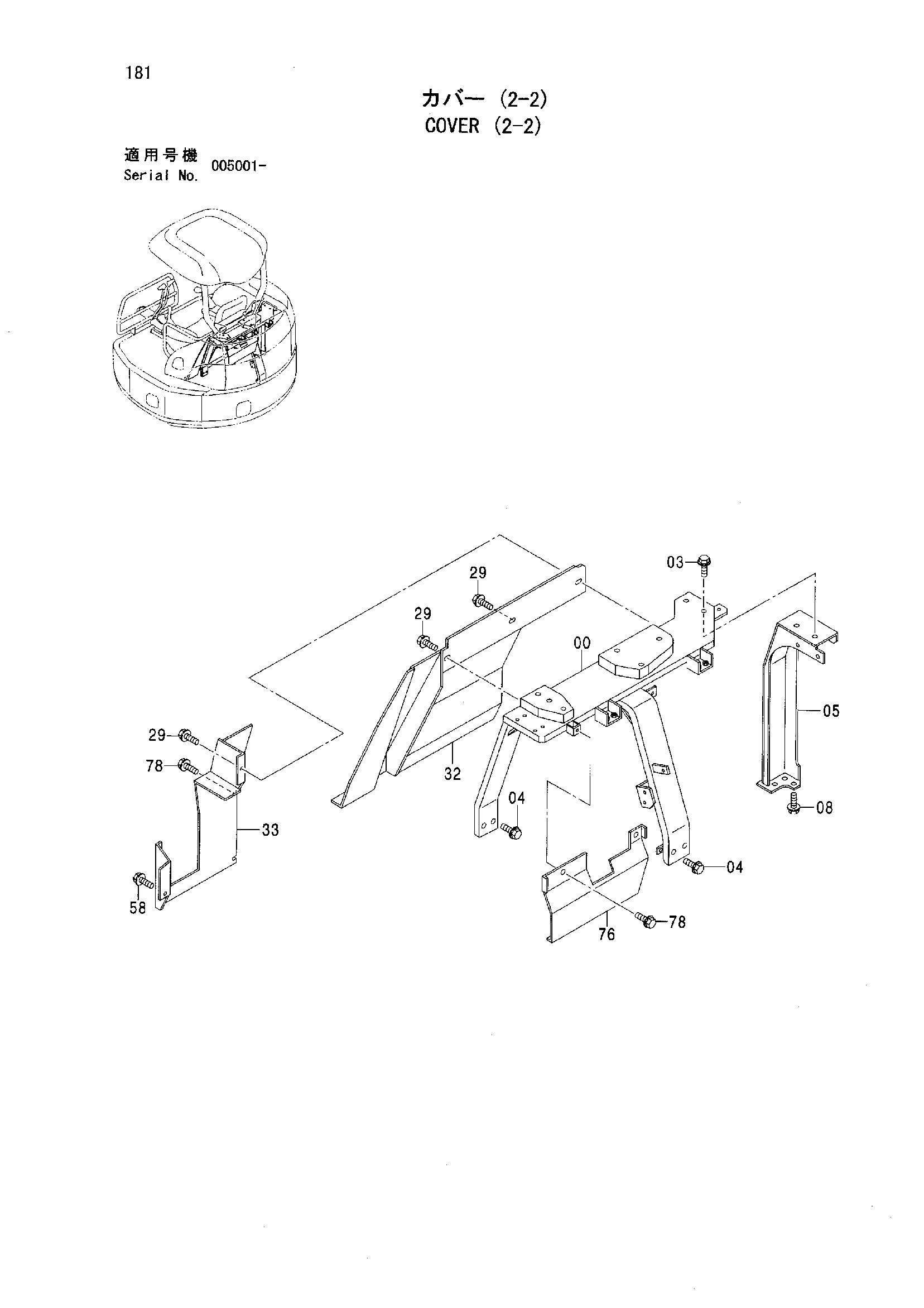

Схема узла
Каталожные номера
| Позиция | Наименование | Каталожный номер | Кол. |
|---|---|---|---|
| 00 | SUPPORT | 6020746 | 1 |
| 03 | BOLT SEMS | J051250 | 2 |
| 03 | BOLT SEMS | J271250 | 2 |
| 03 | BOLT SEMS | J271250 | 2 |
| 04 | BOLT SEMS | J051245 | 4 |
| 04 | BOLT SEMS | J271245 | 4 |
| 04 | BOLT SEMS | J271245 | 4 |
| 05 | BRACKET | 7042501 | 1 |
| 08 | BOLT SEMS | J051225 | 3 |
| 08 | BOLT SEMS | J271225 | 3 |
| 08 | BOLT SEMS | J271225 | 3 |
| 29 | BOLT SEMS | J090825 | 3 |
| 29 | BOLT SEMS | J260825 | 3 |
| 29 | BOLT SEMS | J260825 | 3 |
| 32 | COVER | 7041801 | 1 |
| 33 | COVER | 8086949 | 1 |
| 58 | BOLT SEMS | J090616 | 1 |
| 58 | BOLT SEMS | J260614 | 1 |
| 58 | BOLT SEMS | J260614 | 1 |
| 76 | COVER | 3094748 | 1 |
| 78 | BOLT SEMS | J090820 | 4 |
| 78 | BOLT SEMS | J260820 | 4 |
| 78 | BOLT SEMS | J260820 | 4 |
