Облицовка (2-1) — HITACHI ZX40U
Схема и каталожные номера деталей узла «Облицовка (2-1)» для экскаватора HITACHI ZX40U.

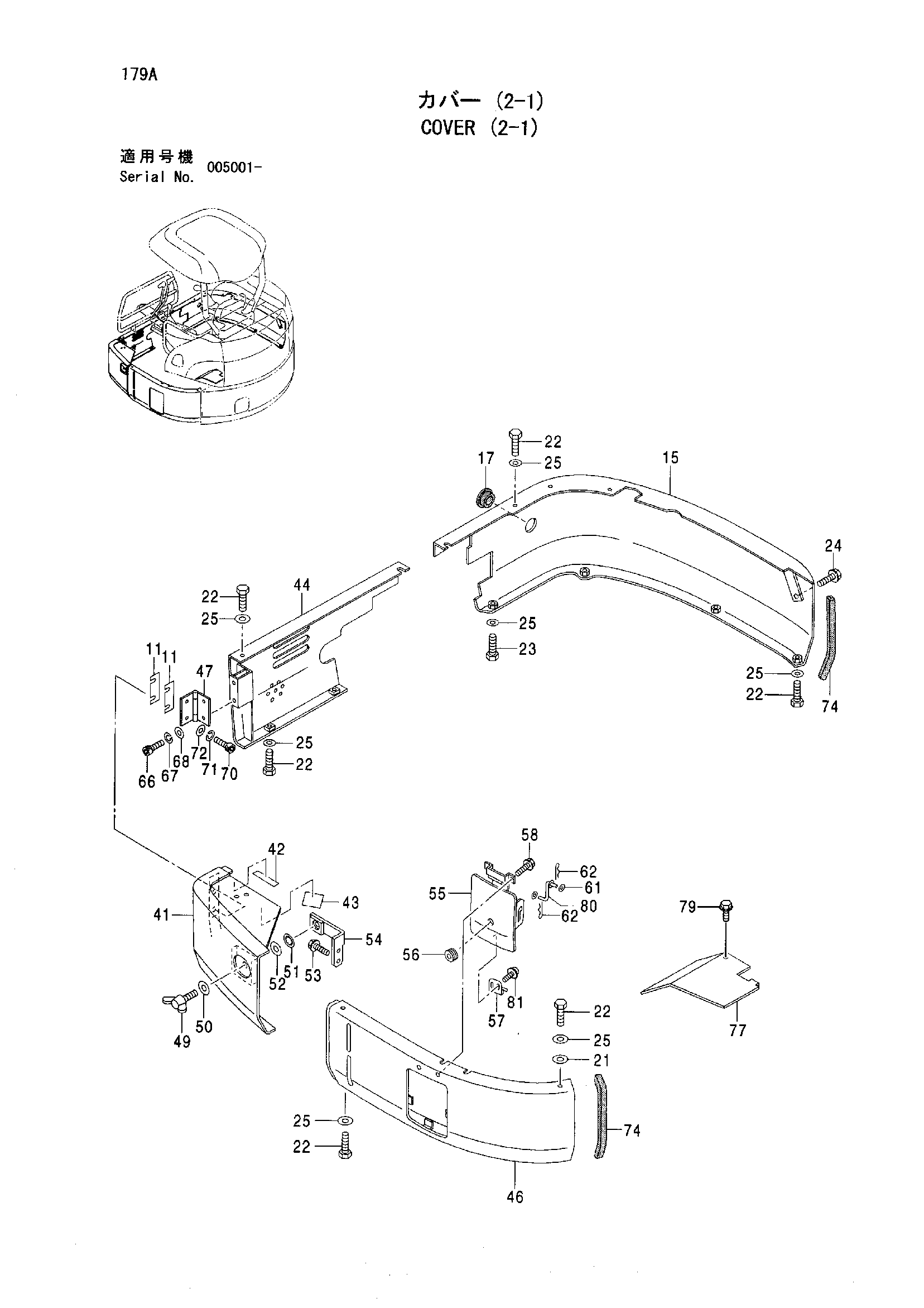

Схема узла
Каталожные номера
| Позиция | Наименование | Каталожный номер | Кол. |
|---|---|---|---|
| 11 | SHIM 1.2 | 4406464 | 2 |
| 15 | COVER | 7041800 | 1 |
| 15 | COVER | 7043901 | 1 |
| 17 | BUSHING RUBBER | 4349381 | 1 |
| 21 | WASHER | 4346037 | 4 |
| 21 | WASHER | 4338215 | 4 |
| 22 | BOLT | J960825 | 15 |
| 22 | BOLT | J900825 | 15 |
| 23 | BOLT | J960835 | 1 |
| 23 | BOLT | J900835 | 1 |
| 24 | BOLT SEMS | J090825 | 1 |
| 24 | BOLT SEMS | J260825 | 1 |
| 24 | BOLT SEMS | J260825 | 1 |
| 25 | WASHER | J254008 | 16 |
| 25 | WASHER | J222008 | 16 |
| 41 | COVER | 7043050 | 1 |
| 41 | COVER | 7041833 | 1 |
| 42 | SEAT | 4420366 | 4 |
| 43 | SEAT | 4415136 | 1 |
| 44 | COVER | 8074022 | 1 |
| 46 | COVER | 7041768 | 1 |
| 46 | COVER | 7043349 | 1 |
| 47 | HINGE | 4414841 | 1 |
| 49 | BOLT WING | 4420337 | 1 |
| 50 | WASHER | 4346037 | 1 |
| 50 | WASHER | 4338215 | 1 |
| 51 | NUT | 4412154 | 1 |
| 52 | WASHER PLANE | J253108 | 1 |
| 52 | WASHER PLANE | A590108 | 1 |
| 53 | BOLT SEMS | J090820 | 2 |
| 53 | BOLT SEMS | J260820 | 2 |
| 53 | BOLT SEMS | J260820 | 2 |
| 54 | BRACKET | 9758876 | 1 |
| 54 | BRACKET | 9751371 | 1 |
| 55 | COVER | 7041638 | 1 |
| 56 | GROMMET | 4299864 | 1 |
| 57 | SPRING | 4405877 | 1 |
| 58 | BOLT SEMS | J090616 | 2 |
| 58 | BOLT SEMS | J260614 | 2 |
| 58 | BOLT SEMS | J260614 | 2 |
| 61 | WASHER | 4345258 | 2 |
| 62 | PIN LOCK | 4022696 | 2 |
| 66 | BOLT SOCKET | J770820 | 2 |
| 66 | BOLT SOCKET | J780820 | 2 |
| 67 | WASHER SPRING | J252108 | 2 |
| 67 | WASHER SPRING | A590908 | 2 |
| 68 | WASHER PLANE | J253108 | 2 |
| 68 | WASHER PLANE | A590108 | 2 |
| 70 | BOLT SOCKET | J771025 | 2 |
| 70 | BOLT SOCKET | J781025 | 2 |
| 71 | WASHER SPRING | J252210 | 2 |
| 71 | WASHER SPRING | A590910 | 2 |
| 72 | WASHER PLANE | J253110 | 2 |
| 72 | WASHER PLANE | A590110 | 2 |
| 74 | MOULDING | 4440756 | 2 |
| 77 | COVER | 3094749 | 1 |
| 79 | BOLT SEMS | J051020 | 2 |
| 79 | BOLT SEMS | J271020 | 2 |
| 79 | BOLT SEMS | J271020 | 2 |
| 80 | STAY | 9743982 | 1 |
| 81 | SCREW SEMS | J680408 | 2 |
