Облицовка (1-3) — HITACHI ZX40U
Схема и каталожные номера деталей узла «Облицовка (1-3)» для экскаватора HITACHI ZX40U.

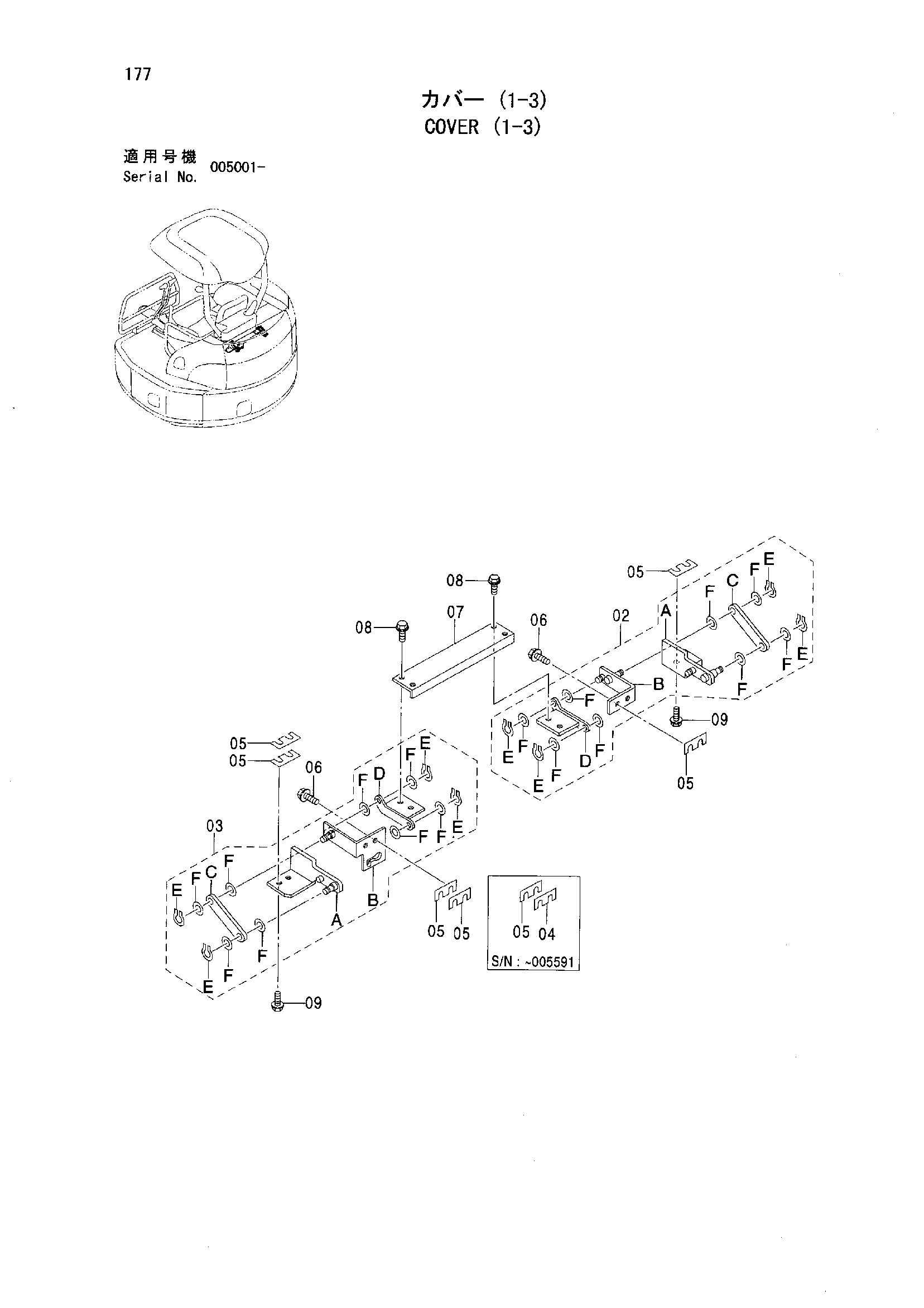

Схема узла
Каталожные номера
| Позиция | Наименование | Каталожный номер | Кол. |
|---|---|---|---|
| 02 | LINK ASS'Y | 4415184 | 1 |
| 02A | BRACKET | 8075454 | 1 |
| 02B | BRACKET | 8071578 | 1 |
| 02C | LINK | 4392999 | 1 |
| 02D | BRACKET | 8071580 | 1 |
| 02E | RING RETAINING | 4393985 | 4 |
| 02F | WASHER PLANE | J253108 | 8 |
| 02F | WASHER PLANE | A590108 | 8 |
| 03 | LINK ASS'Y | 4415099 | 1 |
| 03A | BRACKET | 8075453 | 1 |
| 03B | BRACKET | 8071577 | 1 |
| 03C | LINK | 4392999 | 1 |
| 03D | BRACKET | 8071579 | 1 |
| 03E | RING RETAINING | 4393985 | 4 |
| 03F | WASHER PLANE | J253108 | 8 |
| 03F | WASHER PLANE | A590108 | 8 |
| 04 | SHIM 1.0 | 4377498 | 4 |
| 05 | SHIM 2.0 | 4377499 | 5 |
| 05 | SHIM 2.0 | 4377499 | 6 |
| 06 | BOLT SEMS | J090818 | 4 |
| 06 | BOLT SEMS | J260816 | 4 |
| 06 | BOLT SEMS | J260816 | 4 |
| 07 | PLATE | 4398651 | 1 |
| 08 | BOLT SEMS | J090825 | 4 |
| 08 | BOLT SEMS | J090820 | 4 |
| 08 | BOLT SEMS | J260820 | 4 |
| 08 | BOLT SEMS | J260820 | 4 |
| 09 | BOLT SEMS | J090830 | 4 |
| 09 | BOLT SEMS | J260830 | 4 |
| 09 | BOLT SEMS | J260830 | 4 |
