Облицовка (1-2) — HITACHI ZX40U
Схема и каталожные номера деталей узла «Облицовка (1-2)» для экскаватора HITACHI ZX40U.

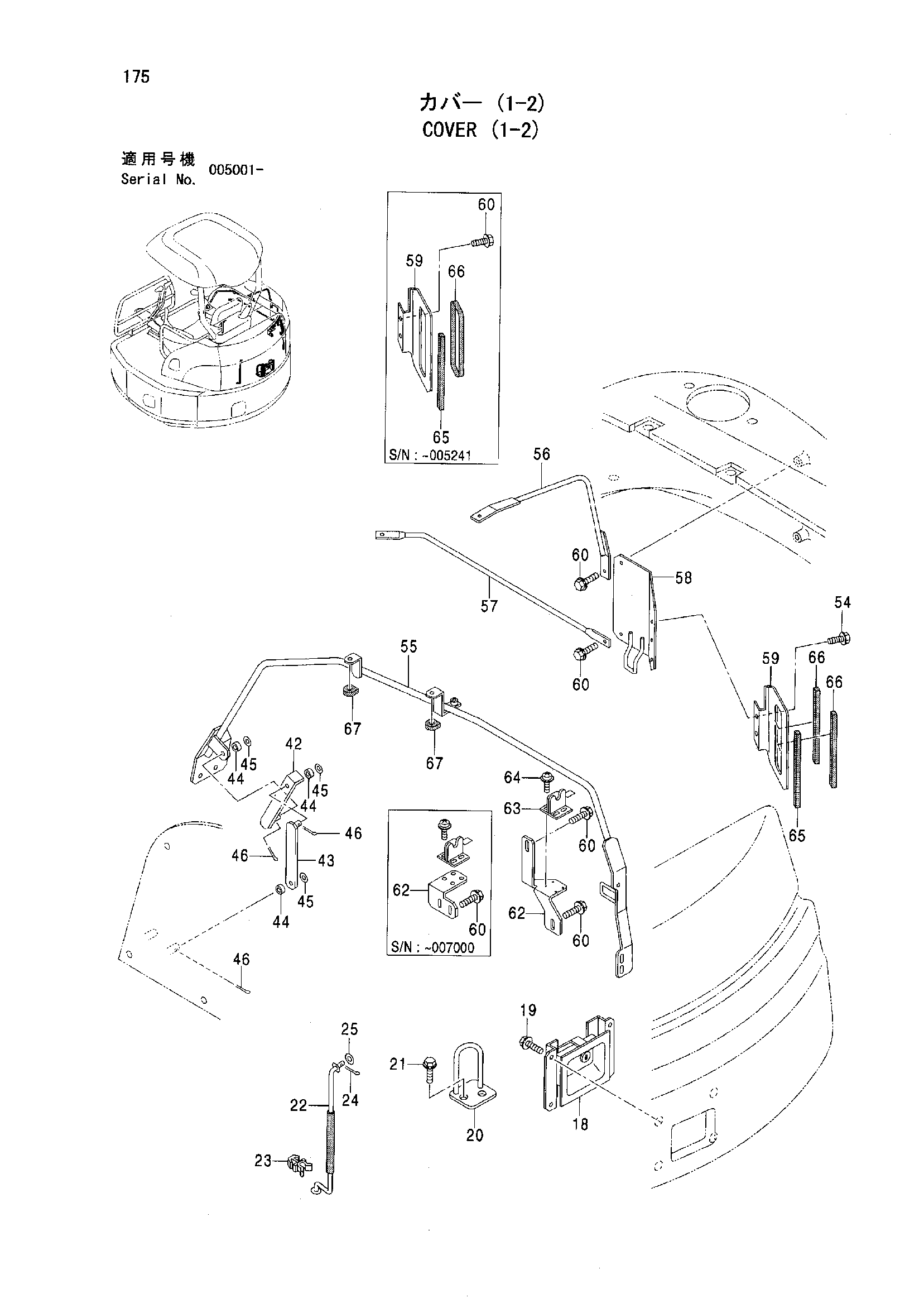

Схема узла
Каталожные номера
| Позиция | Наименование | Каталожный номер | Кол. |
|---|---|---|---|
| 18 | RATCH | 4418105 | 1 |
| 19 | BOLT SEMS | J090614 | 4 |
| 19 | BOLT SEMS | J260612 | 4 |
| 19 | BOLT SEMS | J260612 | 4 |
| 20 | CATCH | 9758911 | 1 |
| 21 | BOLT SEMS | J051030 | 2 |
| 21 | BOLT SEMS | J271025 | 2 |
| 21 | BOLT SEMS | J271025 | 2 |
| 22 | STAY | 8071581 | 1 |
| 23 | HOLDER | 4399244 | 1 |
| 24 | PIN SPLIT | A762016 | 1 |
| 25 | WASHER PLANE | J253108 | 1 |
| 25 | WASHER PLANE | A590108 | 1 |
| 42 | LINK | 9758854 | 1 |
| 43 | LINK | 9758850 | 1 |
| 44 | COLLAR | 4364950 | 3 |
| 45 | WASHER PLANE | J253108 | 3 |
| 45 | WASHER PLANE | A590108 | 3 |
| 46 | PIN LOCK | 4402852 | 3 |
| 54 | BOLT SEMS | J090818 | 2 |
| 54 | BOLT SEMS | J260816 | 2 |
| 54 | BOLT SEMS | J260816 | 2 |
| 55 | STAY | 6021066 | 1 |
| 56 | STAY | 8088465 | 1 |
| 57 | STAY | 4479222 | 1 |
| 58 | PLATE | 8088478 | 1 |
| 59 | PLATE | 3096061 | 1 |
| 60 | BOLT SEMS | J090816 | 10 |
| 60 | BOLT SEMS | J090816 | 8 |
| 60 | BOLT SEMS | J260816 | 8 |
| 60 | BOLT SEMS | J260816 | 8 |
| 62 | BRACKET | 4474864 | 1 |
| 62 | BRACKET | 4618616 | 1 |
| 63 | RATCH | 4409578 | 1 |
| 64 | SCREW SEMS | J680410 | 4 |
| 65 | CUSHION | 4480002 | 1 |
| 66 | CUSHION | 4480003 | 1 |
| 66 | SEAL RUBBER | 4431333 | 2 |
| 67 | RUBBER | 4473109 | 2 |
