Облицовка (1-1) — HITACHI ZX40U

Схема и каталожные номера деталей узла «Облицовка (1-1)» для экскаватора HITACHI ZX40U.

МодельHITACHI ZX40UРазделВерхняя платформаСтраница173

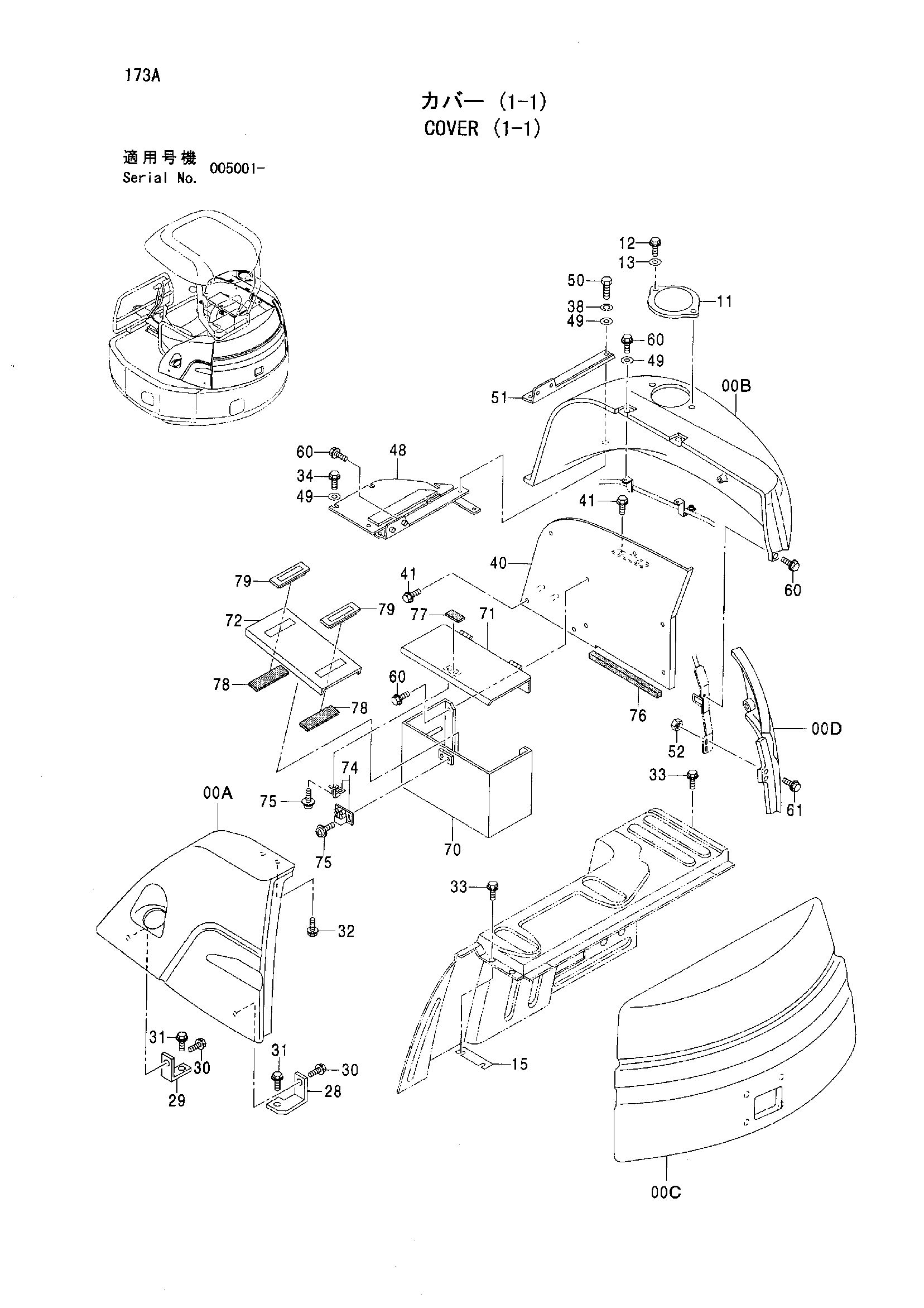

Схема узла

Позиция	Наименование	Каталожный номер	Кол.
00	COVER ASS'Y	4607066	1
00A	COVER	4485790	1
00B	COVER	4607067	1
00C	COVER	4485796	1
00D	COVER	4485801	1
11	COVER	3091308	1
12	SCREW	4373779	2
12	BOLT SEMS	J090620	2
12	BOLT SEMS	J260620	2
12	BOLT SEMS	J260620	2
13	WASHER	J254006	2
15	SHIM 1.0	4402916	1
28	BRACKET	4393556	1
29	BRACKET	4393557	1
30	BOLT SEMS	J090818	2
30	BOLT SEMS	J260816	2
30	BOLT SEMS	J260816	2
31	BOLT SEMS	J090825	2
31	BOLT SEMS	J260825	2
31	BOLT SEMS	J260825	2
32	BOLT SEMS	J090835	2
32	BOLT SEMS	J260835	2
32	BOLT SEMS	J260835	2
33	BOLT SEMS	J090820	3
33	BOLT SEMS	J260820	3
33	BOLT SEMS	J260820	3
34	BOLT SEMS	J090825	7
34	BOLT SEMS	J260825	7
34	BOLT SEMS	J260825	7
38	WASHER SPRING	A590908	2
40	BRACKET	7042549	1
40	BRACKET	7042549	1
40	BRACKET	7042549	1
40	BRACKET	7043269	1
41	BOLT SEMS	J090820	4
41	BOLT SEMS	J260820	4
41	BOLT SEMS	J260820	4
48	BRACKET	7041177	1
49	WASHER	4346037	8
49	WASHER	4338215	8
50	BOLT SEMS	J080825	2
50	BOLT SEMS	J080825	2
50	BOLT SEMS	J080825	2
50	BOLT	J900825	2
51	PLATE	4479552	1
52	NUT	J231108	2
52	NUT	M500807	2
60	BOLT SEMS	J090816	9
60	BOLT SEMS	J260816	9
60	BOLT SEMS	J260816	9
61	BOLT SEMS	J090825	2
61	BOLT SEMS	J260825	2
61	BOLT SEMS	J260825	2
70	BRACKET	7042668	1
70	BRACKET	7042668	1
70	BRACKET	7042668	1
70	BRACKET	7043270	1
70	BRACKET	7043270	1
70	BRACKET	7043270	1
70	BRACKET	7044006	1
71	BRACKET	8088657	1
71	BRACKET	8088657	1
71	BRACKET	8088657	1
71	BRACKET	8089766	1
71	BRACKET	8089766	1
71	BRACKET	8089766	1
71	BRACKET	8090883	1
72	PLATE	4482278	1
72	PLATE	4482278	1
72	PLATE	4482278	1
72	PLATE	4489447	1
74	CATCH	4476250	1
75	SCREW SEMS	J460308	4
76	RUBBER	4481971	1
77	RUBBER	4481877	1
78	RUBBER	4483192	1
79	HANDLE	4483577	2
