Детали кабины (1) — HITACHI ZX40U
Схема и каталожные номера деталей узла «Детали кабины (1)» для экскаватора HITACHI ZX40U.

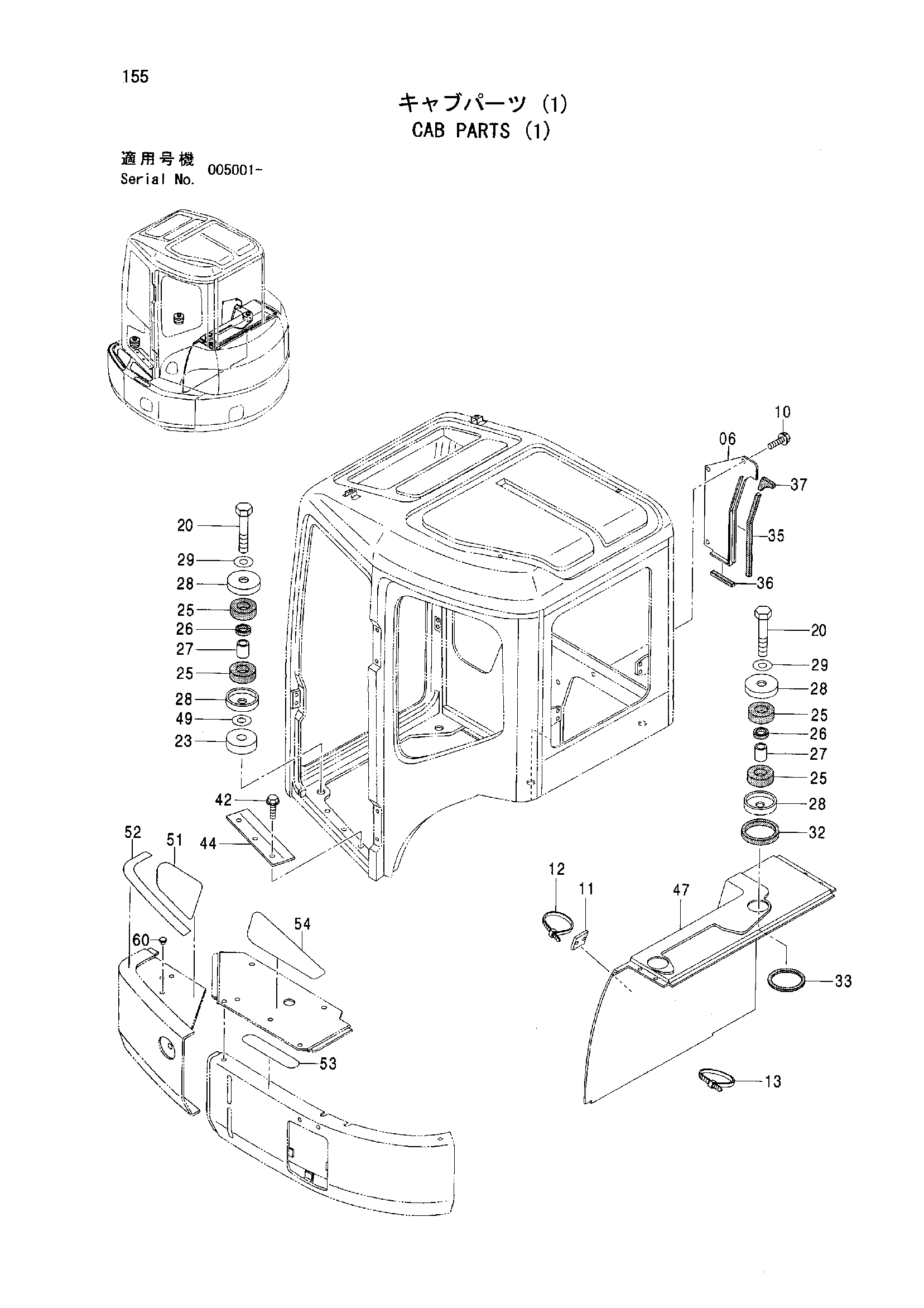

Схема узла
Каталожные номера
| Позиция | Наименование | Каталожный номер | Кол. |
|---|---|---|---|
| 06 | PLATE | 8075930 | 1 |
| 10 | BOLT SEMS | J090816 | 3 |
| 10 | BOLT SEMS | J260816 | 3 |
| 10 | BOLT SEMS | J260816 | 3 |
| 11 | CLIP WIRE | 4375828 | 1 |
| 12 | CLIP BAND | 4326365 | 1 |
| 13 | CLIP BAND | 4055312 | 1 |
| 20 | BOLT | J971601 | 4 |
| 20 | BOLT | J901601 | 4 |
| 23 | SPACER | 4409659 | 2 |
| 25 | RUBBER | 4200084 | 8 |
| 26 | RUBBER | 4200085 | 4 |
| 27 | SPACER | 4200086 | 4 |
| 28 | STOPPER | 4203878 | 8 |
| 29 | WASHER | J254016 | 4 |
| 29 | WASHER | J222016 | 4 |
| 32 | SEAL RUBBER | 4416049 | 2 |
| 33 | SEAL RUBBER | 4416050 | 2 |
| 35 | SEAL RUBBER | 4483197 | 1 |
| 35 | SEAL RUBBER | 4419832 | 1 |
| 36 | SEAL RUBBER | 4483198 | 1 |
| 36 | SEAL RUBBER | 4419833 | 1 |
| 37 | SEAL RUBBER | 4483199 | 1 |
| 37 | SEAL RUBBER | 4419843 | 1 |
| 42 | BOLT SEMS | J090614 | 3 |
| 42 | BOLT SEMS | J260612 | 3 |
| 42 | BOLT SEMS | J260612 | 3 |
| 44 | PLATE | 4429229 | 1 |
| 47 | COVER | 4478747 | 1 |
| 49 | WASHER | 4298878 | 4 |
| 51 | TAPE | 4414036 | 1 |
| 52 | TAPE | 4484428 | 1 |
| 53 | TAPE | 4484429 | 1 |
| 54 | TAPE | 4484430 | 1 |
| 60 | CAP | 4385236 | 1 |
