Кабина (6) (с кондиционером) — HITACHI ZX40U
Схема и каталожные номера деталей узла «Кабина (6) (с кондиционером)» для экскаватора HITACHI ZX40U.

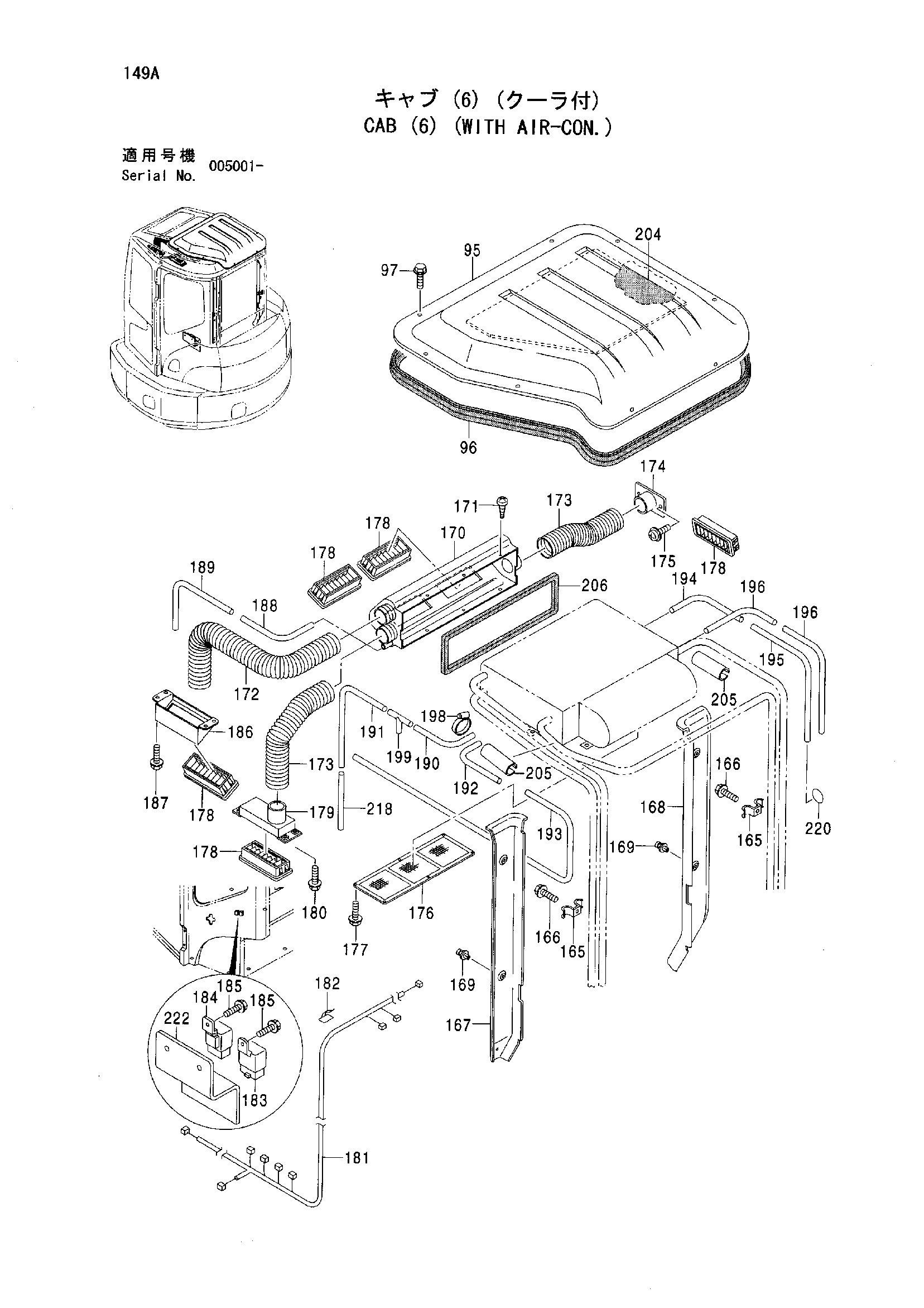

Схема узла
Каталожные номера
| Позиция | Наименование | Каталожный номер | Кол. |
|---|---|---|---|
| 95 | COVER | 4483447 | 1 |
| 96 | TRIM SEAL | 4427543 | 1 |
| 97 | BOLT | 4425821 | 8 |
| 165 | CLAMP | 4427504 | 4 |
| 166 | BOLT | 4380952 | 4 |
| 167 | COVER | 4476214 | 1 |
| 168 | COVER | 4476215 | 1 |
| 169 | RIVET | 4424723 | 4 |
| 170 | BOX | 4427508 | 1 |
| 171 | SCREW | 4383700 | 6 |
| 172 | DUCT | 4427509 | 1 |
| 173 | DUCT | 4427510 | 2 |
| 174 | PLATE | 4427512 | 1 |
| 175 | SCREW | 4380957 | 2 |
| 176 | FILTER | 4427513 | 1 |
| 177 | SCREW | 4380957 | 6 |
| 178 | LOUVER | 4427516 | 5 |
| 179 | PLATE | 4427517 | 1 |
| 180 | SCREW | 4380957 | 4 |
| 181 | HARNESS WIRE | 4427518 | 1 |
| 182 | CLIP | 4347049 | 5 |
| 183 | RELAY | 4427519 | 1 |
| 184 | RELAY | 4427520 | 1 |
| 185 | BOLT | 4380970 | 2 |
| 186 | DUCT | 4427521 | 1 |
| 187 | BOLT | 4383697 | 4 |
| 188 | HOSE | 4427522 | 1 |
| 189 | HOSE | 4476816 | 1 |
| 190 | HOSE | 4427524 | 1 |
| 191 | HOSE | 4476818 | 1 |
| 192 | HOSE | 4427522 | 1 |
| 193 | HOSE | 4476817 | 1 |
| 194 | HOSE | 4427524 | 1 |
| 195 | HOSE | 4476216 | 1 |
| 196 | HOSE | 4427522 | 2 |
| 198 | CLIP HOSE | 4514700 | 5 |
| 199 | JOINT HOSE | 4419027 | 6 |
| 204 | PAD | 4427529 | 1 |
| 205 | TAPE | 4427530 | 2 |
| 206 | SEAL | 4427531 | 1 |
| 218 | HOSE | 4476220 | 1 |
| 220 | BUSHING RUBBER | 4476221 | 1 |
| 222 | BRACKET | 4476819 | 1 |
