Кабина (5) — HITACHI ZX40U
Схема и каталожные номера деталей узла «Кабина (5)» для экскаватора HITACHI ZX40U.

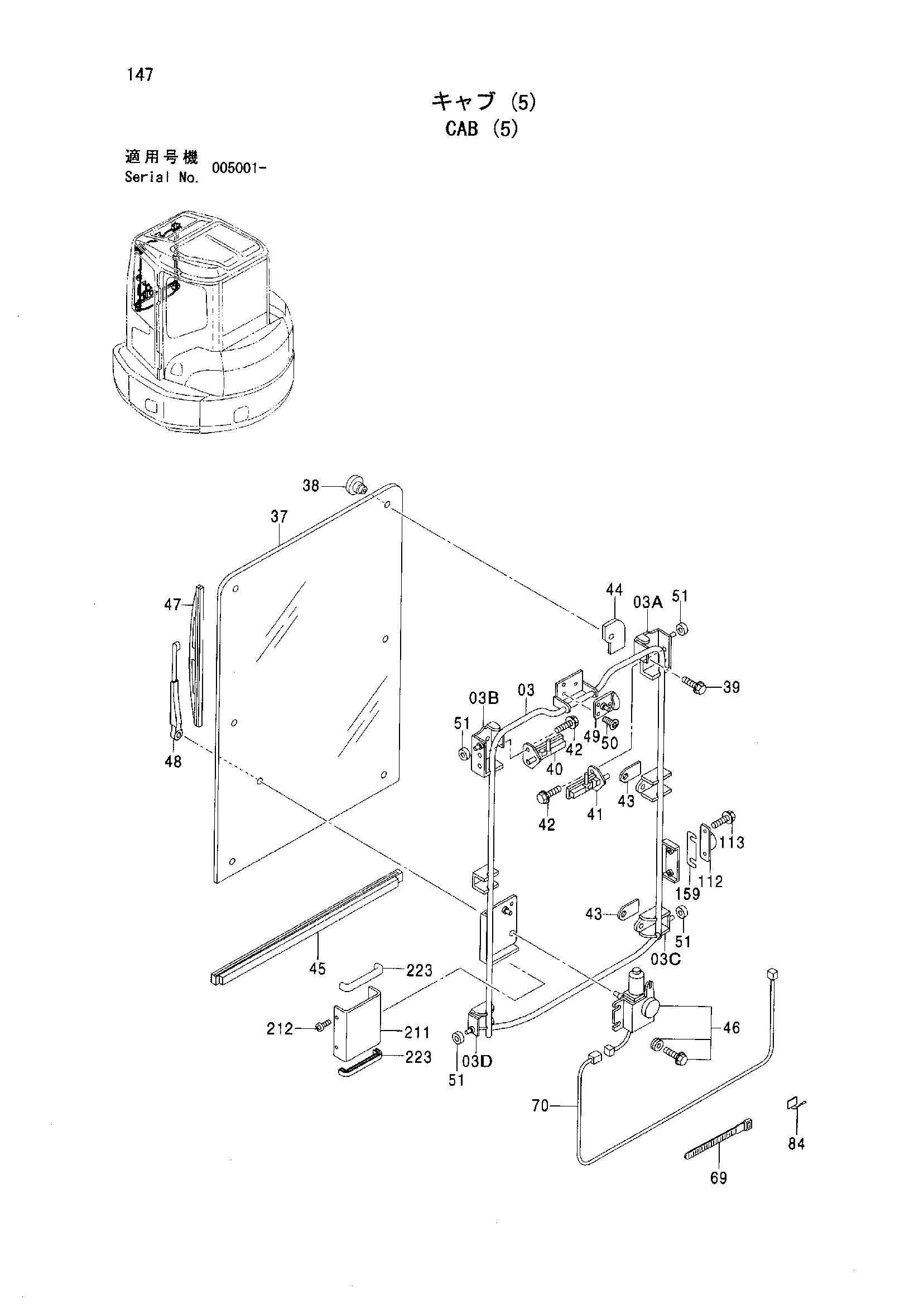

Схема узла
Каталожные номера
| Позиция | Наименование | Каталожный номер | Кол. |
|---|---|---|---|
| — | SASH ASS'Y | 4424664 | 1 |
| 03 | SASH | 4437655 | 1 |
| 03A | PLATE | 4601758 | 1 |
| 03B | PLATE | 4601759 | 1 |
| 03C | PLATE | 4601760 | 1 |
| 03D | PLATE | 4601761 | 1 |
| 37 | GLASS | 4424681 | 1 |
| 38 | NUT | 4424666 | 6 |
| 39 | BOLT | 4424757 | 6 |
| 40 | LATCH | 4424682 | 1 |
| 41 | LATCH | 4424683 | 1 |
| 42 | BOLT | 4424757 | 4 |
| 43 | CUSHION | 4424684 | 4 |
| 44 | CUSHION | 4424685 | 2 |
| 45 | SEAL | 4424686 | 1 |
| 46 | MOTOR WIPER | 4424687 | 1 |
| 47 | BLADE | 4424688 | 1 |
| 48 | ARM | 4424689 | 1 |
| 49 | STRIKER | 4424690 | 1 |
| 50 | BOLT | 4424758 | 3 |
| 51 | ROLLER | 4424701 | 4 |
| 69 | BAND | 4424719 | 8 |
| 70 | HARNESS WIRE | 4424720 | 1 |
| 84 | CLIP | 4347049 | 1 |
| 112 | STOPPER | 4424702 | 1 |
| 113 | BOLT | 4380970 | 2 |
| 159 | PLATE | 4424744 | 4 |
| 211 | COVER | 4482148 | 1 |
| 212 | SCREW | 4424766 | 3 |
| 223 | TRIM | 4483985 | 2 |
