Кабина (2) — HITACHI ZX40U
Схема и каталожные номера деталей узла «Кабина (2)» для экскаватора HITACHI ZX40U.

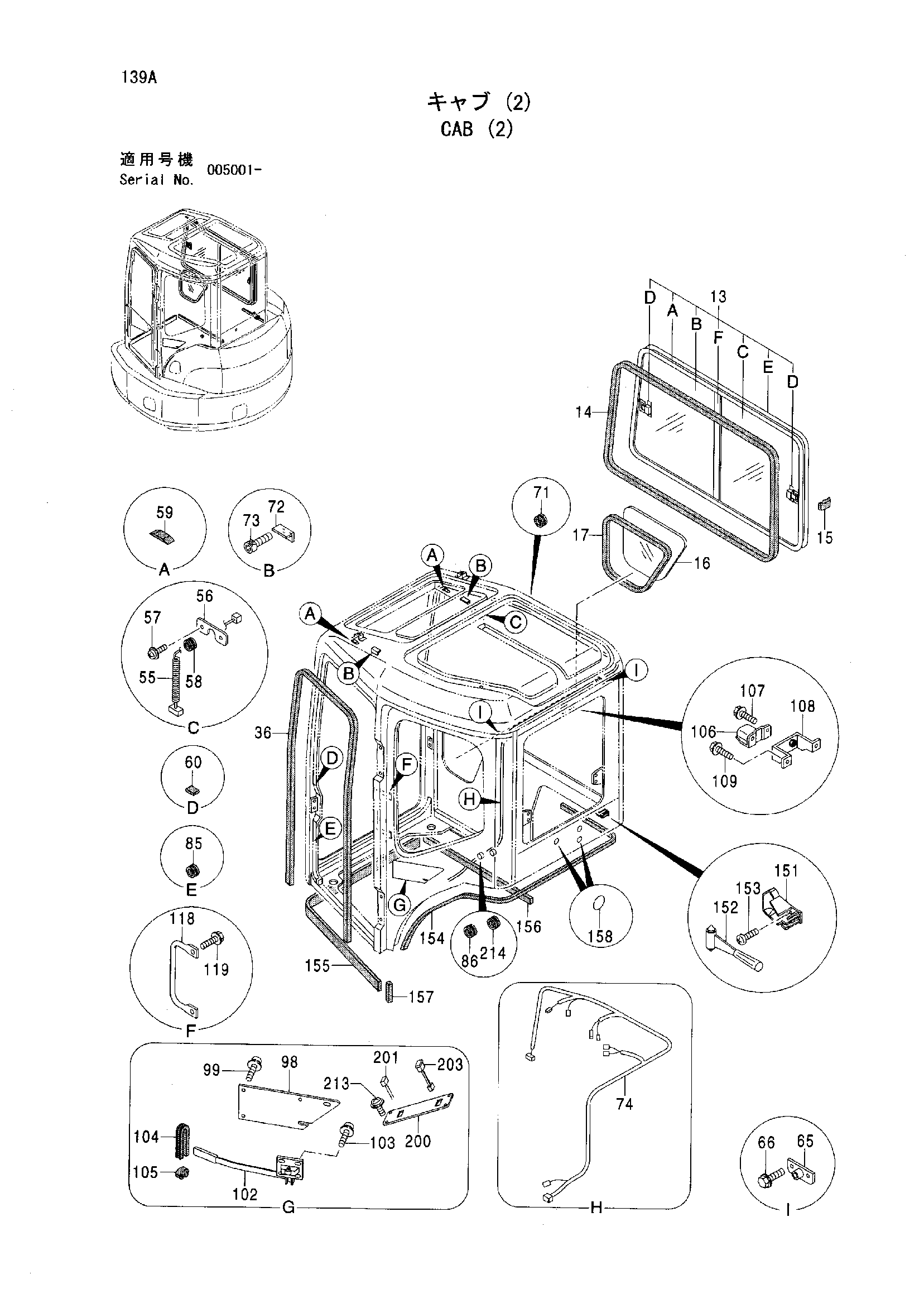

Схема узла
Каталожные номера
| Позиция | Наименование | Каталожный номер | Кол. |
|---|---|---|---|
| 13 | SASH ASS'Y | 4425822 | 1 |
| 13A | FLAME | 4448354 | 1 |
| 13B | GLASS | 4448355 | 1 |
| 13C | GLASS | 4448356 | 1 |
| 13D | LOCK | 4448357 | 1 |
| 13E | SEAL | 4448358 | 1 |
| 13F | SASH | 4448359 | 1 |
| 14 | TRIM SEAL | 4425823 | 1 |
| 15 | CUSHION | 4425824 | 10 |
| 16 | GLASS | 4425825 | 1 |
| 17 | WEATHER-STRIP | 4425826 | 1 |
| 36 | TRIM SEAL | 4424680 | 1 |
| 55 | HARNESS WIRE | 4424694 | 1 |
| 56 | PLATE | 4424695 | 1 |
| 57 | SCREW | 4380957 | 2 |
| 58 | BUSHING RUBBER | 4380977 | 1 |
| 59 | RUBBER | 4424696 | 2 |
| 60 | RUBBER | 4424697 | 2 |
| 65 | STOPPER | 4483442 | 2 |
| 66 | BOLT | 4380970 | 4 |
| 71 | CAP | 4425829 | 1 |
| 72 | PLATE | 4483436 | 2 |
| 73 | BOLT | 4424705 | 4 |
| 74 | HARNESS WIRE | 4425830 | 1 |
| 85 | BUSHING RUBBER | 4380977 | 1 |
| 86 | BUSHING RUBBER | 4347039 | 1 |
| 98 | PLATE | 4483434 | 1 |
| 99 | SCREW | 4380957 | 5 |
| 102 | LATCH | 4424714 | 1 |
| 103 | BOLT | 4424770 | 4 |
| 104 | BUSHING RUBBER | 4424715 | 1 |
| 105 | STOPPER | 4424716 | 1 |
| 106 | LATCH | 4424717 | 1 |
| 107 | BOLT | 4424770 | 2 |
| 108 | BRACKET | 4483437 | 1 |
| 109 | BOLT | 4424770 | 2 |
| 118 | GRIP | 4483448 | 1 |
| 119 | BOLT | 4424764 | 2 |
| 151 | BRACKET | 2038764 | 1 |
| 152 | HAMMER | 4362700 | 1 |
| 153 | SCREW | 4424771 | 2 |
| 154 | TRIM SEAL | 4425836 | 1 |
| 155 | SEAL | 4425837 | 1 |
| 156 | SEAL | 4425838 | 1 |
| 157 | SEAL | 4425839 | 1 |
| 158 | SEAL | 4425840 | 3 |
| 200 | PLATE | 4483446 | 1 |
| 201 | LEVER | 4428866 | 1 |
| 202 | SCREW | 4380957 | 6 |
| 203 | SWITCH | 4424743 | 1 |
| 213 | SCREW | 4436214 | 2 |
| 214 | CAP | 4430490 | 1 |
