Отопитель (1) — HITACHI ZX40U
Схема и каталожные номера деталей узла «Отопитель (1)» для экскаватора HITACHI ZX40U.

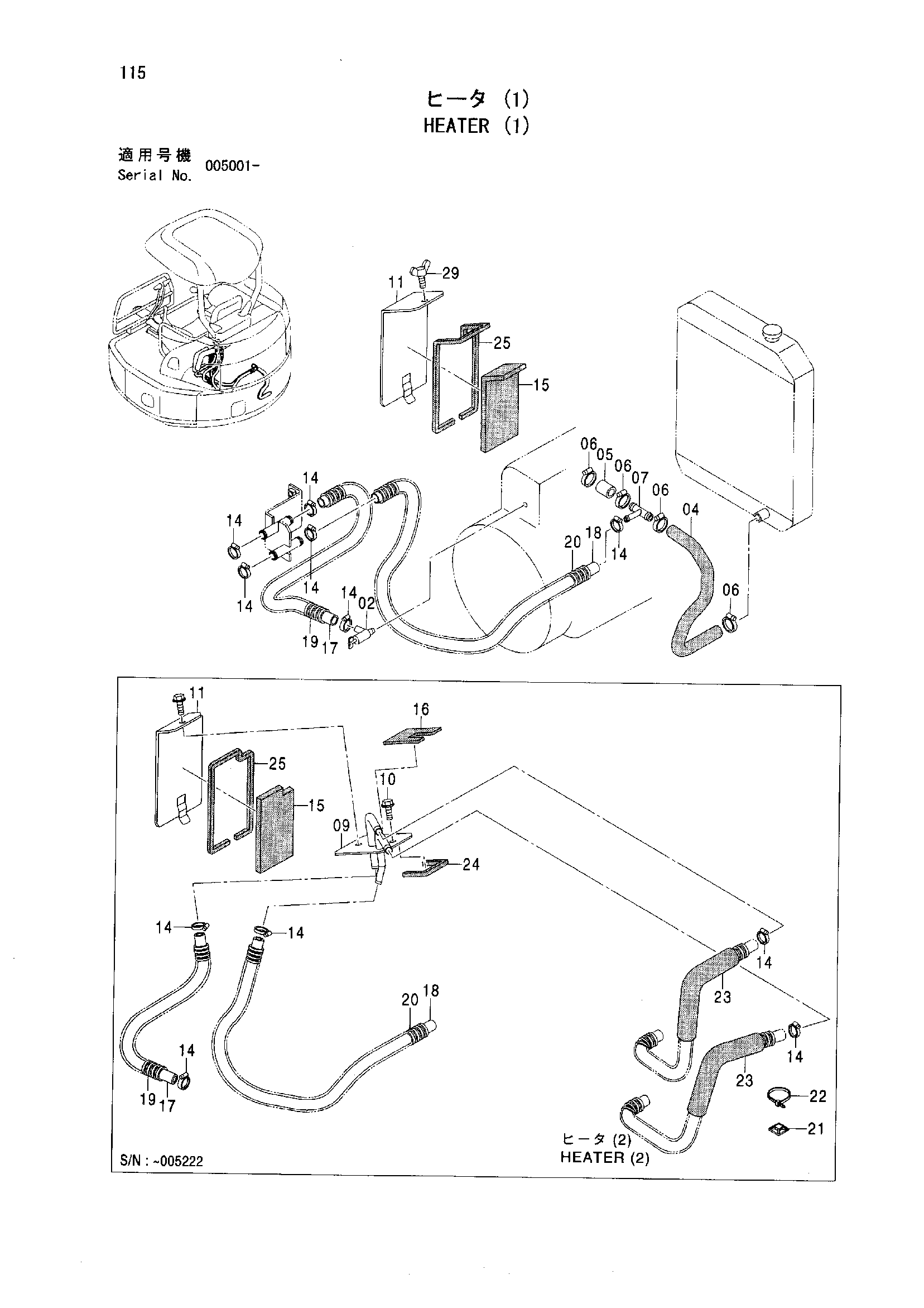

Схема узла
Каталожные номера
| Позиция | Наименование | Каталожный номер | Кол. |
|---|---|---|---|
| 02 | COCK | 4508050 | 1 |
| 04 | HOSE WATER | 3094619 | 1 |
| 05 | HOSE WATER | 4468968 | 1 |
| 06 | CLAMP HOSE | 4011675 | 4 |
| 07 | PIPE | 8087503 | 1 |
| 09 | BRACKET | 8088872 | 1 |
| 10 | BOLT SEMS | J090616 | 2 |
| 10 | BOLT SEMS | J090616 | 2 |
| 11 | COVER | 9759153 | 1 |
| 11 | COVER | 9751445 | 1 |
| 11 | COVER | 8090085 | 1 |
| 14 | CLAMP HOSE | 4514699 | 6 |
| 15 | RUBBER | 4482132 | 1 |
| 15 | RUBBER | 4470411 | 1 |
| 16 | RUBBER | 4483041 | 1 |
| 17 | HOSE WATER | 4431213 | 1 |
| 17 | HOSE WATER | 4484218 | 1 |
| 17 | HOSE WATER | 4475421 | 1 |
| 18 | HOSE WATER | 4436723 | 1 |
| 18 | HOSE WATER | 4484284 | 1 |
| 18 | HOSE WATER | 4376983 | 1 |
| 19 | TUBE CORRUGATED | 4480356 | 1 |
| 19 | TUBE CORRUGATED | 4484285 | 1 |
| 19 | TUBE CORRUGATED | 4475423 | 1 |
| 20 | TUBE CORRUGATED | 4480357 | 1 |
| 20 | TUBE CORRUGATED | 4484286 | 1 |
| 21 | CLIP WIRE | 4375828 | 2 |
| 22 | CLIP BAND | 4326365 | 2 |
| 23 | PROTECTOR | 4475439 | 2 |
| 24 | RUBBER | 4483473 | 1 |
| 25 | RUBBER | 4483474 | 1 |
| 25 | RUBBER | 4483472 | 1 |
| 29 | BOLT WING | M360616 | 1 |
