Кондиционер (2-3) — HITACHI ZX40U
Схема и каталожные номера деталей узла «Кондиционер (2-3)» для экскаватора HITACHI ZX40U.

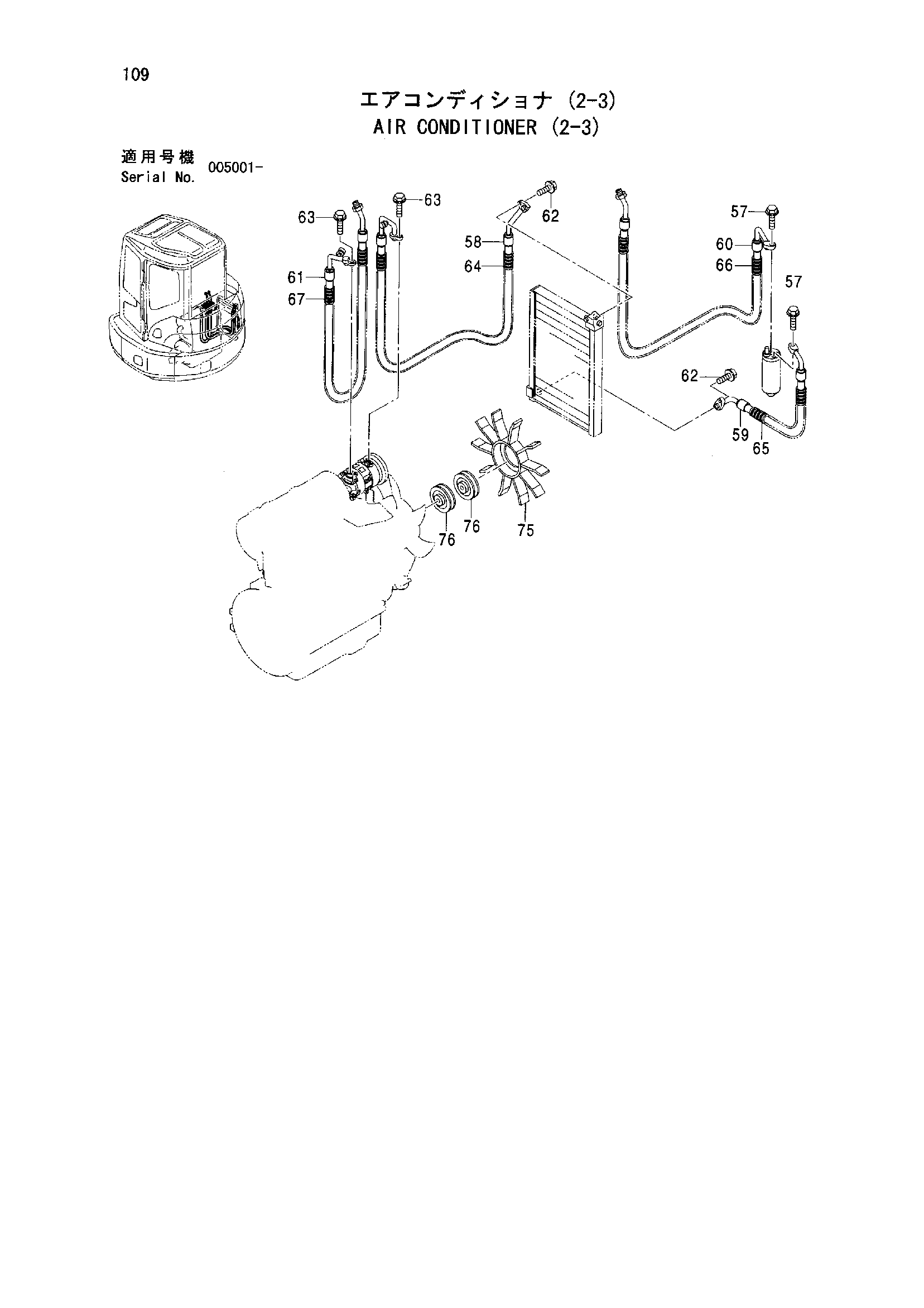

Схема узла
Каталожные номера
| Позиция | Наименование | Каталожный номер | Кол. |
|---|---|---|---|
| 57 | BOLT SEMS | J090630 | 2 |
| 57 | BOLT SEMS | J260630 | 2 |
| 57 | BOLT SEMS | J260630 | 2 |
| 58 | HOSE COOLER | 4472073 | 1 |
| 59 | HOSE COOLER | 4472074 | 1 |
| 60 | HOSE COOLER | 4472050 | 1 |
| 61 | HOSE COOLER | 4472051 | 1 |
| 62 | BOLT SEMS | J090825 | 2 |
| 62 | BOLT SEMS | J260825 | 2 |
| 62 | BOLT SEMS | J260825 | 2 |
| 63 | BOLT SEMS | J090830 | 2 |
| 63 | BOLT SEMS | J260830 | 2 |
| 63 | BOLT SEMS | J260830 | 2 |
| 64 | TUBE CORRUGATED | 4477887 | 1 |
| 65 | TUBE CORRUGATED | 4477888 | 1 |
| 66 | TUBE CORRUGATED | 4477889 | 1 |
| 67 | TUBE CORRUGATED | 4487480 | 1 |
| 75 | FAN | 4380102 | 1 |
| 76 | CPACER | 4601140 | 2 |
