Кондиционер (2-2) — HITACHI ZX40U
Схема и каталожные номера деталей узла «Кондиционер (2-2)» для экскаватора HITACHI ZX40U.

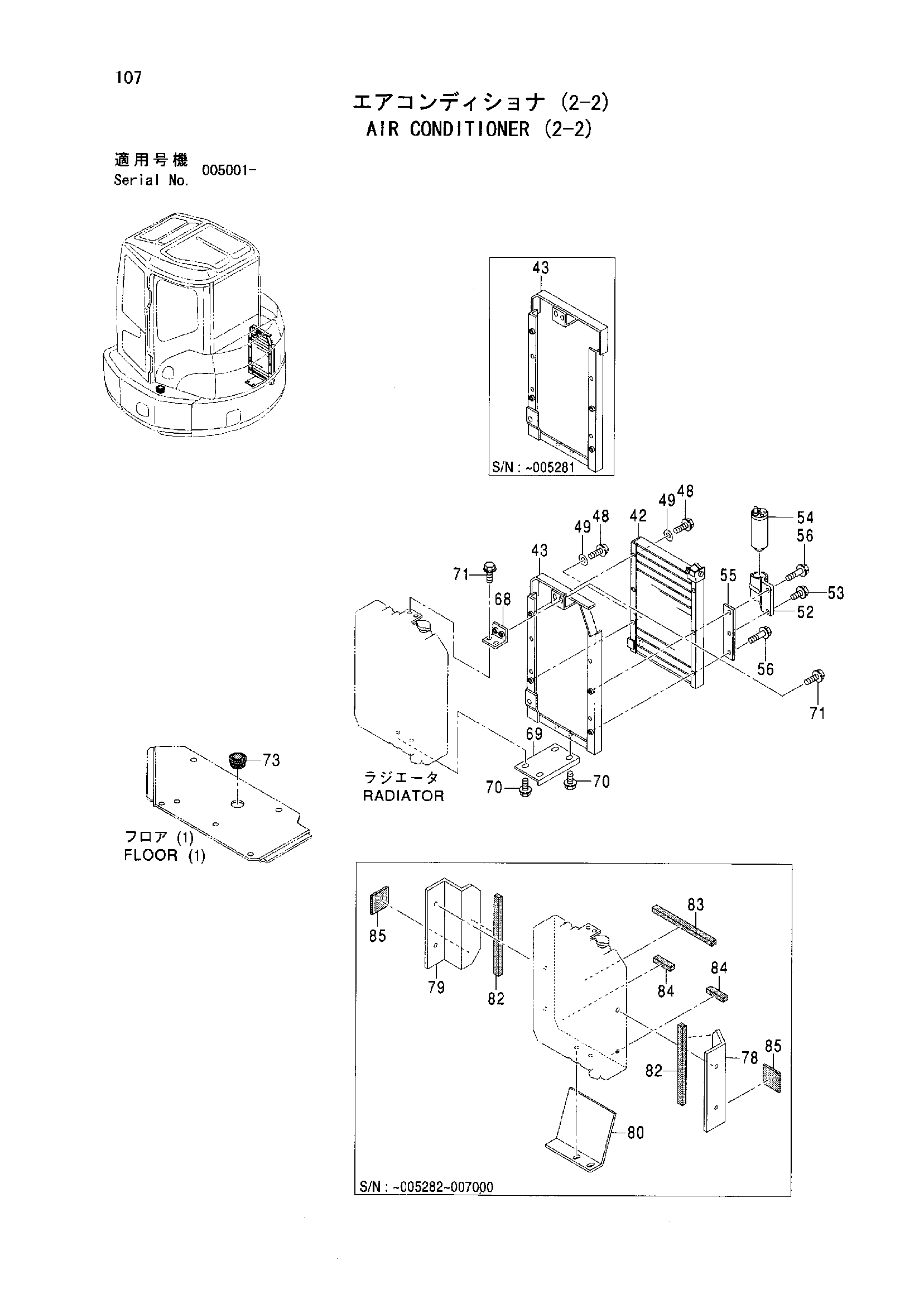

Схема узла
Каталожные номера
| Позиция | Наименование | Каталожный номер | Кол. |
|---|---|---|---|
| 42 | CONDENSER | 4418315 | 1 |
| 43 | BRACKET | 7042771 | 1 |
| 43 | BRACKET | 7042771 | 1 |
| 43 | BRACKET | 7042771 | 1 |
| 43 | BRACKET | 7042771 | 1 |
| 43 | BRACKET | 7042771 | 1 |
| 43 | BRACKET | 7042771 | 1 |
| 43 | BRACKET | 7042771 | 1 |
| 43 | BRACKET | 7042771 | 1 |
| 43 | BRACKET | 7043858 | 1 |
| 48 | BOLT SEMS | J080855 | 2 |
| 48 | BOLT SEMS | J260855 | 2 |
| 48 | BOLT SEMS | J260855 | 2 |
| 49 | WASHER PLANE | 4308365 | 2 |
| 52 | BRACKET | 4339373 | 1 |
| 53 | BOLT SEMS | J090820 | 1 |
| 53 | BOLT SEMS | J260820 | 1 |
| 53 | BOLT SEMS | J260820 | 1 |
| 54 | DRYER | 4413064 | 1 |
| 55 | PLATE | 4400817 | 1 |
| 56 | BOLT SEMS | J090870 | 2 |
| 56 | BOLT SEMS | J260870 | 2 |
| 56 | BOLT SEMS | J260870 | 2 |
| 68 | BRACKET | 9759095 | 1 |
| 69 | BRACKET | 4477875 | 1 |
| 70 | BOLT SEMS | J090825 | 4 |
| 70 | BOLT SEMS | J260825 | 4 |
| 70 | BOLT SEMS | J260825 | 4 |
| 71 | BOLT SEMS | J090820 | 4 |
| 71 | BOLT SEMS | J260820 | 4 |
| 71 | BOLT SEMS | J260820 | 4 |
| 73 | BUSHING RUBBER | 4349711 | 1 |
| 78 | COVER | 4489106 | 1 |
| 79 | COVER | 4489107 | 1 |
| 80 | COVER | 4489108 | 1 |
| 82 | RUBBER | 4600994 | 2 |
| 83 | RUBBER | 4600995 | 1 |
| 84 | RUBBER | 4600996 | 2 |
| 85 | RUBBER | 4600997 | 2 |
