Кондиционер (2-1) — HITACHI ZX40U

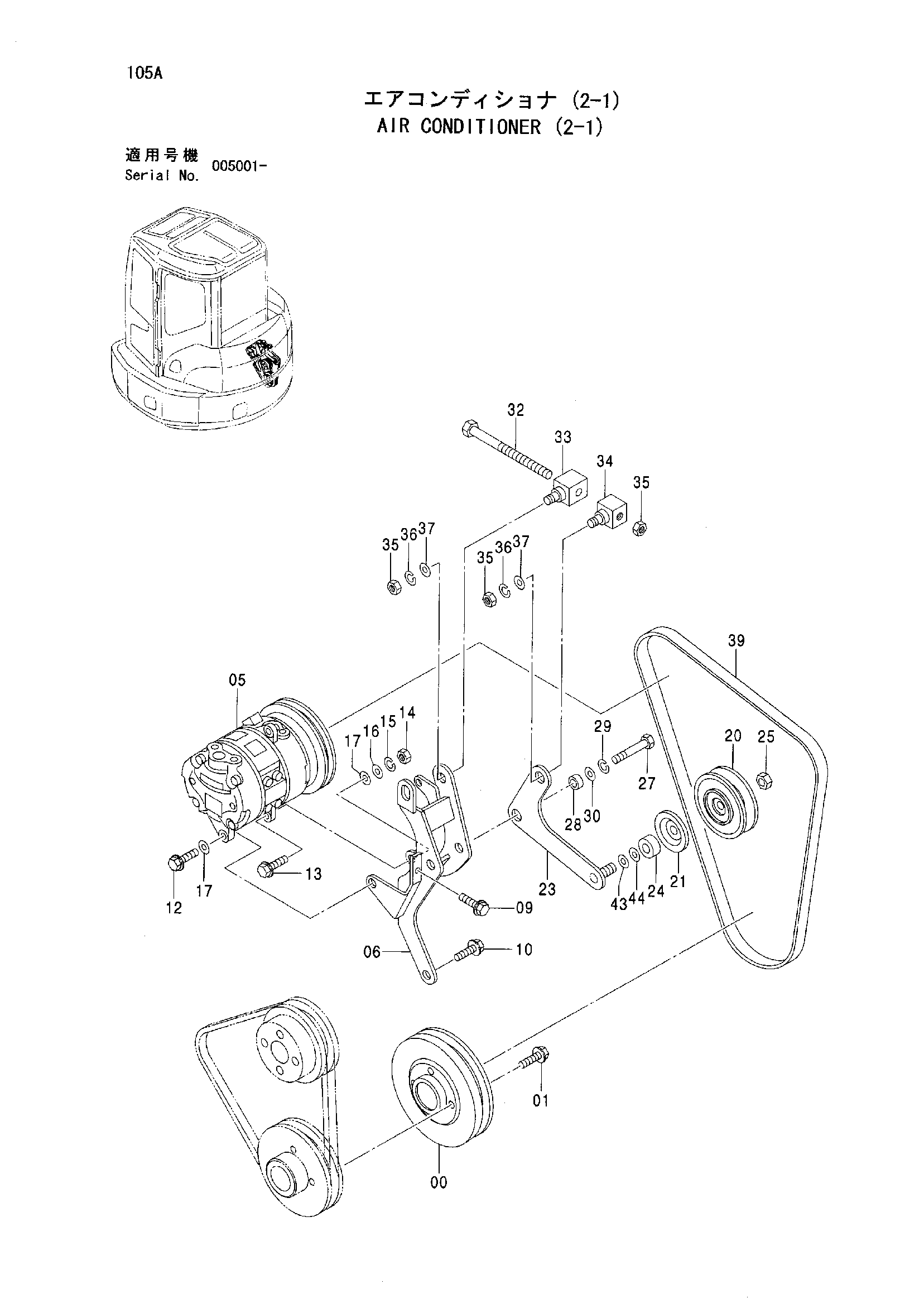

Схема и каталожные номера деталей узла «Кондиционер (2-1)» для экскаватора HITACHI ZX40U.
Схема узла
Каталожные номера
| Позиция | Наименование | Каталожный номер | Кол. |
|---|---|---|---|
| 00 | PULLEY | 3079737 | 1 |
| 01 | BOLT SEMS | J080830 | 4 |
| 01 | BOLT SEMS | J260830 | 4 |
| 01 | BOLT SEMS | J260830 | 4 |
| 05 | COMPRESSOR | 4413062 | 1 |
| 05 | COMPRESSOR | 4603724 | 1 |
| 06 | BRACKET | 7042111 | 1 |
| 06 | BRACKET | 7042111 | 1 |
| 06 | BRACKET | 7045075 | 1 |
| 09 | BOLT SEMS | J090820 | 1 |
| 09 | BOLT SEMS | J260820 | 1 |
| 09 | BOLT SEMS | J260820 | 1 |
| 10 | BOLT SEMS | J090825 | 1 |
| 10 | BOLT SEMS | J260825 | 1 |
| 10 | BOLT SEMS | J260825 | 1 |
| 12 | BOLT SEMS | J080825 | 2 |
| 12 | BOLT SEMS | J260825 | 2 |
| 12 | BOLT SEMS | J260825 | 2 |
| 13 | BOLT SEMS | J090840 | 1 |
| 13 | BOLT SEMS | J260840 | 1 |
| 13 | BOLT SEMS | J260840 | 1 |
| 14 | NUT | J231108 | 1 |
| 14 | NUT | M500807 | 1 |
| 15 | WASHER SPRING | J252108 | 1 |
| 15 | WASHER SPRING | A590908 | 1 |
| 16 | WASHER PLANE | J253108 | 1 |
| 16 | WASHER PLANE | A590108 | 1 |
| 17 | SHIM 0.5 | 4368122 | 8 |
| 20 | PULLEY TENSION | 4323112 | 1 |
| 21 | COVER | 4323111 | 1 |
| 23 | ARM TENTION | 9746332 | 1 |
| 24 | COLLAR | 4381016 | 1 |
| 24 | COLLAR | 4619623 | 1 |
| 25 | NUT | J231210 | 1 |
| 25 | NUT | J950010 | 1 |
| 27 | BOLT | 4382926 | 1 |
| 28 | COLLAR | 4366570 | 1 |
| 29 | WASHER SPRING | J252108 | 1 |
| 29 | WASHER SPRING | A590908 | 1 |
| 30 | WASHER | J254008 | 1 |
| 30 | WASHER | J222008 | 1 |
| 30 | WASHER | 4338215 | 1 |
| 32 | BOLT | 4380103 | 1 |
| 33 | SHAFT | 4380351 | 1 |
| 34 | SHAFT | 4322646 | 1 |
| 35 | NUT | J231210 | 3 |
| 35 | NUT | J950010 | 3 |
| 36 | WASHER SPRING | J252210 | 2 |
| 36 | WASHER SPRING | A590910 | 2 |
| 37 | WASHER PLANE | J253110 | 2 |
| 37 | WASHER PLANE | A590110 | 2 |
| 39 | BELT V | 4392985 | 1 |
| 43 | WASHER | J217083 | 1 |
| 44 | SHIM | 4619815 | 1 |
