Электрооборудование (2) — HITACHI ZX40U
Схема и каталожные номера деталей узла «Электрооборудование (2)» для экскаватора HITACHI ZX40U.

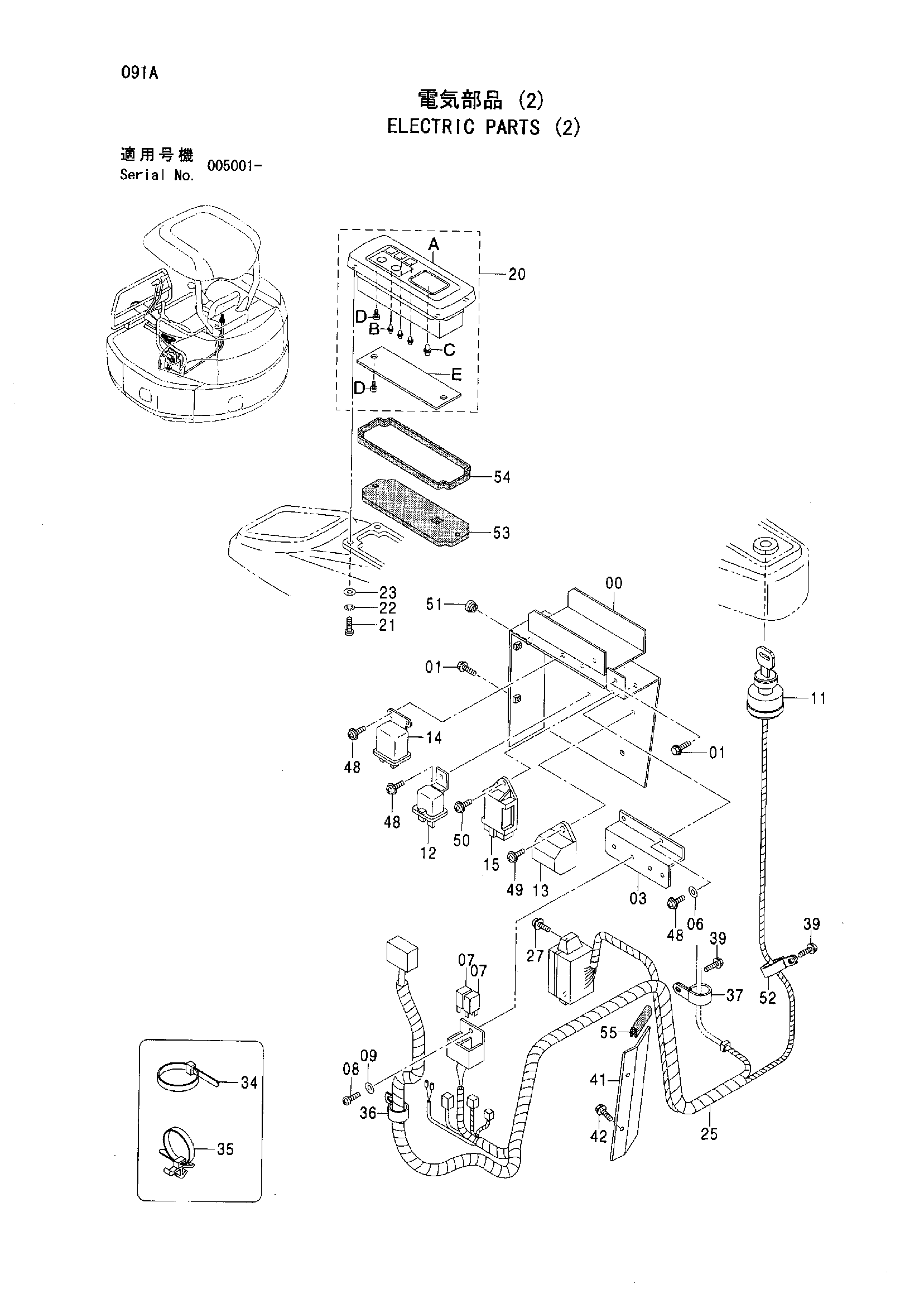

Схема узла
Каталожные номера
| Позиция | Наименование | Каталожный номер | Кол. |
|---|---|---|---|
| 00 | BOX RELAY | 8082604 | 1 |
| 01 | BOLT SEMS | J090820 | 3 |
| 01 | BOLT SEMS | J260820 | 3 |
| 01 | BOLT SEMS | J260820 | 3 |
| 03 | BRACKET | 8076843 | 1 |
| 06 | WASHER PLANE | J253106 | 2 |
| 06 | WASHER PLANE | A590106 | 2 |
| 07 | RELAY | 4394590 | 2 |
| 08 | SCREW | J691512 | 1 |
| 09 | WASHER PLANE | J253105 | 1 |
| 09 | WASHER PLANE | A590105 | 1 |
| 11 | SWITCH START | В составе узла | 1 |
| 12 | RELAY | 4288451 | 1 |
| 13 | RELAY SAFETY | 4484741 | 1 |
| 14 | RELAY | 4355584 | 1 |
| 15 | TIMER | 4468774 | 1 |
| 20 | PANEL GAUGE | 4403739 | 1 |
| 20A | HOOD | 4449185 | 1 |
| 20B | BULB | 4449186 | 3 |
| 20C | BULB | 4449187 | 1 |
| 20D | SCREW TAPPING | 4449188 | 6 |
| 20E | CASE | 4449189 | 1 |
| 21 | SCREW | J691612 | 4 |
| 22 | WASHER SPRING | J252106 | 4 |
| 22 | WASHER SPRING | A590906 | 4 |
| 23 | WASHER PLANE | J253106 | 4 |
| 23 | WASHER PLANE | A590106 | 4 |
| 25 | HARNESS WIRE | 1030260 | 1 |
| 27 | SCREW SEMS | J680620 | 2 |
| 34 | CLIP BAND | 4055312 | 10 |
| 34 | CLIP BAND | 4055312 | 11 |
| 35 | CLIP | 4254600 | 5 |
| 36 | CLIP | 4190277 | 1 |
| 36 | CLIP | 4190264 | 1 |
| 37 | CLIP | 4190261 | 1 |
| 39 | BOLT SEMS | J090820 | 2 |
| 39 | BOLT SEMS | J260820 | 2 |
| 39 | BOLT SEMS | J260820 | 2 |
| 41 | COVER | 4449180 | 1 |
| 42 | BOLT SEMS | J090820 | 2 |
| 42 | BOLT SEMS | J260820 | 2 |
| 42 | BOLT SEMS | J260820 | 2 |
| 48 | SCREW SEMS | J670614 | 5 |
| 49 | SCREW SEMS | J680616 | 1 |
| 50 | SCREW SEMS | J680620 | 1 |
| 51 | BUSHING RUBBER | 4236262 | 1 |
| 52 | CLIP | 4190253 | 1 |
| 53 | RUBBER | 4477252 | 1 |
| 54 | RUBBER | 4477251 | 1 |
| 55 | CUSHION | 4399148 | 1 |
