Электрооборудование (1-4) — HITACHI ZX40U
Схема и каталожные номера деталей узла «Электрооборудование (1-4)» для экскаватора HITACHI ZX40U.

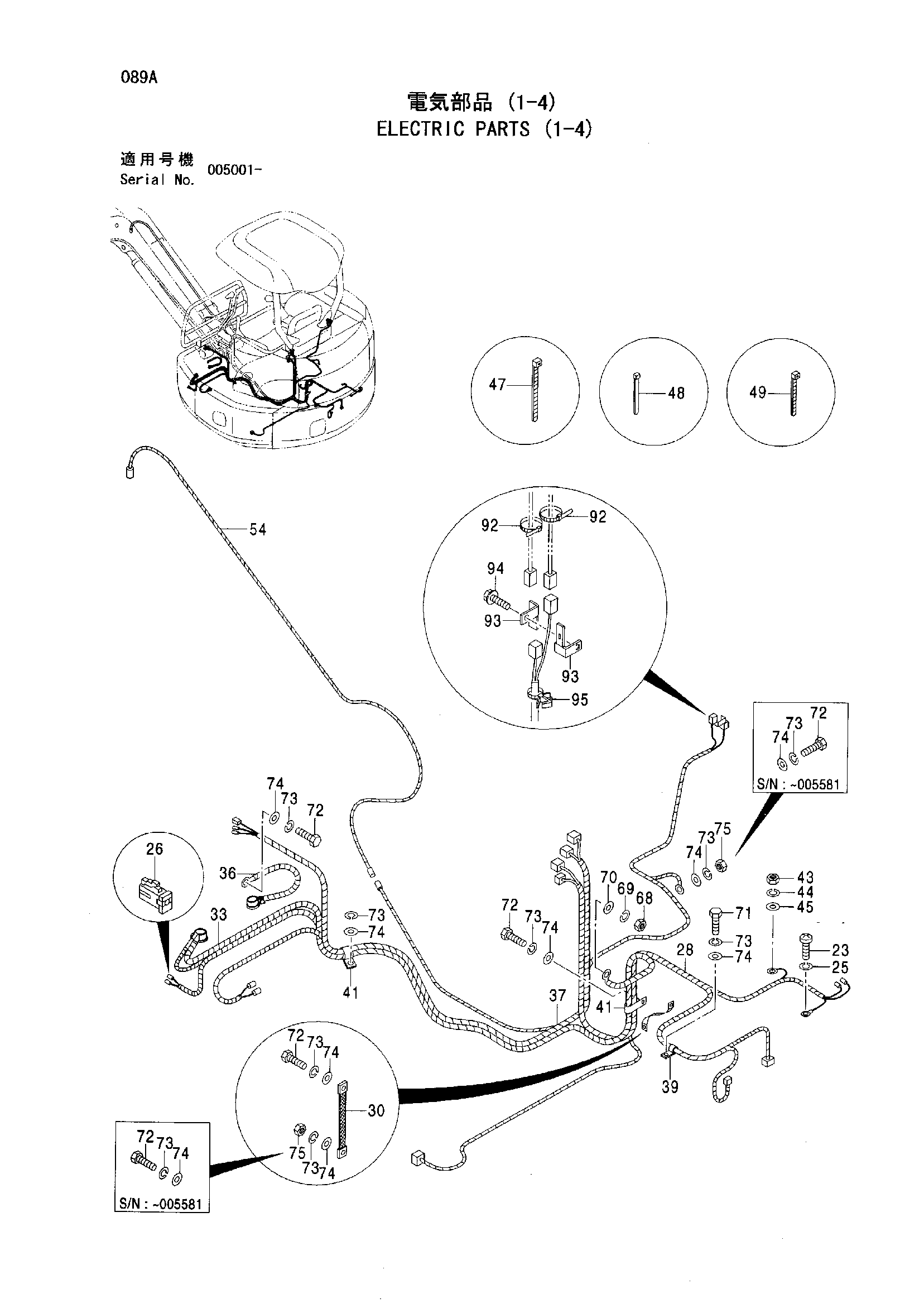

Схема узла
Каталожные номера
| Позиция | Наименование | Каталожный номер | Кол. |
|---|---|---|---|
| 23 | SCREW | J691416 | 1 |
| 25 | WASHER SPRING | J252104 | 1 |
| 25 | WASHER SPRING | A590904 | 1 |
| 26 | FUSIBLE-LINK | 4414201 | 2 |
| 28 | HARNESS WIRE | 3094555 | 1 |
| 30 | HARNESS WIRE | 4372789 | 1 |
| 30 | EARTH CORD | 4287366 | 1 |
| 33 | CABLE | 4392494 | 1 |
| 36 | CABLE | 4409658 | 1 |
| 37 | HARNESS WIRE | 3094537 | 1 |
| 39 | CLIP | 4190261 | 1 |
| 41 | CLIP | 4190282 | 2 |
| 43 | NUT | J231106 | 1 |
| 43 | NUT | M500605 | 1 |
| 44 | WASHER SPRING | J252106 | 1 |
| 44 | WASHER SPRING | A590906 | 1 |
| 45 | WASHER PLANE | J253106 | 1 |
| 45 | WASHER PLANE | A590106 | 1 |
| 47 | CLIP BAND | 4055312 | 21 |
| 48 | CLIP BAND | 4326365 | 9 |
| 49 | CLIP BAND | 4055311 | 6 |
| 54 | HARNESS WIRE | 4478968 | 1 |
| 68 | NUT | J231108 | 1 |
| 68 | NUT | M500807 | 1 |
| 69 | WASHER SPRING | J252108 | 1 |
| 69 | WASHER SPRING | A590908 | 1 |
| 70 | WASHER PLANE | J253108 | 1 |
| 70 | WASHER PLANE | A590108 | 1 |
| 71 | BOLT | J971016 | 1 |
| 71 | BOLT | J901016 | 1 |
| 72 | BOLT | J971020 | 5 |
| 72 | BOLT | J971020 | 3 |
| 72 | BOLT | J901020 | 3 |
| 73 | WASHER SPRING | J252210 | 7 |
| 73 | WASHER SPRING | A590910 | 7 |
| 74 | WASHER PLANE | J253110 | 7 |
| 74 | WASHER PLANE | A590110 | 7 |
| 75 | NUT | J231210 | 2 |
| 75 | NUT | J950010 | 2 |
| 92 | CLIP BAND | 4121859 | 2 |
| 93 | BRACKET | 4257159 | 2 |
| 94 | BOLT SEMS | J090820 | 1 |
| 94 | BOLT SEMS | J260820 | 1 |
| 94 | BOLT SEMS | J260820 | 1 |
| 95 | CLIP | 4254600 | 1 |
