Пилотные гидролинии (1-1) — HITACHI ZX40U
Схема и каталожные номера деталей узла «Пилотные гидролинии (1-1)» для экскаватора HITACHI ZX40U.

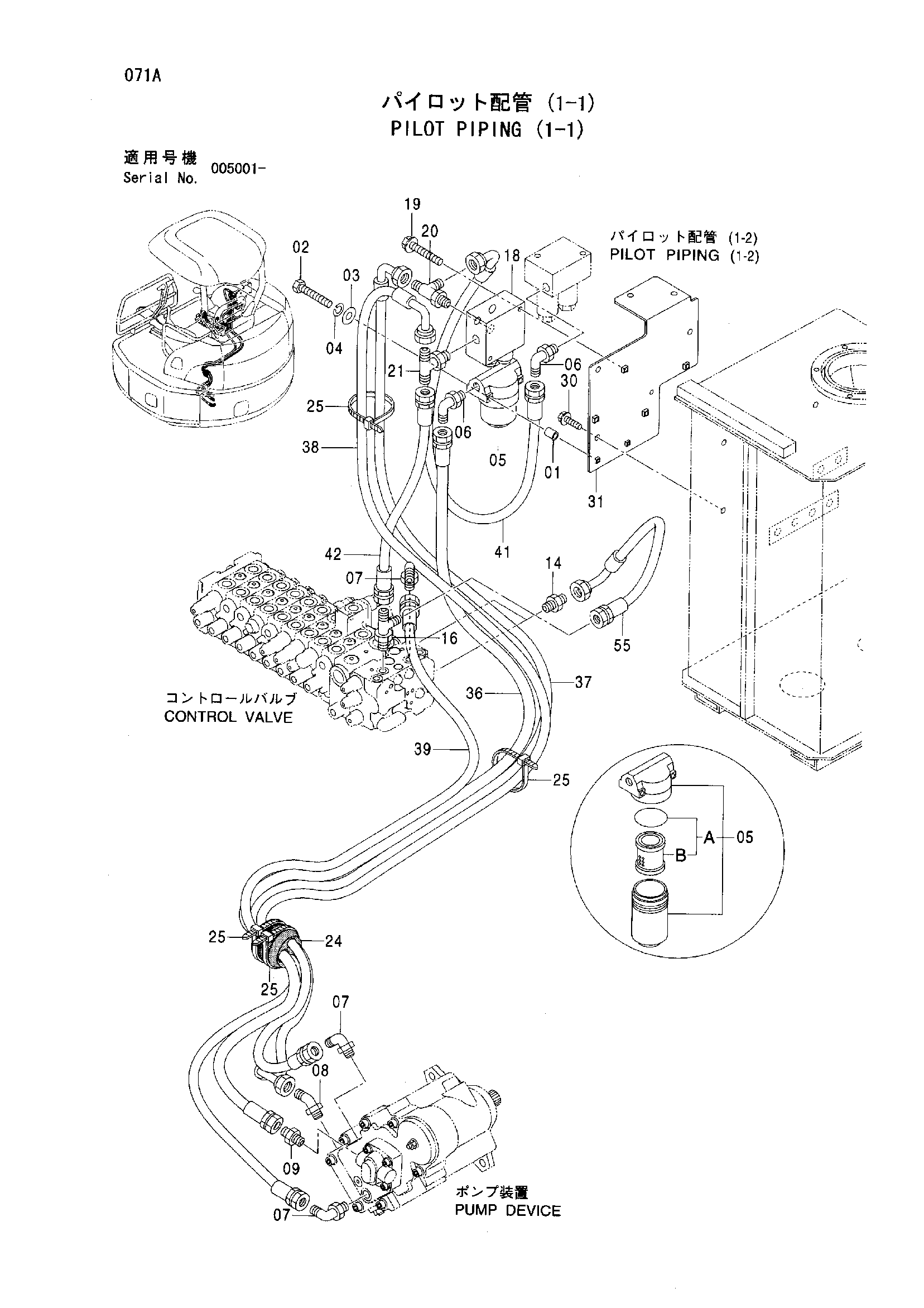

Схема узла
Каталожные номера
| Позиция | Наименование | Каталожный номер | Кол. |
|---|---|---|---|
| 01 | SPACER | 4277425 | 2 |
| 02 | BOLT | J960680 | 2 |
| 02 | BOLT | J900680 | 2 |
| 03 | WASHER PLANE | J253106 | 2 |
| 03 | WASHER PLANE | A590106 | 2 |
| 04 | WASHER SPRING | J252106 | 2 |
| 04 | WASHER SPRING | A590906 | 2 |
| 05 | FILTER OIL | 4457683 | 1 |
| 05A | ELEMENT FILTER | 4294130 | 1 |
| 05B | ELEMENT FILTER | 4294129 | 1 |
| 06 | ELBOW S | 4434982 | 2 |
| 06A | O-RING | 4509180 | 1 |
| 07 | ELBOW S | 4434981 | 3 |
| 07A | O-RING | 957366 | 1 |
| 08 | ELBOW S | 4108100 | 1 |
| 08A | O-RING | 957366 | 1 |
| 09 | ADAPTER | 4042031 | 1 |
| 09A | O-RING | 4509180 | 1 |
| 14 | ADAPTER | 4042030 | 1 |
| 14A | O-RING | 957366 | 1 |
| 16 | TEE S | 4406156 | 1 |
| 16A | O-RING | 957366 | 1 |
| 18 | VALVE | 4435702 | 1 |
| 18 | VALVE | 4613450 | 1 |
| 19 | BOLT SEMS | J090870 | 2 |
| 19 | BOLT SEMS | J260870 | 2 |
| 19 | BOLT SEMS | J260870 | 2 |
| 20 | TEE S | 4368225 | 1 |
| 20A | O-RING | 4509180 | 1 |
| 21 | TEE S | 4368218 | 1 |
| 21A | O-RING | 957366 | 1 |
| 24 | BUSHING RUBBER | 4469535 | 1 |
| 25 | CLIP BAND | 4055312 | 4 |
| 30 | BOLT SEMS | J090820 | 3 |
| 30 | BOLT SEMS | J260820 | 3 |
| 30 | BOLT SEMS | J260820 | 3 |
| 31 | BRACKET | 8087186 | 1 |
| 36 | HOSE | 4474931 | 1 |
| 37 | HOSE | 4474932 | 1 |
| 38 | HOSE | 4474933 | 1 |
| 39 | HOSE | 4474934 | 1 |
| 41 | HOSE | 4474936 | 1 |
| 42 | HOSE | 4474937 | 1 |
| 55 | HOSE | 4479334 | 1 |
