Гидролинии рычага отвала PAT (2) — HITACHI ZX40U
Схема и каталожные номера деталей узла «Гидролинии рычага отвала PAT (2)» для экскаватора HITACHI ZX40U.

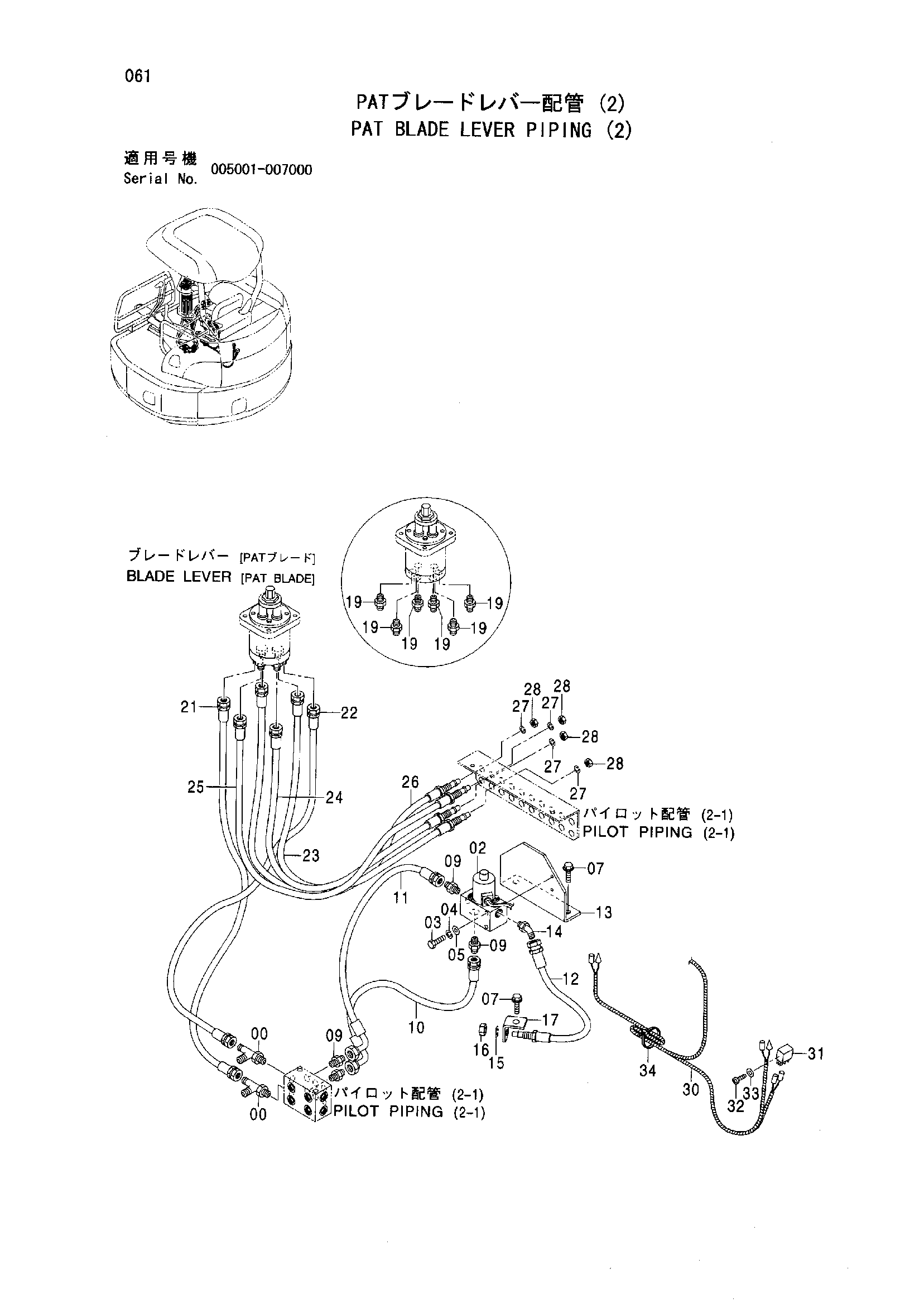

Схема узла
Каталожные номера
| Позиция | Наименование | Каталожный номер | Кол. |
|---|---|---|---|
| 00 | TEE S | 4406156 | 2 |
| 00A | O-RING | 957366 | 1 |
| 02 | VALVE SOLENOID | 4411189 | 1 |
| 03 | BOLT | J900655 | 2 |
| 04 | WASHER SPRING | A590906 | 2 |
| 05 | WASHER PLANE | A590106 | 2 |
| 07 | BOLT SEMS | J260825 | 3 |
| 07A | BOLT | J900825 | 1 |
| 07B | WASHER PLANE | A590108 | 1 |
| 09 | ADAPTER | 4042030 | 4 |
| 09A | O-RING | 957366 | 1 |
| 10 | HOSE | 4485324 | 1 |
| 11 | HOSE | 4485323 | 1 |
| 12 | HOSE | 4485322 | 1 |
| 13 | BRACKET | 9760162 | 1 |
| 14 | ELBOW S | 4108100 | 1 |
| 14A | O-RING | 957366 | 1 |
| 15 | WASHER SPRING | A590912 | 1 |
| 16 | NUT | J950012 | 1 |
| 17 | BRACKET | 9759471 | 1 |
| 19 | ADAPTER | 4042030 | 6 |
| 19A | O-RING | 957366 | 1 |
| 21 | HOSE | 4485325 | 1 |
| 22 | HOSE | 4485326 | 1 |
| 23 | HOSE | 4485327 | 1 |
| 24 | HOSE | 4485328 | 1 |
| 25 | HOSE | 4485329 | 1 |
| 26 | HOSE | 4485330 | 1 |
| 27 | WASHER SPRING | A590912 | 4 |
| 28 | NUT | J950012 | 4 |
| 30 | HARNESS WIRE | 3096168 | 1 |
| 31 | RELAY | 4394590 | 1 |
| 32 | SCREW | J691512 | 1 |
| 33 | WASHER PLANE | A590105 | 1 |
| 34 | CLIP BAND | 4055312 | 1 |
