Рычаги хода (2) — HITACHI ZX40U
Схема и каталожные номера деталей узла «Рычаги хода (2)» для экскаватора HITACHI ZX40U.

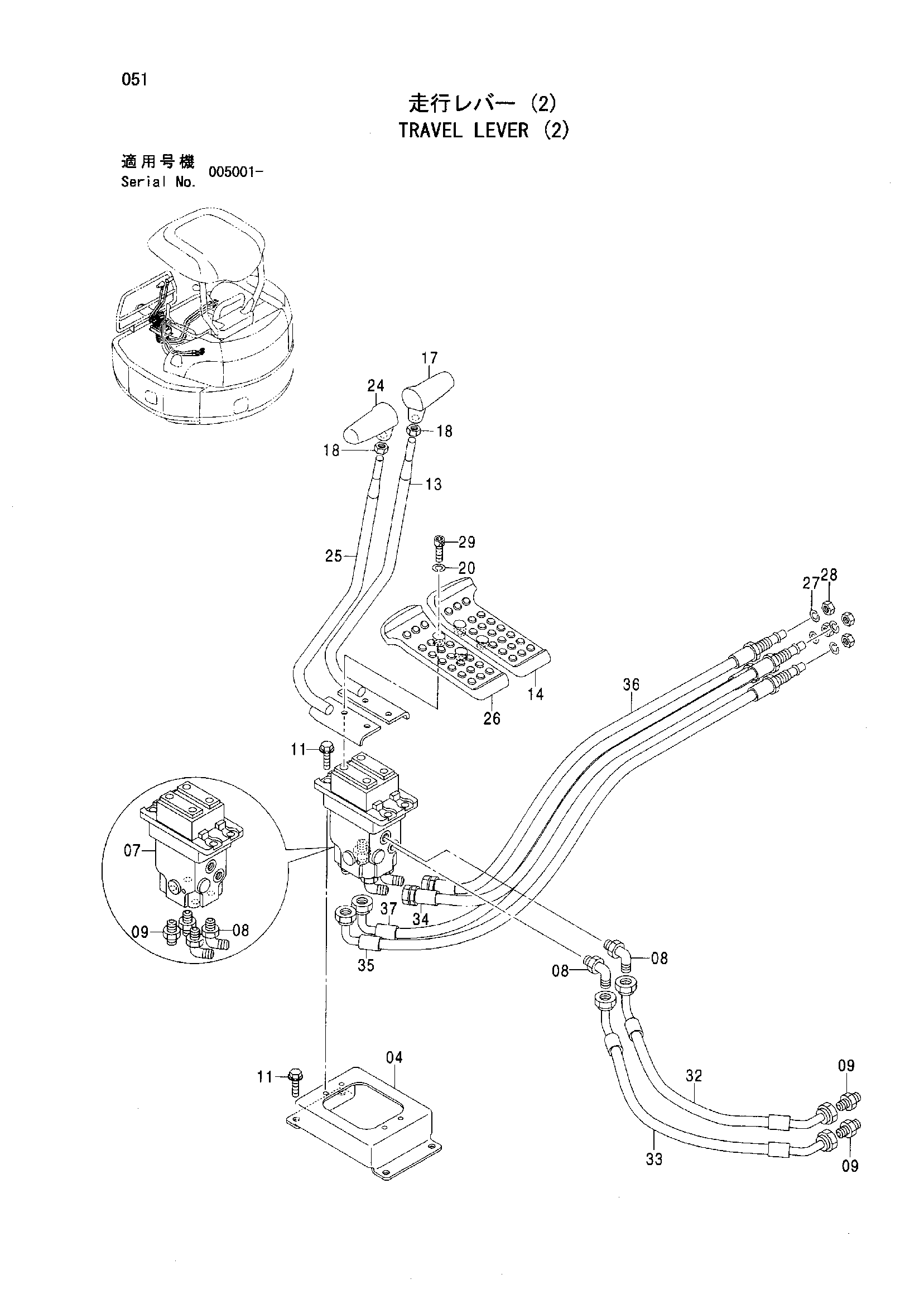

Схема узла
Каталожные номера
| Позиция | Наименование | Каталожный номер | Кол. |
|---|---|---|---|
| 04 | BRACKET | 8088514 | 1 |
| 07 | VALVE PILOT | 4467243 | 1 |
| 08 | ELBOW S | 4434981 | 4 |
| 08A | O-RING | 957366 | 1 |
| 09 | ADAPTER | 4042030 | 4 |
| 09A | O-RING | 957366 | 1 |
| 11 | BOLT SEMS | J090825 | 8 |
| 11 | BOLT SEMS | J260825 | 8 |
| 11 | BOLT SEMS | J260825 | 8 |
| 13 | LEVER | 8088394 | 1 |
| 14 | PEDAL | 1030519 | 1 |
| 17 | GRIP | 2045468 | 1 |
| 17 | GRIP | 2051176 | 1 |
| 18 | NUT | 4424185 | 2 |
| 20 | WASHER SPRING | J252108 | 4 |
| 20 | WASHER SPRING | A590908 | 4 |
| 24 | GRIP | 2045469 | 1 |
| 24 | GRIP | 2051177 | 1 |
| 25 | LEVER | 8085214 | 1 |
| 26 | PEDAL | 1030516 | 1 |
| 27 | WASHER SPRING | J252212 | 4 |
| 27 | WASHER SPRING | A590912 | 4 |
| 28 | NUT | J231212 | 4 |
| 28 | NUT | J950012 | 4 |
| 29 | BOLT SOCKET | J770820 | 4 |
| 29 | BOLT SOCKET | J780820 | 4 |
| 32 | HOSE | 4474976 | 1 |
| 33 | HOSE | 4474977 | 1 |
| 34 | HOSE | 4474978 | 1 |
| 35 | HOSE | 4474979 | 1 |
| 36 | HOSE | 4474980 | 1 |
| 37 | HOSE | 4474981 | 1 |
