Автоматический холостой ход — HITACHI ZX40U
Схема и каталожные номера деталей узла «Автоматический холостой ход» для экскаватора HITACHI ZX40U.

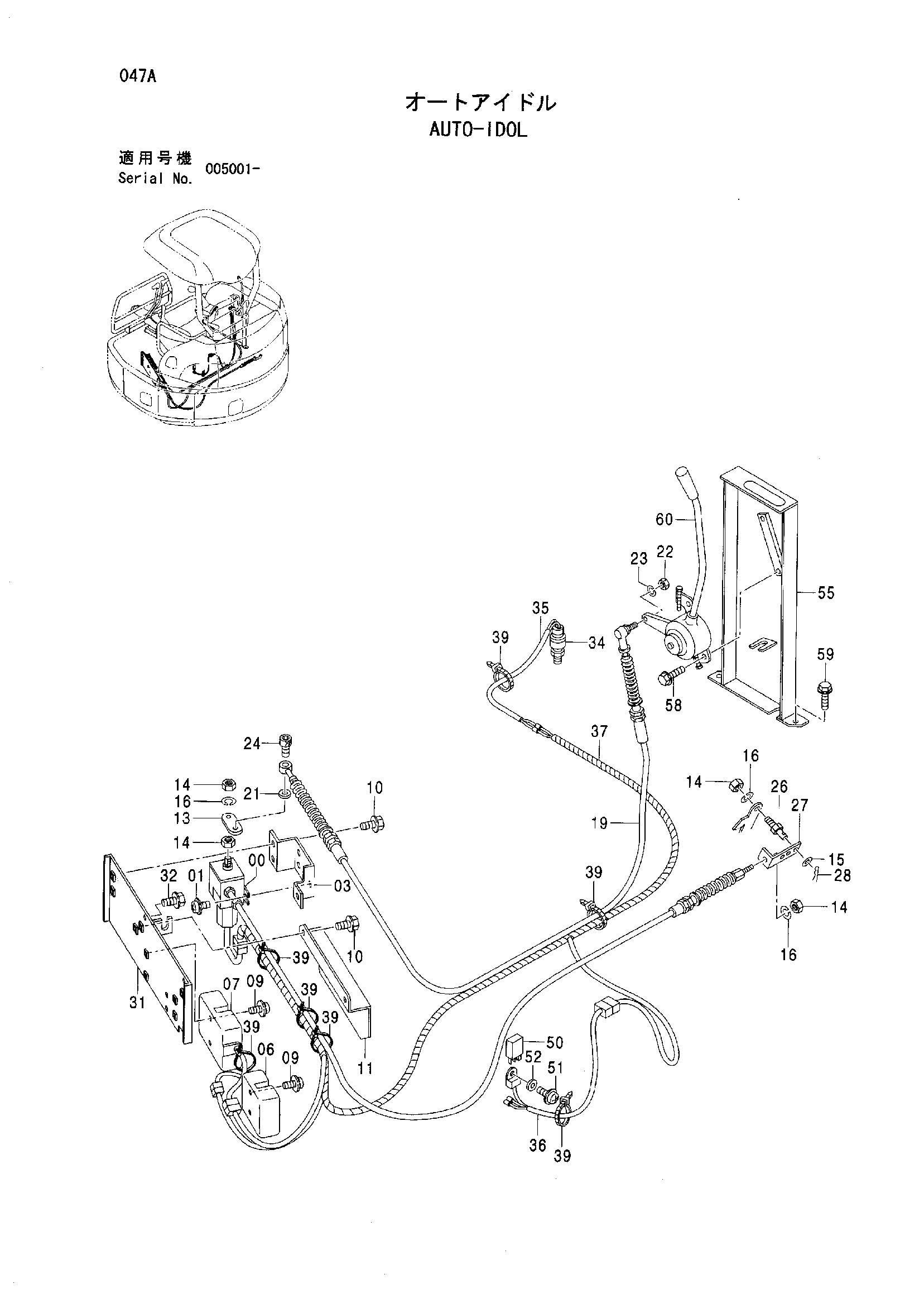

Схема узла
Каталожные номера
| Позиция | Наименование | Каталожный номер | Кол. |
|---|---|---|---|
| 00 | ACTUATOR | 4394175 | 1 |
| 01 | SCREW SEMS | J680616 | 3 |
| 03 | BRACKET | 9759207 | 1 |
| 06 | UNIT TIMER | 4289621 | 1 |
| 07 | CONTROLLER | 4334164 | 1 |
| 09 | SCREW SEMS | J680625 | 4 |
| 10 | BOLT SEMS | J050820 | 5 |
| 10 | BOLT SEMS | J260820 | 5 |
| 10 | BOLT SEMS | J260820 | 5 |
| 11 | COVER | 9759208 | 1 |
| 13 | LEVER | 9749159 | 1 |
| 14 | NUT | J231106 | 4 |
| 14 | NUT | M500605 | 4 |
| 15 | WASHER PLANE | J253106 | 1 |
| 15 | WASHER PLANE | A590106 | 1 |
| 16 | WASHER SPRING | J252106 | 3 |
| 16 | WASHER SPRING | A590906 | 3 |
| 19 | CABLE CONTROL | 4394144 | 1 |
| 21 | WASHER PLANE | J253105 | 1 |
| 21 | WASHER PLANE | A590105 | 1 |
| 22 | NUT | J231105 | 1 |
| 22 | NUT | M500504 | 1 |
| 23 | WASHER SPRING | J252105 | 1 |
| 23 | WASHER SPRING | A590905 | 1 |
| 24 | BOLT SOCKET | J770520 | 1 |
| 24 | BOLT SOCKET | J780520 | 1 |
| 26 | PIN | 4386824 | 1 |
| 27 | BRACKET | 4394308 | 1 |
| 28 | PIN LOCK | 4022696 | 1 |
| 31 | BRACKET | 8085905 | 1 |
| 32 | BOLT SEMS | J090820 | 2 |
| 32 | BOLT SEMS | J260820 | 2 |
| 32 | BOLT SEMS | J260820 | 2 |
| 34 | SWITCH | 4380677 | 1 |
| 34A | O-RING | 957366 | 1 |
| 35 | HARNESS WIRE | 4428896 | 1 |
| 36 | HARNESS WIRE | 4469752 | 1 |
| 37 | HARNESS WIRE | 3094603 | 1 |
| 39 | CLIP BAND | 4055312 | 5 |
| 39 | CLIP BAND | 4055312 | 7 |
| 50 | RELAY | 4394590 | 1 |
| 51 | SCREW | J691512 | 1 |
| 52 | WASHER PLANE | J253105 | 1 |
| 52 | WASHER PLANE | A590105 | 1 |
| 55 | BRACKET | 7041915 | 1 |
| 58 | BOLT SEMS | J080825 | 2 |
| 58 | BOLT SEMS | J260825 | 2 |
| 58 | BOLT SEMS | J260825 | 2 |
| 59 | BOLT SEMS | J051025 | 4 |
| 59 | BOLT SEMS | J271025 | 4 |
| 59 | BOLT SEMS | J271025 | 4 |
| 60 | LEVER | 4325764 | 1 |
