Трубопроводы масляного радиатора (1-2) — HITACHI ZX40U
Схема и каталожные номера деталей узла «Трубопроводы масляного радиатора (1-2)» для экскаватора HITACHI ZX40U.

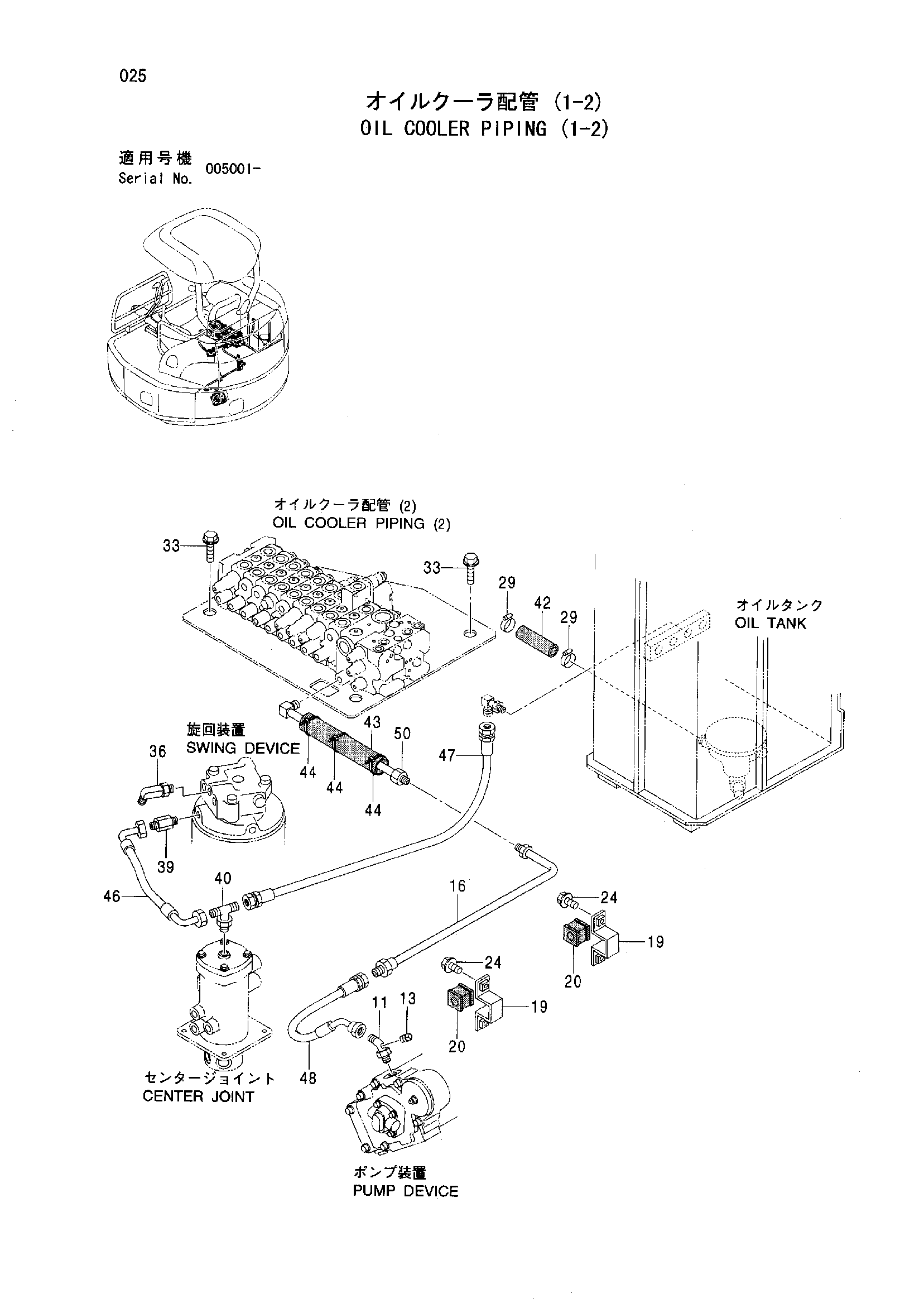

Схема узла
Каталожные номера
| Позиция | Наименование | Каталожный номер | Кол. |
|---|---|---|---|
| 11 | ELBOW S | 4430200 | 1 |
| 11A | O-RING | 4506424 | 1 |
| 13 | PLUG | 94-2021 | 1 |
| 16 | PIPE | 9758559 | 1 |
| 19 | CLAMP | 9758172 | 2 |
| 20 | BUSHING RUBBER | 4469323 | 2 |
| 24 | BOLT SEMS | J090825 | 4 |
| 24 | BOLT SEMS | J260825 | 4 |
| 24 | BOLT SEMS | J260825 | 4 |
| 29 | CLAMP HOSE | 4505243 | 2 |
| 33 | BOLT SEMS | J061050 | 4 |
| 33 | BOLT SEMS | J281050 | 4 |
| 33 | BOLT SEMS | J281050 | 4 |
| 36 | ELBOW S | 4368216 | 1 |
| 36 | ELBOW S | 4162917 | 1 |
| 36A | O-RING | 4509180 | 1 |
| 39 | ADAPTER S | 4368210 | 1 |
| 39A | O-RING | 4509180 | 1 |
| 40 | TEE S | 4406059 | 1 |
| 40A | O-RING | 957366 | 1 |
| 42 | HOSE RUBBER | 4120248 | 1 |
| 43 | TUBE | 4481574 | 1 |
| 44 | CLIP BAND | 4055311 | 3 |
| 46 | HOSE | 4474912 | 1 |
| 47 | HOSE | 4474913 | 1 |
| 48 | HOSE | 4479823 | 1 |
| 50 | HOSE | 4479824 | 1 |
| 50 | HOSE | 4479824 | 1 |
| 50 | HOSE | 4479824 | 1 |
| 50 | HOSE | 4479824 | 1 |
| 50 | HOSE | 4479824 | 1 |
| 50 | HOSE | 4479824 | 1 |
| 50 | HOSE | 4479824 | 1 |
| 50 | HOSE | 4483565 | 1 |
| 50 | HOSE | 4483565 | 1 |
| 50 | HOSE | 4483565 | 1 |
| 50 | HOSE | 4483565 | 1 |
| 50 | HOSE | 4483565 | 1 |
| 50 | HOSE | 4483565 | 1 |
| 50 | HOSE | 4483565 | 1 |
