Гидробак — HITACHI ZX40U
Схема и каталожные номера деталей узла «Гидробак» для экскаватора HITACHI ZX40U.

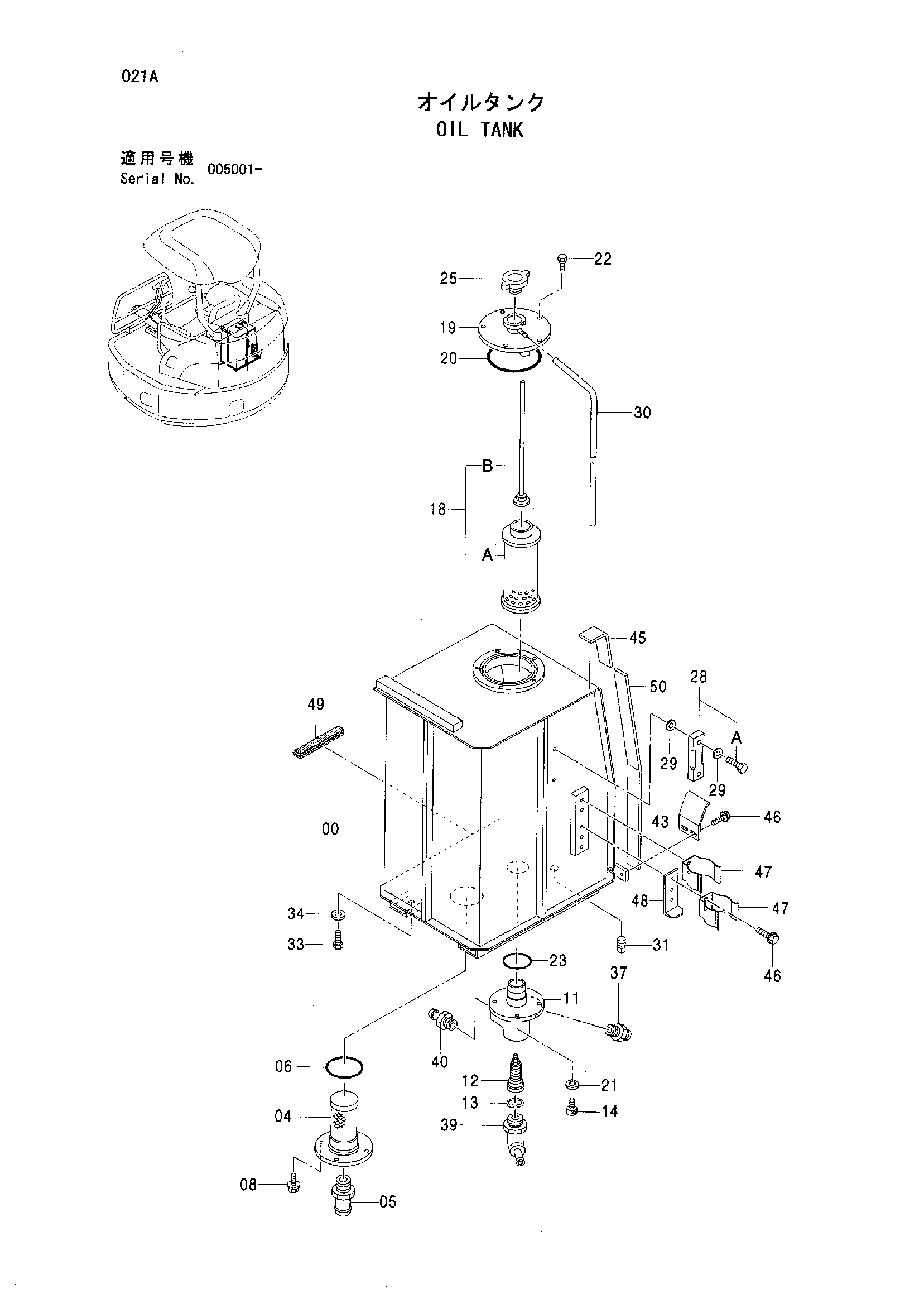

Схема узла
Каталожные номера
| Позиция | Наименование | Каталожный номер | Кол. |
|---|---|---|---|
| 00 | TANK OIL | 6020675 | 1 |
| 04 | FILTER SUCTION | 4339554 | 1 |
| 05 | ADAPTER S | 4300509 | 1 |
| 06 | O-RING | A810085 | 1 |
| 08 | BOLT SEMS | J041025 | 4 |
| 08 | BOLT SEMS | J271025 | 4 |
| 08 | BOLT SEMS | J271025 | 4 |
| 11 | MANIFOLD | 2038091 | 1 |
| 12 | VALVE | 4255212 | 1 |
| 13 | RING RETAINING | 446751 | 1 |
| 14 | BOLT SOCKET | J771020 | 4 |
| 14 | BOLT SOCKET | J781020 | 4 |
| 18 | FILTER RETURN | 4272372 | 1 |
| 18A | ELEMENT FILTER | 4294132 | 1 |
| 18B | ROD | 4294133 | 1 |
| 19 | COVER | 8063384 | 1 |
| 20 | O-RING | A810110 | 1 |
| 21 | WASHER SPRING | J252210 | 4 |
| 21 | WASHER SPRING | A590910 | 4 |
| 22 | BOLT SEMS | J041025 | 5 |
| 22 | BOLT SEMS | J271025 | 5 |
| 22 | BOLT SEMS | J271025 | 5 |
| 23 | O-RING | A810065 | 1 |
| 25 | CAP | 4272375 | 1 |
| 28 | GAUGE LEVEL | 8050296 | 1 |
| 28A | BOLT | 4100967 | 2 |
| 29 | WASHER SEAL | 449558 | 4 |
| 30 | HOSE VINYL | 4378545 | 1 |
| 31 | PLUG | 94-2023 | 1 |
| 33 | BOLT | J971230 | 4 |
| 33 | BOLT | J901230 | 4 |
| 34 | WASHER | J254012 | 4 |
| 34 | WASHER | J222012 | 4 |
| 37 | ADAPTER S | 4129457 | 1 |
| 37A | O-RING | 4506429 | 1 |
| 39 | ELBOW S | 4392020 | 1 |
| 39A | O-RING | 970860 | 1 |
| 40 | ADAPTER S | 4276936 | 1 |
| 40A | O-RING | 4506429 | 1 |
| 43 | PLATE | 4474866 | 1 |
| 45 | SEAT RUBBER | 4482466 | 1 |
| 46 | BOLT SEMS | J090816 | 6 |
| 46 | BOLT SEMS | J260816 | 6 |
| 46 | BOLT SEMS | J260816 | 6 |
| 47 | CLIP | 4307285 | 2 |
| 48 | BRACKET | 4399451 | 1 |
| 49 | CUSHION | 4367966 | 1 |
| 50 | SEAT | 4480000 | 1 |
