Поворотная колонна — HITACHI ZX40U
Схема и каталожные номера деталей узла «Поворотная колонна» для экскаватора HITACHI ZX40U.

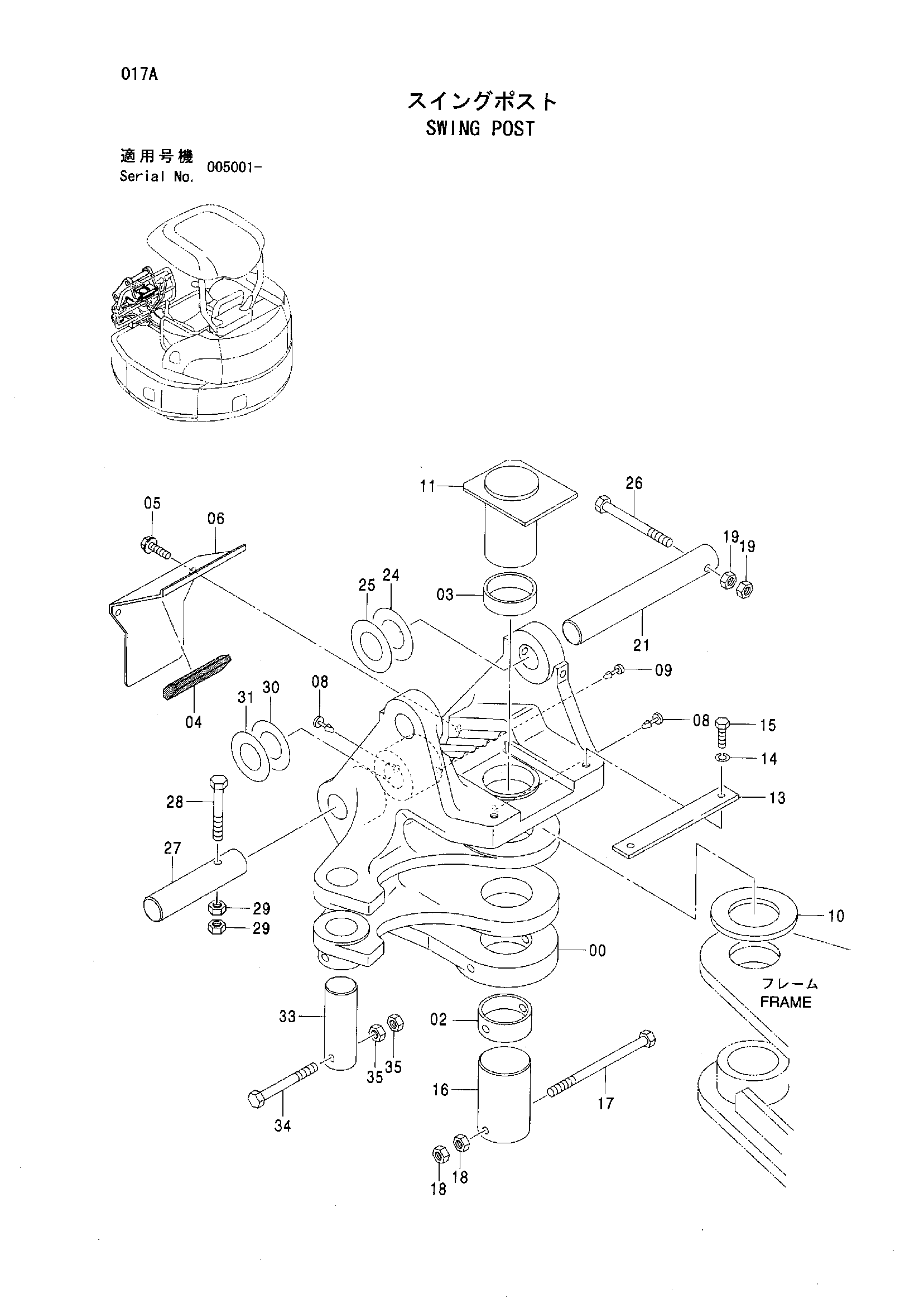

Схема узла
Каталожные номера
| Позиция | Наименование | Каталожный номер | Кол. |
|---|---|---|---|
| 00 | SWINGPOST | 0003182 | 1 |
| 02 | BUSHING | 4403497 | 1 |
| 03 | BUSHING | 4403498 | 1 |
| 04 | BUSHING RUBBER | 4286202 | 1 |
| 05 | BOLT SEMS | J051025 | 2 |
| 05 | BOLT SEMS | J271025 | 2 |
| 05 | BOLT SEMS | J271025 | 2 |
| 06 | CLAMP HOSE | 3074864 | 1 |
| 08 | PLUG | 4288579 | 2 |
| 09 | PLUG | 4361804 | 3 |
| 10 | PLATE THRUST | 4349880 | 1 |
| 11 | PIN | 9745069 | 1 |
| 13 | PLATE | 4392988 | 1 |
| 14 | WASHER SPRING | J252216 | 2 |
| 14 | WASHER SPRING | A590916 | 2 |
| 15 | BOLT | J971630 | 2 |
| 15 | BOLT | J901630 | 2 |
| 16 | PIN | 4355385 | 1 |
| 17 | BOLT | J971617 | 1 |
| 17 | BOLT | J901617 | 1 |
| 18 | NUT | J231216 | 2 |
| 18 | NUT | J950016 | 2 |
| 19 | NUT | J231214 | 2 |
| 19 | NUT | J950014 | 2 |
| 21 | PIN | 4355386 | 1 |
| 24 | SHIM 0.5 | 4353803 | 2 |
| 25 | SHIM 0.8 | 4355599 | 1 |
| 26 | BOLT | 3077156 | 1 |
| 26 | BOLT | 3102503 | 1 |
| 27 | PIN | 4391921 | 1 |
| 28 | BOLT | J971204 | 1 |
| 28 | BOLT | J901204 | 1 |
| 29 | NUT | J231212 | 2 |
| 29 | NUT | J950012 | 2 |
| 30 | SHIM 0.5 | 4355653 | 2 |
| 31 | SHIM 0.8 | 4355659 | 1 |
| 33 | PIN | 4355388 | 1 |
| 34 | BOLT | J971202 | 1 |
| 34 | BOLT | J901202 | 1 |
| 35 | NUT | J231212 | 2 |
| 35 | NUT | J950012 | 2 |
