Топливные трубопроводы — HITACHI ZX40U
Схема и каталожные номера деталей узла «Топливные трубопроводы» для экскаватора HITACHI ZX40U.

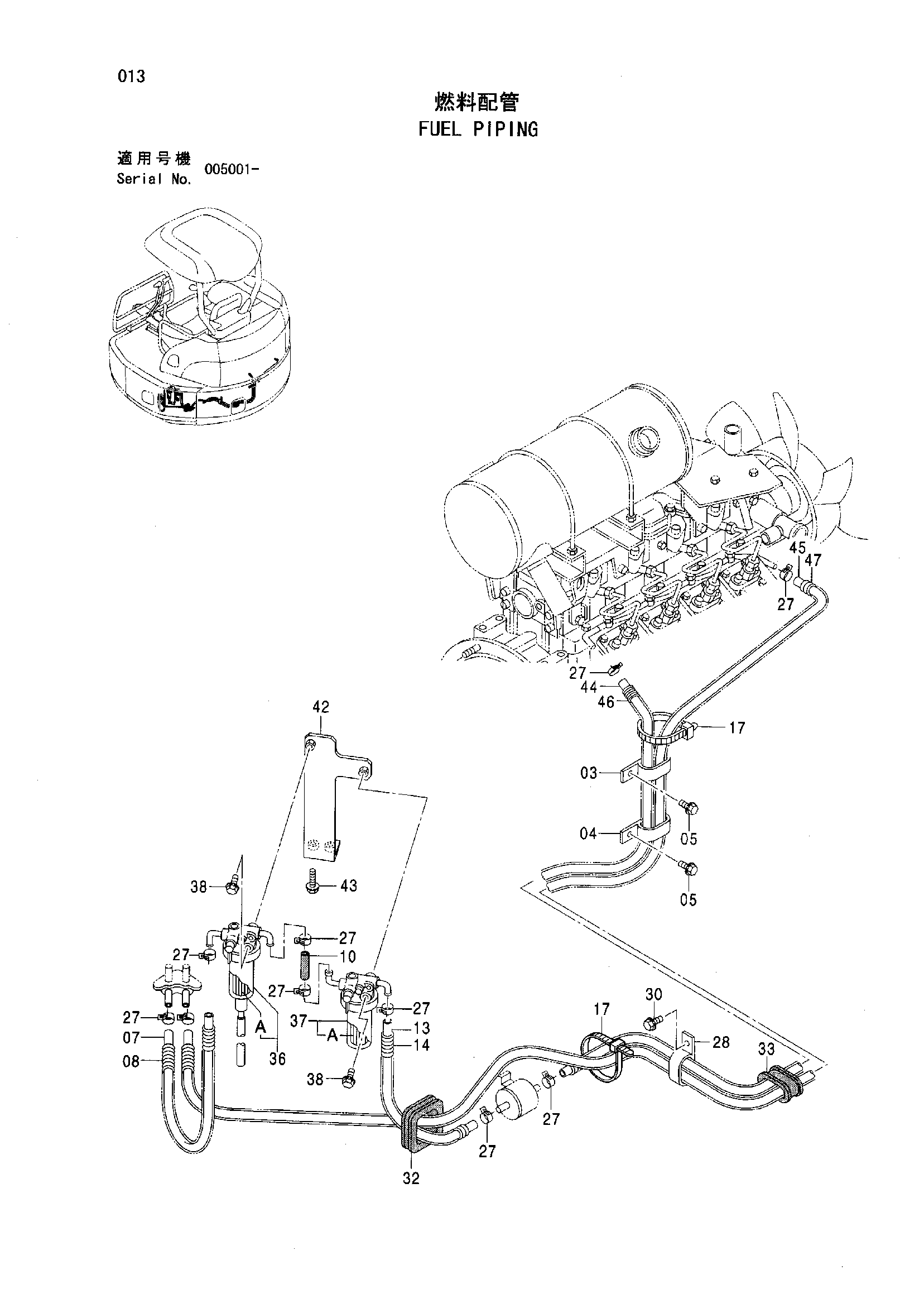

Схема узла
Каталожные номера
| Позиция | Наименование | Каталожный номер | Кол. |
|---|---|---|---|
| 03 | CLIP | 4190291 | 1 |
| 03 | CLIP | 4192034 | 1 |
| 04 | CLIP | 4190291 | 1 |
| 05 | BOLT SEMS | J041016 | 2 |
| 05 | BOLT SEMS | J271016 | 2 |
| 05 | BOLT SEMS | J271016 | 2 |
| 07 | HOSE FUEL | 4383152 | 1 |
| 08 | TUBE | 4400457 | 1 |
| 10 | HOSE FUEL | 4349593 | 1 |
| 13 | HOSE FUEL | 4478723 | 1 |
| 14 | TUBE | 4478722 | 1 |
| 17 | CLIP BAND | 4055312 | 2 |
| 27 | CLAMP HOSE | 4339258 | 10 |
| 28 | CLIP | 4190282 | 1 |
| 30 | BOLT SEMS | J090820 | 1 |
| 30 | BOLT SEMS | J260820 | 1 |
| 30 | BOLT SEMS | J260820 | 1 |
| 32 | BUSHING RUBBER | 4205082 | 1 |
| 33 | BUSHING RUBBER | 4393101 | 1 |
| 36 | FILTER | 4468770 | 1 |
| 36A | KIT ELEMENT | 4484740 | 1 |
| 37 | FILTER FUEL | 4399160 | 1 |
| 37A | KIT ELEMENT | 4454529 | 1 |
| 38 | BOLT SEMS | J090870 | 2 |
| 38 | BOLT SEMS | J260870 | 2 |
| 38 | BOLT SEMS | J260870 | 2 |
| 42 | BRACKET | 8088301 | 1 |
| 43 | BOLT SEMS | J090820 | 2 |
| 43 | BOLT SEMS | J260820 | 2 |
| 43 | BOLT SEMS | J260820 | 2 |
| 44 | HOSE FUEL | 4346564 | 1 |
| 45 | HOSE FUEL | 4346829 | 1 |
| 46 | TUBE | 4346674 | 1 |
| 47 | TUBE | 4468586 | 1 |
