Топливный бак — HITACHI ZX40U
Схема и каталожные номера деталей узла «Топливный бак» для экскаватора HITACHI ZX40U.

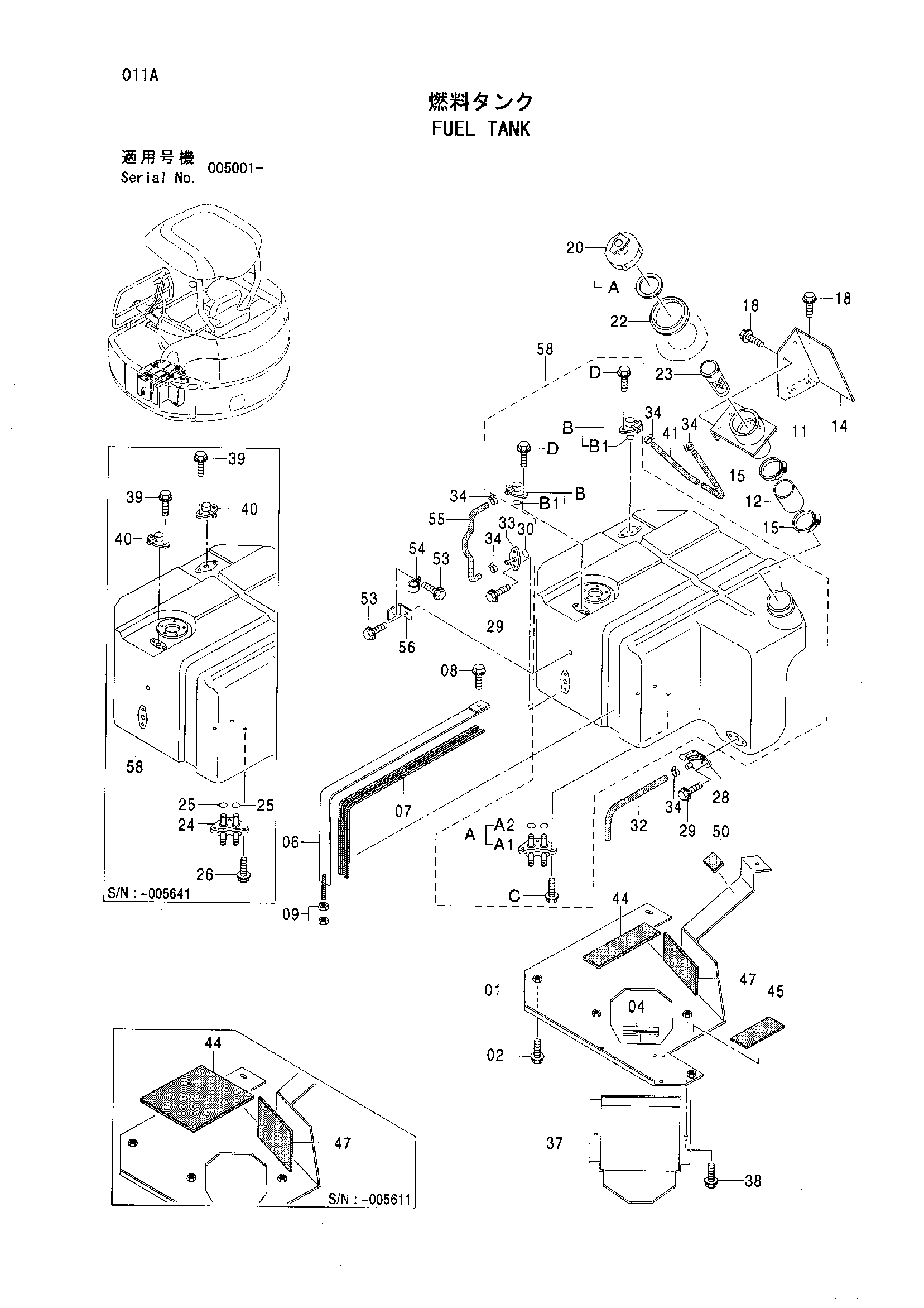

Схема узла
Каталожные номера
| Позиция | Наименование | Каталожный номер | Кол. |
|---|---|---|---|
| 01 | BRACKET | 7041897 | 1 |
| 02 | BOLT SEMS | J051055 | 3 |
| 02 | BOLT SEMS | J271055 | 3 |
| 02 | BOLT SEMS | J271055 | 3 |
| 04 | CUSHION | 4392474 | 1 |
| 06 | BELT | 9748084 | 1 |
| 07 | RUBBER | 4392221 | 1 |
| 08 | BOLT SEMS | J090825 | 1 |
| 08 | BOLT SEMS | J260825 | 1 |
| 08 | BOLT SEMS | J260825 | 1 |
| 09 | NUT | J231210 | 2 |
| 09 | NUT | J950010 | 2 |
| 11 | FILLER | 8087098 | 1 |
| 12 | HOSE FUEL | 4409653 | 1 |
| 14 | BRACKET | 3094423 | 1 |
| 15 | CLAMP HOSE | 4503469 | 2 |
| 18 | BOLT SEMS | J090820 | 4 |
| 18 | BOLT SEMS | J260820 | 4 |
| 18 | BOLT SEMS | J260820 | 4 |
| 20 | CAP | 4363380 | 1 |
| 20A | PACKING | 4460931 | 1 |
| 22 | BOOT | 4392120 | 1 |
| 23 | FILTER | 4279093 | 1 |
| 24 | STRAINER | 4355689 | 1 |
| 25 | O-RING | 4202987 | 2 |
| 26 | SCREW SEMS | J670514 | 3 |
| 28 | COCK | 4358947 | 1 |
| 29 | BOLT SEMS | J090614 | 4 |
| 29 | BOLT SEMS | J260612 | 4 |
| 29 | BOLT SEMS | J260612 | 4 |
| 30 | O-RING | 985100 | 1 |
| 32 | HOSE FUEL | 4418717 | 1 |
| 33 | FLANGE | 9749754 | 1 |
| 34 | CLAMP HOSE | 4351486 | 5 |
| 37 | COVER | 4469261 | 1 |
| 38 | BOLT SEMS | J090820 | 2 |
| 38 | BOLT SEMS | J260820 | 2 |
| 38 | BOLT SEMS | J260820 | 2 |
| 39 | BOLT SEMS | J080616 | 4 |
| 40 | JOINT | 4400756 | 2 |
| 41 | HOSE FUEL | 4402363 | 1 |
| 44 | RUBBER | 4392250 | 1 |
| 44 | RUBBER | 4404057 | 1 |
| 45 | RUBBER | 4392251 | 1 |
| 45 | RUBBER | 4446779 | 1 |
| 47 | RUBBER | 4392515 | 1 |
| 47 | RUBBER | 4402294 | 1 |
| 50 | RUBBER | 4475219 | 1 |
| 53 | BOLT SEMS | J090612 | 2 |
| 53 | BOLT SEMS | J260612 | 2 |
| 53 | BOLT SEMS | J260612 | 2 |
| 54 | CLIP | 4420036 | 1 |
| 55 | TUBE | 4474092 | 1 |
| 56 | BRACKET | 9758877 | 1 |
| 58 | TANK FUEL | 4475220 | 1 |
| 58A | STRAINER | 4608250 | 1 |
| 58A1 | STRAINER | 3100020 | 1 |
| 58A2 | O-RING | 954495 | 2 |
| 58B | JOINT | 4608249 | 2 |
| 58B1 | O-RING | 4202987 | 1 |
| 58C | SCREW SEMS | J680516 | 3 |
| 58D | BOLT SEMS | J260616 | 4 |
| 58D | BOLT SEMS | J260616 | 4 |
