Радиатор — HITACHI ZX40U
Схема и каталожные номера деталей узла «Радиатор» для экскаватора HITACHI ZX40U.

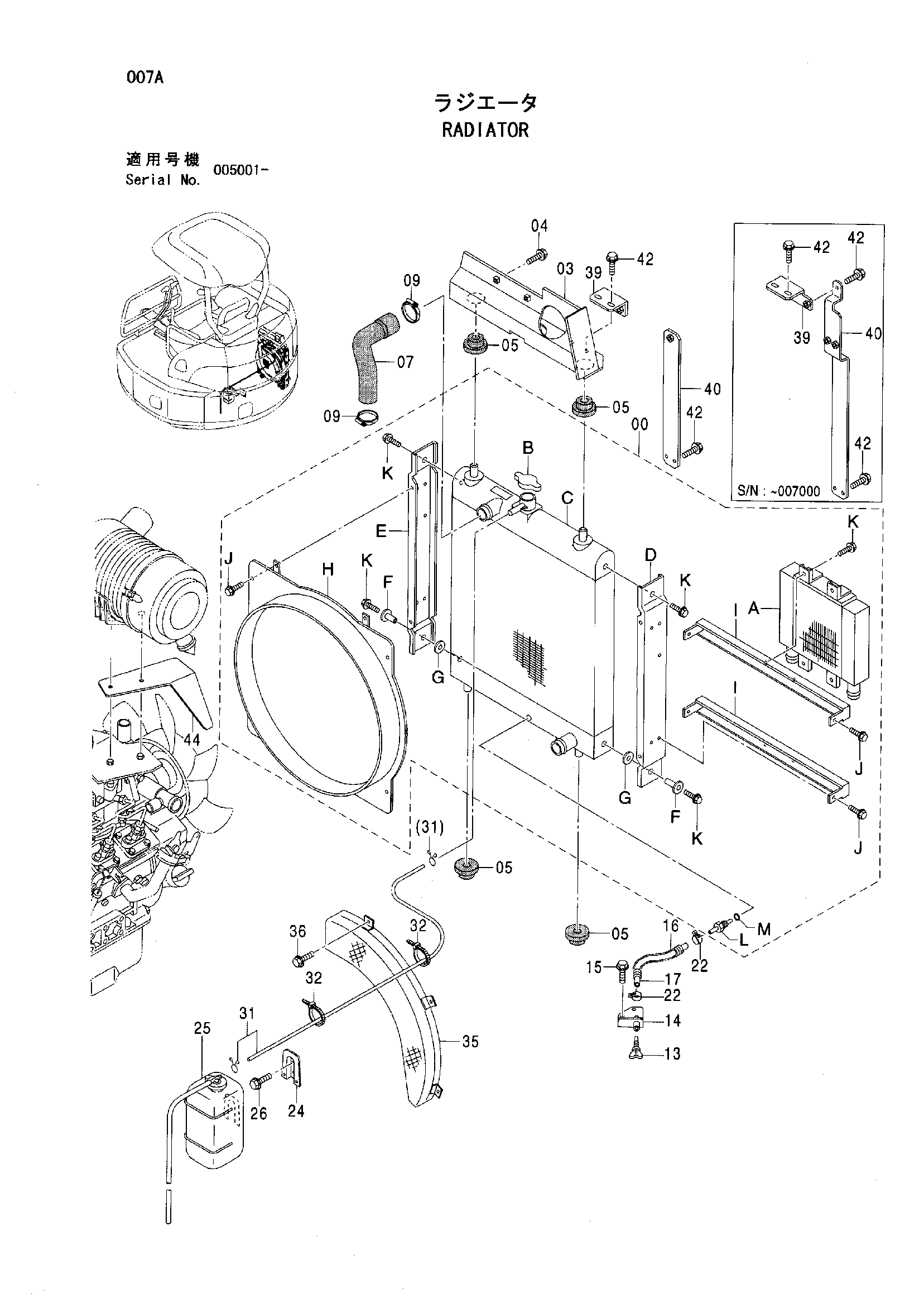

Схема узла
Каталожные номера
| Позиция | Наименование | Каталожный номер | Кол. |
|---|---|---|---|
| 00 | RADIATOR | 4467233 | 1 |
| 00 | RADIATOR | 4611871 | 1 |
| 00A | COOLER OIL | 4390532 | 1 |
| 00A | COOLER OIL | 4373424 | 1 |
| 00B | CAP | 4419861 | 1 |
| 00C | CORE RADIATOR | 4434315 | 1 |
| 00D | BRACKET | 4434316 | 1 |
| 00D | BRACKET | 4485643 | 1 |
| 00E | BRACKET | 4434317 | 1 |
| 00E | BRACKET | 4485644 | 1 |
| 00F | COLLAR | 4434318 | 2 |
| 00G | CUSHION | 4434319 | 2 |
| 00H | SHROUD | 4434320 | 1 |
| 00I | BRACKET | 4434321 | 2 |
| 00J | BOLT SEMS | 4434322 | 8 |
| 00K | BOLT SEMS | 4434323 | 8 |
| 00L | PLUG | 4434324 | 1 |
| 00M | O-RING | 4389573 | 1 |
| 03 | BRACKET | 8088309 | 1 |
| 04 | BOLT SEMS | J051025 | 2 |
| 04 | BOLT SEMS | J271025 | 2 |
| 04 | BOLT SEMS | J271025 | 2 |
| 05 | RUBBER CUSHION | 4402635 | 4 |
| 07 | HOSE WATER | 3082429 | 1 |
| 09 | CLAMP HOSE | 4011675 | 2 |
| 13 | COCK | 4401687 | 1 |
| 14 | COCK | 4401686 | 1 |
| 15 | BOLT SEMS | J051025 | 2 |
| 15 | BOLT SEMS | J090820 | 2 |
| 15 | BOLT SEMS | J260820 | 2 |
| 15 | BOLT SEMS | J260820 | 2 |
| 16 | HOSE WATER | 4443682 | 1 |
| 17 | TUBE | 4414581 | 1 |
| 22 | CLAMP HOSE | 4339258 | 2 |
| 24 | PLATE | 4367147 | 1 |
| 25 | TANK WATER | 4450854 | 1 |
| 26 | BOLT SEMS | J090616 | 2 |
| 26 | BOLT SEMS | J260614 | 2 |
| 26 | BOLT SEMS | J260614 | 2 |
| 31 | HOSE WATER | 4367203 | 1 |
| 32 | CLIP BAND | 4055311 | 2 |
| 35 | GUARD FAN | 4414164 | 1 |
| 36 | BOLT SEMS | J090612 | 3 |
| 36 | BOLT SEMS | J260612 | 3 |
| 36 | BOLT SEMS | J260612 | 3 |
| 39 | BRACKET | 9758949 | 1 |
| 39 | BRACKET | 9762309 | 1 |
| 40 | PLATE | 9758950 | 1 |
| 40 | PLATE | 9762310 | 1 |
| 42 | BOLT SEMS | J090820 | 5 |
| 42 | BOLT SEMS | J260820 | 5 |
| 42 | BOLT SEMS | J260820 | 5 |
| 42 | BOLT SEMS | J260820 | 4 |
| 42 | BOLT SEMS | J260820 | 4 |
| 44 | BRACKET | 3097105 | 1 |
