Двигатель — HITACHI ZX40U
Схема и каталожные номера деталей узла «Двигатель» для экскаватора HITACHI ZX40U.

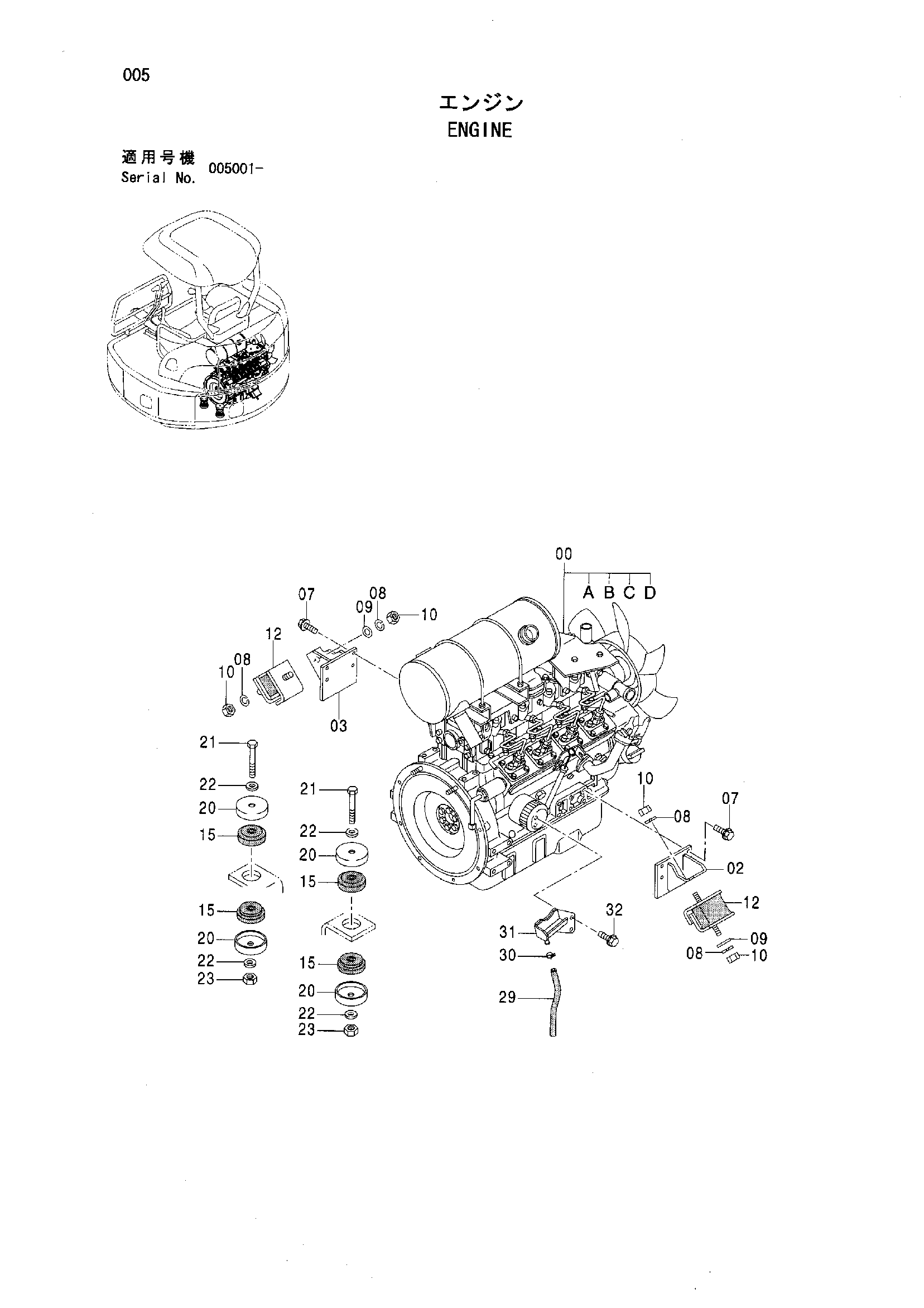

Схема узла
Каталожные номера
| Позиция | Наименование | Каталожный номер | Кол. |
|---|---|---|---|
| 00 | ENGINE | 4466904 | 1 |
| 00A | FILTER OIL | 4454526 | 1 |
| 00B | BELT FAN | 4445213 | 1 |
| 00C | FAN | 4420669 | 1 |
| 00D | MUFFLER | 4484695 | 1 |
| 02 | BRACKET | 8072298 | 1 |
| 02 | BRACKET | 8072297 | 1 |
| 03 | BRACKET | 8072297 | 1 |
| 07 | BOLT SEMS | J051030 | 8 |
| 07 | BOLT SEMS | J271025 | 8 |
| 07 | BOLT SEMS | J271025 | 8 |
| 08 | WASHER SPRING | J252214 | 4 |
| 08 | WASHER SPRING | A590914 | 4 |
| 09 | WASHER | 4086894 | 2 |
| 10 | NUT | J231214 | 4 |
| 10 | NUT | J950014 | 4 |
| 12 | RUBBER | 4272585 | 2 |
| 15 | RUBBER | 4390496 | 4 |
| 20 | STOPPER | 4276374 | 4 |
| 21 | BOLT | J971206 | 2 |
| 21 | BOLT | J901206 | 2 |
| 22 | WASHER | J254012 | 4 |
| 22 | WASHER | J222012 | 4 |
| 23 | NUT | J231212 | 2 |
| 23 | NUT | J950012 | 2 |
| 29 | HOSE FUEL | 4383153 | 1 |
| 29 | HOSE FUEL | 4355362 | 1 |
| 30 | CLAMP HOSE | 4339258 | 1 |
| 31 | TRAY | 8088410 | 1 |
| 32 | BOLT SEMS | J051020 | 2 |
| 32 | BOLT SEMS | J271020 | 2 |
| 32 | BOLT SEMS | J271020 | 2 |
