Рама — HITACHI ZX40U
Схема и каталожные номера деталей узла «Рама» для экскаватора HITACHI ZX40U.

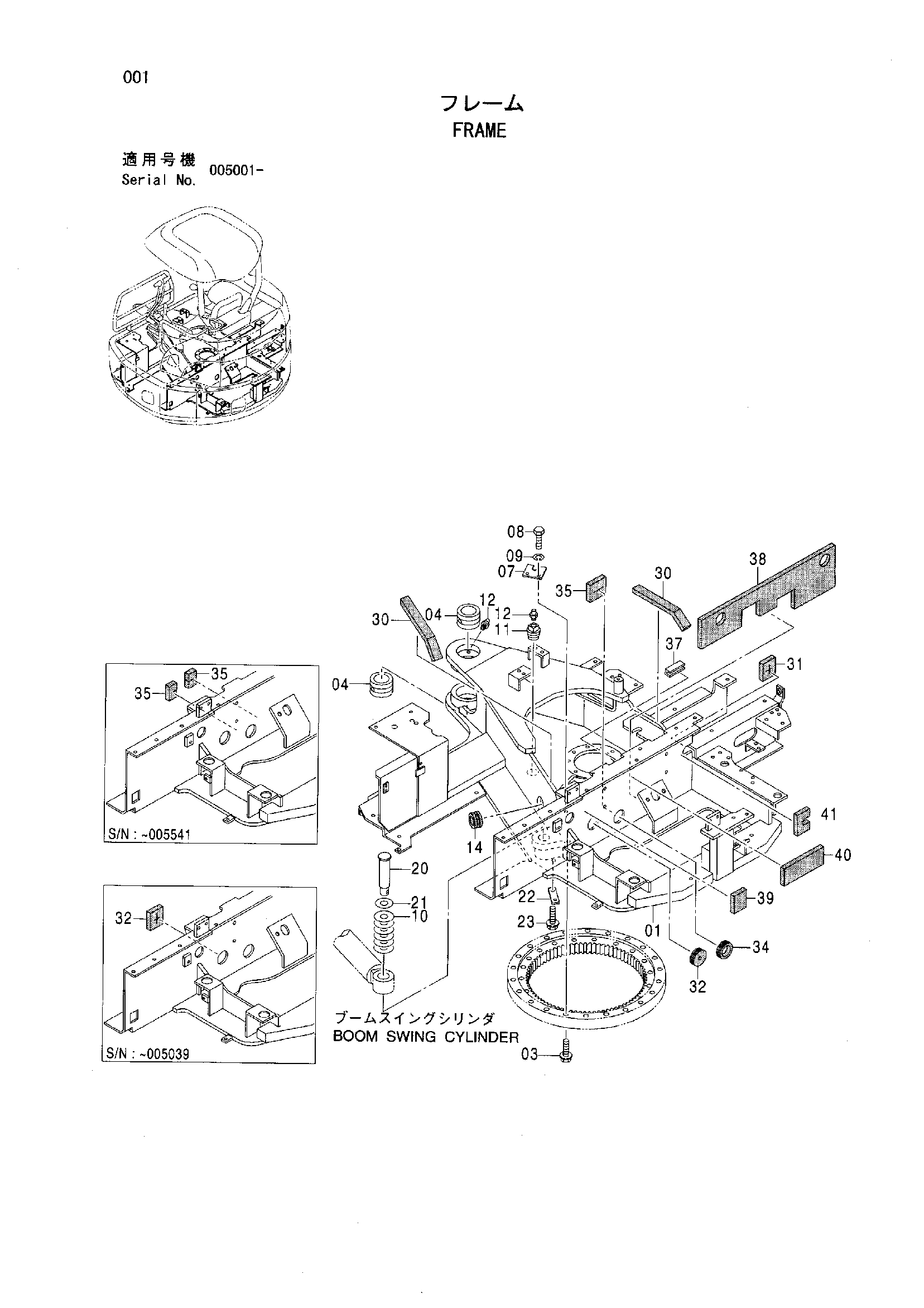

Схема узла
Каталожные номера
| Позиция | Наименование | Каталожный номер | Кол. |
|---|---|---|---|
| 01 | FRAME MAIN | 7042510 | 1 |
| 03 | BOLT | J981465 | 22 |
| 03 | BOLT | J921465 | 22 |
| 04 | BUSHING | 4405597 | 2 |
| 07 | STOPPER | 4276606 | 1 |
| 08 | BOLT | J971225 | 2 |
| 08 | BOLT | J901225 | 2 |
| 09 | WASHER SPRING | J252212 | 2 |
| 09 | WASHER SPRING | A590912 | 2 |
| 10 | SHIM 1.0 | 4376366 | 6 |
| 11 | PLUG | 4310999 | 1 |
| 12 | FITTING GREASE | J75481 | 3 |
| 14 | BUSHING RUBBER | 4259340 | 1 |
| 20 | PIN | 4392008 | 1 |
| 21 | SPACER | 4392007 | 1 |
| 22 | PLATE | 4392683 | 1 |
| 23 | BOLT SEMS | J041230 | 2 |
| 23 | BOLT SEMS | J271230 | 2 |
| 23 | BOLT SEMS | J271230 | 2 |
| 30 | RUBBER | 4401116 | 2 |
| 31 | RUBBER | 4475170 | 1 |
| 32 | RUBBER | 4475170 | 1 |
| 32 | BUSHING RUBBER | 4479422 | 1 |
| 34 | BUSHING RUBBER | 4087462 | 1 |
| 35 | RUBBER | 4468022 | 2 |
| 35 | RUBBER | 4461115 | 1 |
| 37 | CUSHION | 4482563 | 1 |
| 38 | RUBBER | 4483476 | 1 |
| 39 | RUBBER | 4483477 | 1 |
| 40 | RUBBER | 4483478 | 1 |
| 41 | RUBBER | 4483479 | 1 |
