Гидролинии отвала PAT — HITACHI ZX40U
Схема и каталожные номера деталей узла «Гидролинии отвала PAT» для экскаватора HITACHI ZX40U.

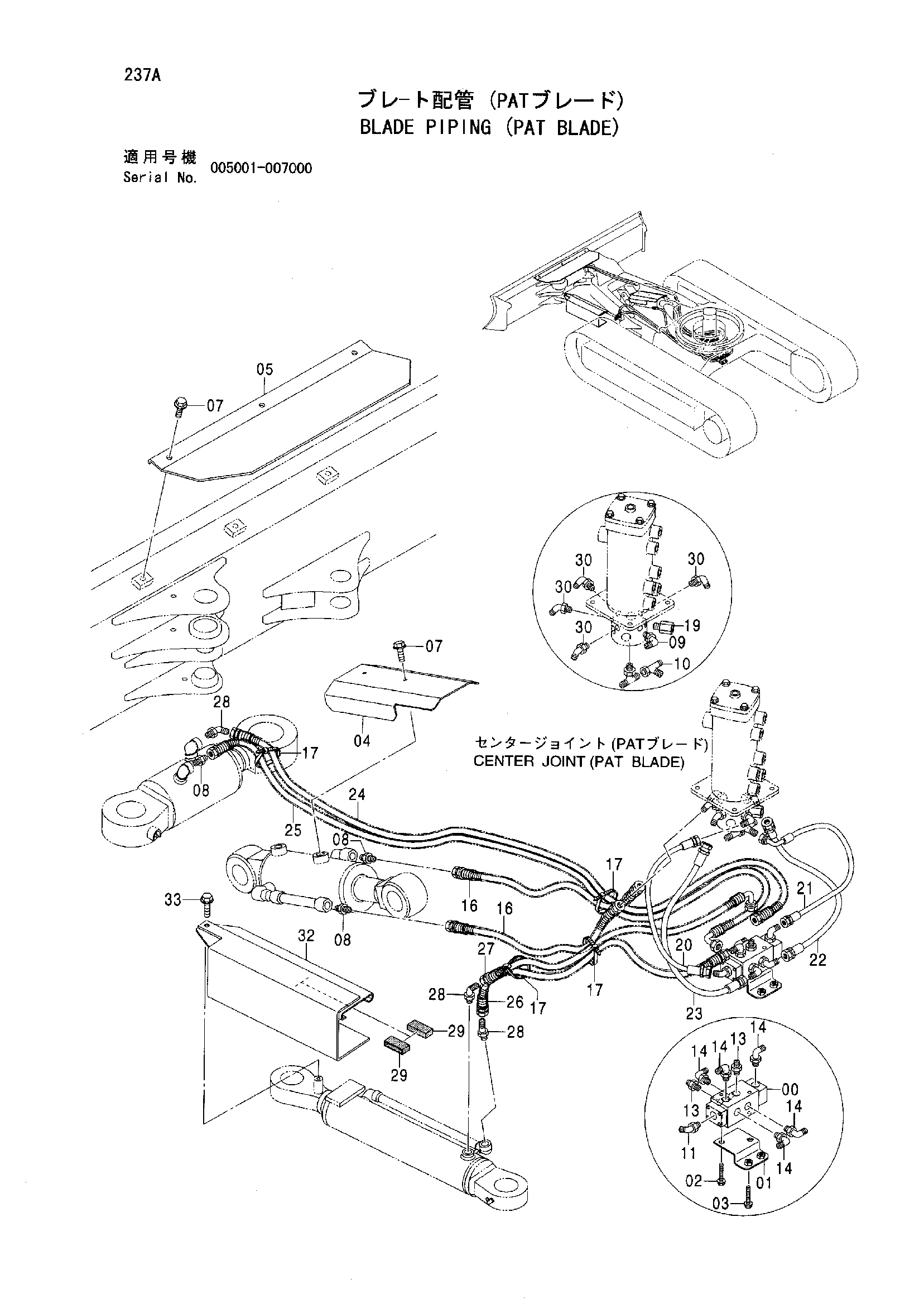

Схема узла
Каталожные номера
| Позиция | Наименование | Каталожный номер | Кол. |
|---|---|---|---|
| 00 | VALVE SELECTOR | 4417343 | 1 |
| 01 | BRACKET | 9754974 | 1 |
| 02 | BOLT SEMS | J271020 | 2 |
| 02A | BOLT | J901020 | 1 |
| 02B | WASHER PLANE | J222010 | 1 |
| 03 | BOLT SEMS | J271030 | 2 |
| 03A | BOLT | J901030 | 1 |
| 03B | WASHER PLANE | J222010 | 1 |
| 04 | COVER | 3080414 | 1 |
| 05 | COVER | 4429835 | 1 |
| 07 | BOLT SEMS | J271020 | 5 |
| 07A | BOLT | J901020 | 1 |
| 07B | WASHER PLANE | J222010 | 1 |
| 08 | ADAPTER | 4042031 | 3 |
| 08A | O-RING | 4509180 | 1 |
| 09 | ELBOW S | 4112300 | 1 |
| 09A | O-RING | 957366 | 1 |
| 10 | UNION S | 4434771 | 1 |
| 11 | ELBOW S | 4108100 | 1 |
| 11A | O-RING | 957366 | 1 |
| 13 | ADAPTER S | 4368205 | 2 |
| 13A | O-RING | 957366 | 1 |
| 14 | ELBOW S | 4434986 | 5 |
| 14A | O-RING | 957366 | 1 |
| 16 | HOSE | 4426421 | 2 |
| 17 | CLIP BAND | 4121859 | 4 |
| 19 | SOCKET | 4435445 | 1 |
| 19A | O-RING | 957366 | 1 |
| 20 | HOSE | 4435961 | 1 |
| 21 | HOSE | 4438899 | 1 |
| 22 | HOSE | 4439531 | 1 |
| 23 | HOSE | 4439532 | 1 |
| 24 | HOSE | 4435965 | 1 |
| 25 | HOSE | 4435966 | 1 |
| 26 | HOSE | 4435967 | 1 |
| 27 | HOSE | 4435968 | 1 |
| 28 | ELBOW S | 4095133 | 3 |
| 28A | O-RING | 4509180 | 1 |
| 29 | RUBBER | 4352044 | 2 |
| 30 | ELBOW S | 4095133 | 4 |
| 30A | O-RING | 4509180 | 1 |
| 32 | COVER CYL. | 8094622 | 1 |
| 33 | BOLT SEMS | J271025 | 1 |
| 33A | BOLT | J901025 | 1 |
| 33B | WASHER PLANE | J222010 | 1 |
