Отвал PAT — HITACHI ZX40U
Схема и каталожные номера деталей узла «Отвал PAT» для экскаватора HITACHI ZX40U.

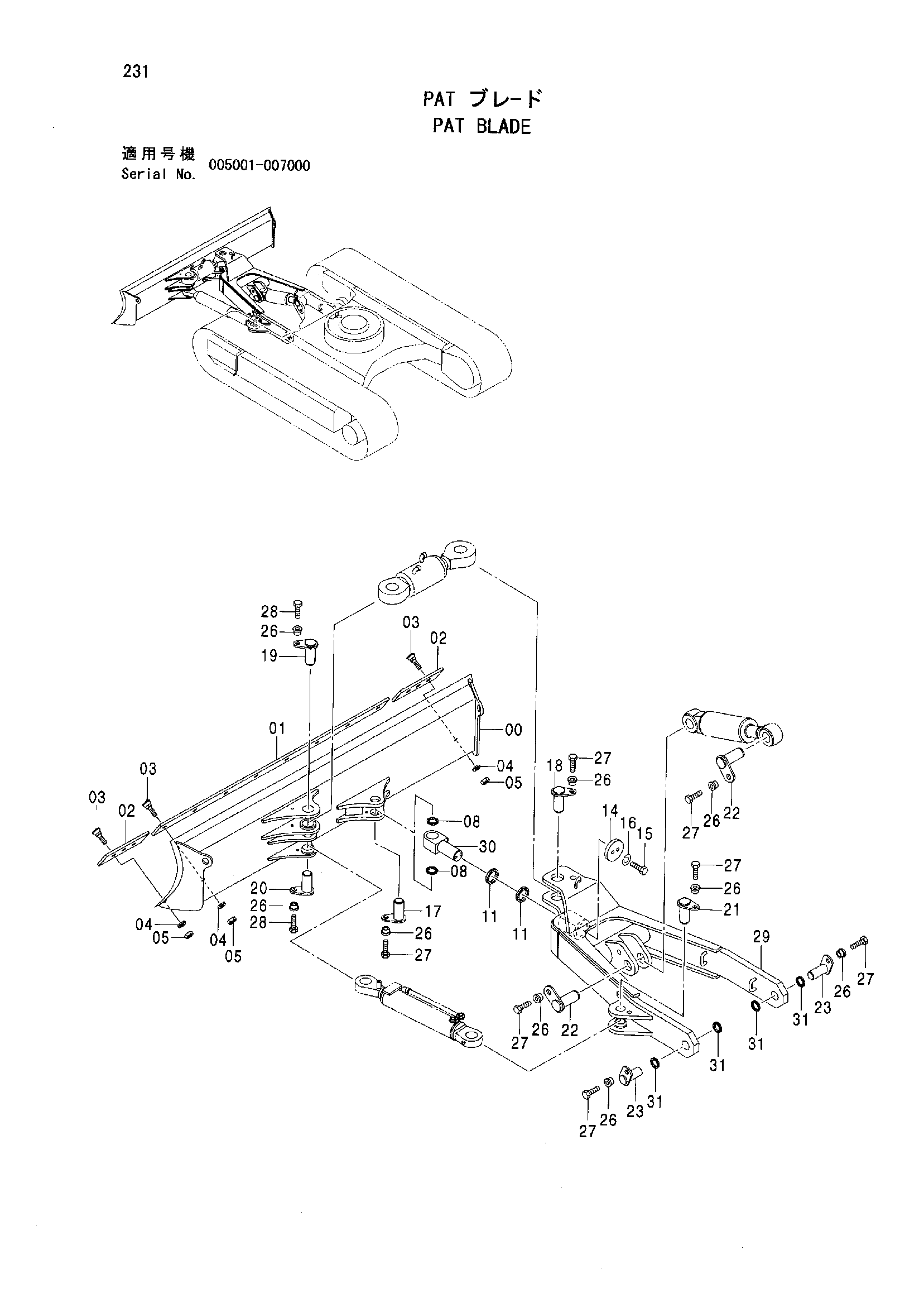

Схема узла
Каталожные номера
| Позиция | Наименование | Каталожный номер | Кол. |
|---|---|---|---|
| 00 | BLADE | 6019297 | 1 |
| 01 | CUTTING-EDGE | 3087945 | 1 |
| 02 | CUTTING-EDGE | 4437773 | 2 |
| 03 | BOLT PLOW | 4429886 | 14 |
| 04 | WASHER | J222014 | 14 |
| 05 | NUT | 4434851 | 14 |
| 08 | SEAL DUST | 4349913 | 2 |
| 11 | SEAL DUST | 4094086 | 2 |
| 14 | PLATE | 4429925 | 1 |
| 15 | BOLT | J901645 | 2 |
| 16 | WASHER SPRING | A590916 | 2 |
| 17 | PIN | 9755027 | 1 |
| 18 | PIN | 9754893 | 1 |
| 19 | PIN | 9753778 | 1 |
| 20 | PIN | 9755028 | 1 |
| 21 | PIN | 9753783 | 1 |
| 22 | PIN | 9744083 | 2 |
| 23 | PIN | 9745228 | 2 |
| 26 | BUSHING | 4339355 | 9 |
| 27 | BOLT | J901435 | 7 |
| 28 | BOLT | J901430 | 2 |
| 29 | FRAME | 7042254 | 1 |
| 30 | PIN | 9758625 | 1 |
| 31 | SEAL DUST | 4117955 | 4 |
