Таблички и наклейки (японские) <навес TOPS> — HITACHI ZX40U

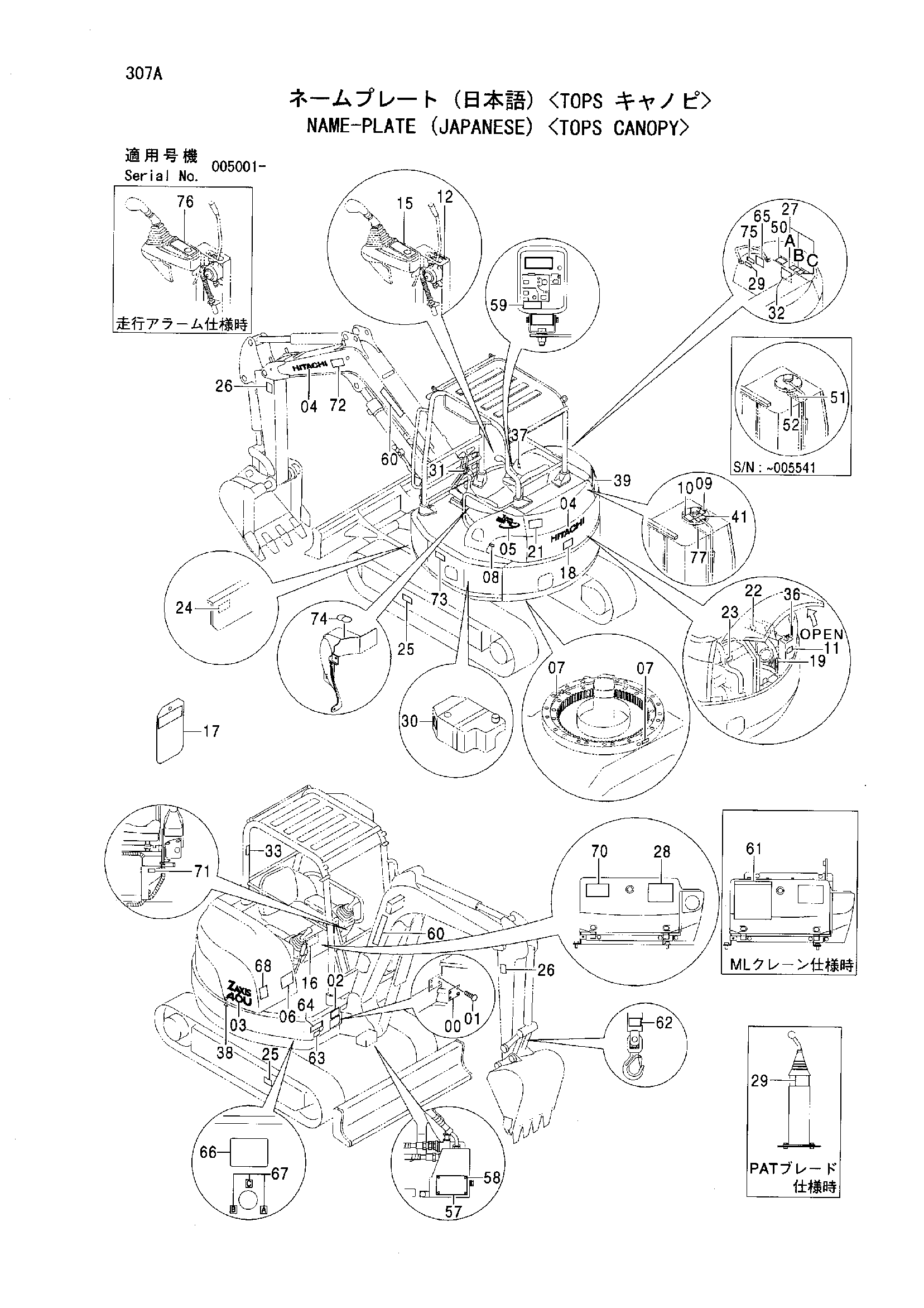

Схема и каталожные номера деталей узла «Таблички и наклейки (японские) <навес TOPS>» для экскаватора HITACHI ZX40U.
Схема узла
Каталожные номера
| Позиция | Наименование | Каталожный номер | Кол. |
|---|---|---|---|
| 00 | NAME-PLATE | В составе узла | 1 |
| 01 | SCREW DRIVE | M492964 | 4 |
| 02 | NAME-PLATE | 4479458 | 1 |
| 02 | NAME-PLATE | 4615002 | 1 |
| 03 | NAME-PLATE | 2048403 | 1 |
| 04 | NAME-PLATE | 4475723 | 2 |
| 05 | NAME-PLATE | 2048372 | 1 |
| 06 | NAME-PLATE | 2047905 | 1 |
| 06 | NAME-PLATE | 2050614 | 1 |
| 06 | NAME-PLATE | 2051213 | 1 |
| 07 | NAME-PLATE | 4333223 | 2 |
| 08 | NAME-PLATE | 4298944 | 1 |
| 09 | NAME-PLATE | 4278281 | 1 |
| 10 | NAME-PLATE | 4356626 | 1 |
| 11 | NAME-PLATE | 4288344 | 1 |
| 12 | SEAL | 4334011 | 1 |
| 15 | NAME-PLATE | 4472599 | 1 |
| 16 | NAME-PLATE | 4474909 | 1 |
| 17 | NAME-PLATE | 3076175 | 1 |
| 18 | NAME-PLATE | 4375223 | 1 |
| 19 | SAFETY-SIGN | 4448716 | 1 |
| 21 | SAFETY-SIGN | 3085635 | 1 |
| 22 | SAFETY-SIGN | 4463978 | 1 |
| 23 | SAFETY-SIGN | 4418417 | 1 |
| 24 | SAFETY-SIGN | 4418406 | 1 |
| 25 | SAFETY-SIGN | 4418391 | 2 |
| 26 | SAFETY-SIGN | 3085209 | 2 |
| 26 | SAFETY-SIGN | 3085643 | 1 |
| 27 | SAFETY-SIGN | 3091139 | 1 |
| 27A | SAFETY-SIGN | 4418420 | 1 |
| 27B | SAFETY-SIGN | 4418422 | 1 |
| 27C | SAFETY-SIGN | 4418421 | 1 |
| 28 | NAME-PLATE | 3089758 | 1 |
| 29 | NAME-PLATE | 4372456 | 1 |
| 29 | NAME-PLATE | 4438465 | 1 |
| 30 | NAME-PLATE | 4416056 | 1 |
| 31 | NAME-PLATE | 4369061 | 1 |
| 32 | NAME-PLATE | 4326050 | 1 |
| 33 | NAME-PLATE | 3095509 | 1 |
| 36 | NAME-PLATE | 4478617 | 1 |
| 37 | NAME-PLATE | 4478618 | 1 |
| 38 | NAME-PLATE | 4478619 | 2 |
| 39 | NAME-PLATE | 3096212 | 1 |
| 41 | SAFETY-SIGN | 4418415 | 1 |
| 50 | NAME-PLATE | 4373144 | 1 |
| 50 | NAME-PLATE | 4376013 | 1 |
| 50 | NAME-PLATE | 3095545 | 1 |
| 51 | NAME-PLATE | 4296826 | 1 |
| 52 | NAME-PLATE | 4300158 | 1 |
| 57 | NAME-PLATE | 3042530 | 1 |
| 58 | SCREW | 4169279 | 4 |
| 59 | NAME-PLATE | 4420954 | 1 |
| 60 | NAME-PLATE | 3090173 | 1 |
| 60 | NAME-PLATE | 3090173 | 2 |
| 61 | NAME-PLATE | 3089913 | 1 |
| 62 | NAME-PLATE | 4430476 | 1 |
| 63 | NAME-PLATE | 3088038 | 1 |
| 64 | NAME-PLATE | 3089915 | 1 |
| 65 | NAME-PLATE | 3100558 | 1 |
| 66 | NAME-PLATE | 4403558 | 1 |
| 67 | NAME-PLATE | 4355585 | 1 |
| 68 | NAME-PLATE | 4482702 | 1 |
| 70 | NAME PLATE | 4475115 | 1 |
| 71 | NAME-PLATE | 4451659 | 1 |
| 72 | NAME PLATE | 2046325 | 1 |
| 73 | NAME PLATE | 4477988 | 1 |
| 74 | NAME-PLATE | 4425953 | 1 |
| 75 | NAME-PLATE | 4432064 | 1 |
| 76 | NAME-PLATE | 4486758 | 1 |
| 77 | NAME-PLATE | 4448423 | 1 |
