Гидролинии рабочего оборудования — HITACHI ZX40U
Схема и каталожные номера деталей узла «Гидролинии рабочего оборудования» для экскаватора HITACHI ZX40U.

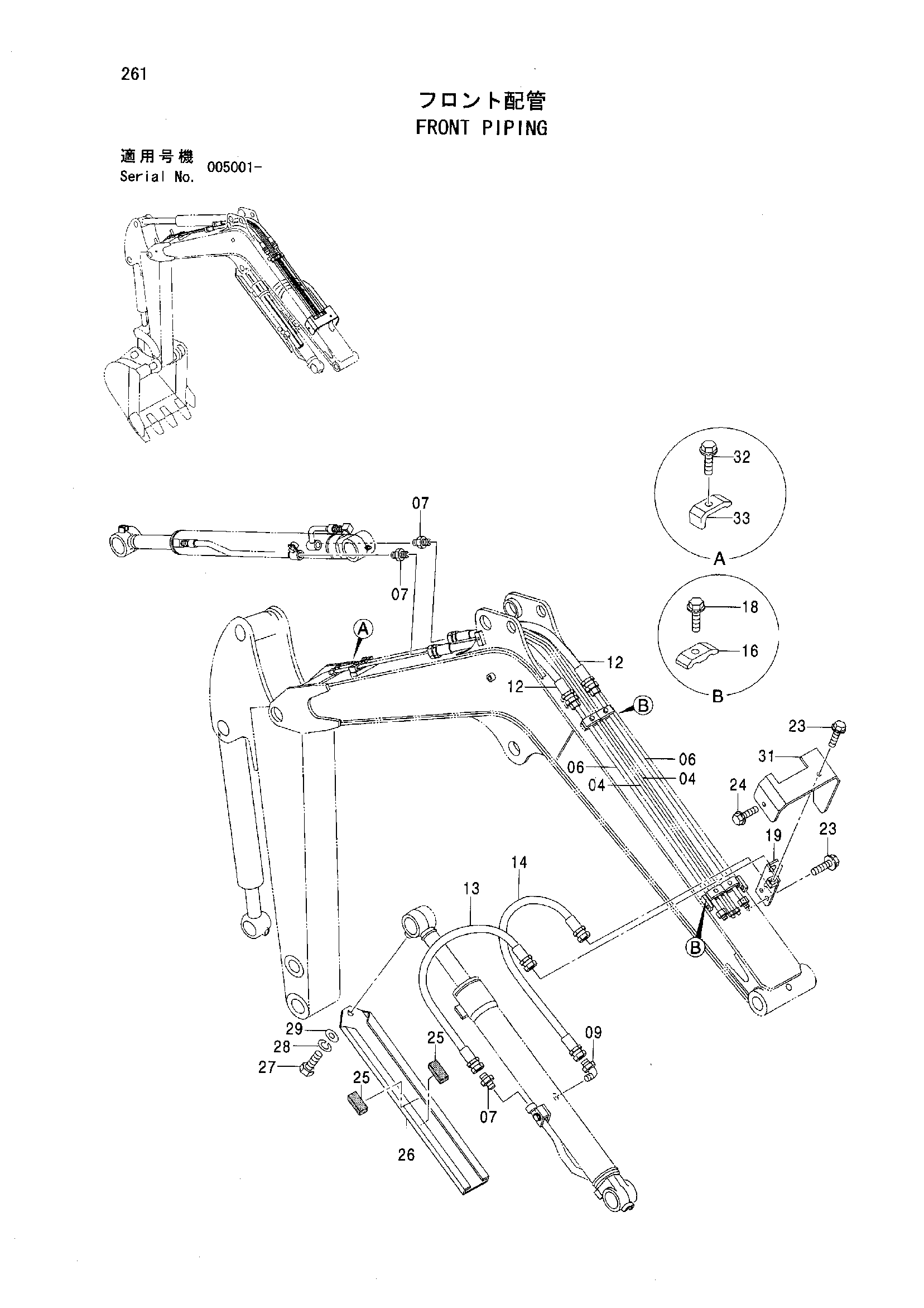

Схема узла
Каталожные номера
| Позиция | Наименование | Каталожный номер | Кол. |
|---|---|---|---|
| 04 | PIPE | 8086609 | 2 |
| 06 | PIPE | 9756429 | 2 |
| 07 | ADAPTER | 4042032 | 3 |
| 07A | O-RING | 4506418 | 1 |
| 09 | ELBOW S | 4037760 | 1 |
| 09A | O-RING | 4506418 | 1 |
| 12 | HOSE | 4466877 | 2 |
| 13 | HOSE | 4479832 | 1 |
| 14 | HOSE | 4479833 | 1 |
| 16 | CLAMP PIPE | 4355009 | 4 |
| 16 | CLAMP PIPE | 4202559 | 4 |
| 18 | BOLT SEMS | J051045 | 4 |
| 18 | BOLT SEMS | J271040 | 4 |
| 18 | BOLT SEMS | J271040 | 4 |
| 19 | BRACKET | 9751363 | 1 |
| 23 | BOLT SEMS | J050820 | 3 |
| 23 | BOLT SEMS | J260820 | 3 |
| 23 | BOLT SEMS | J260820 | 3 |
| 24 | BOLT SEMS | J050816 | 1 |
| 24 | BOLT SEMS | J260814 | 1 |
| 24 | BOLT SEMS | J260814 | 1 |
| 25 | RUBBER | 4352044 | 2 |
| 26 | COVER | 3080415 | 1 |
| 27 | BOLT | J971225 | 1 |
| 27 | BOLT | J901225 | 1 |
| 28 | WASHER SPRING | J252212 | 1 |
| 28 | WASHER SPRING | A590912 | 1 |
| 29 | WASHER | J254012 | 1 |
| 29 | WASHER | J222012 | 1 |
| 31 | COVER | 4479851 | 1 |
| 32 | BOLT SEMS | J051040 | 2 |
| 32 | BOLT SEMS | J271040 | 2 |
| 32 | BOLT SEMS | J271040 | 2 |
| 33 | CLAMP PIPE | 4331315 | 2 |
| 33 | CLAMP PIPE | 4138227 | 2 |
