Педаль навесного оборудования (2) — HITACHI ZX40U
Схема и каталожные номера деталей узла «Педаль навесного оборудования (2)» для экскаватора HITACHI ZX40U.

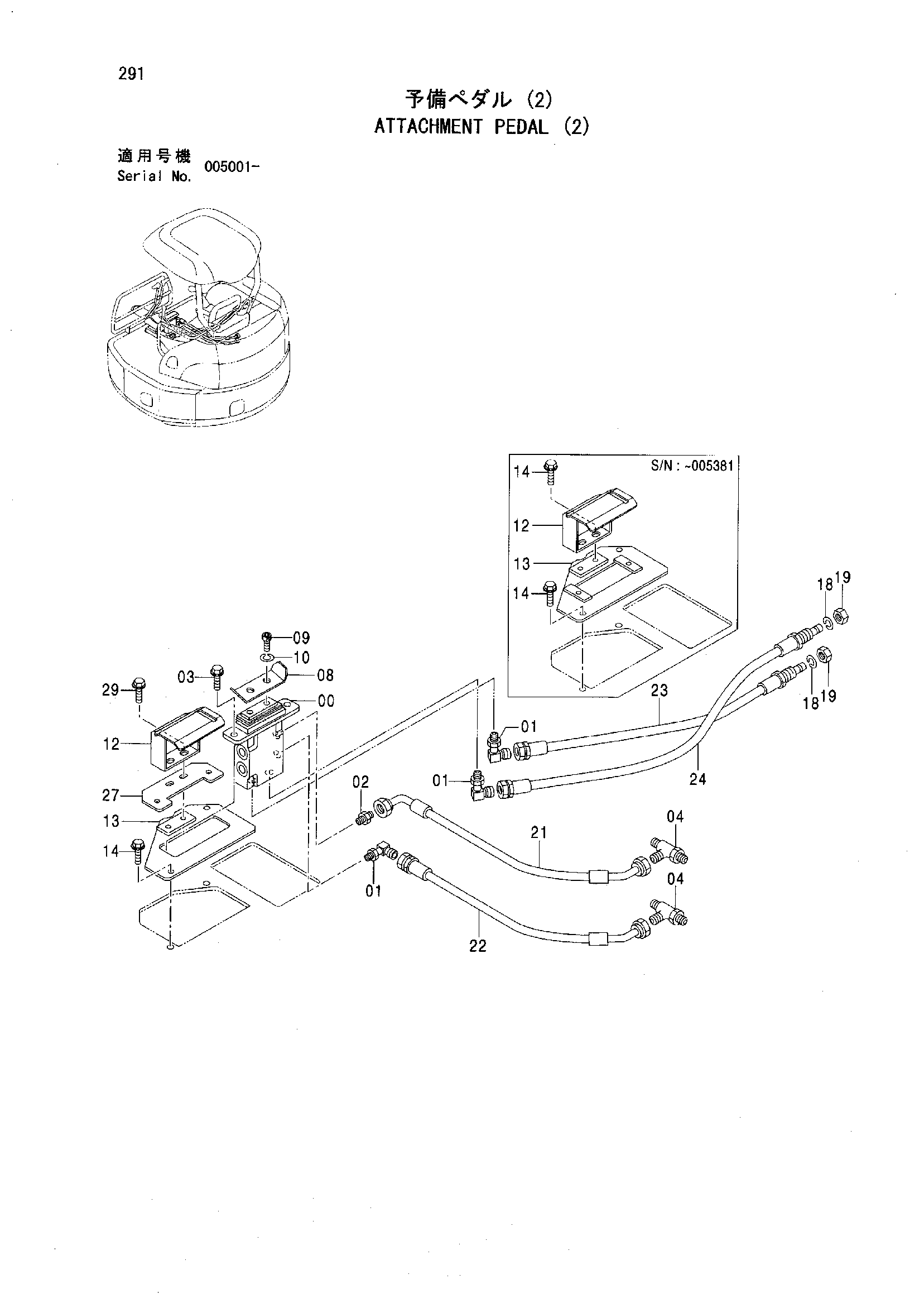

Схема узла
Каталожные номера
| Позиция | Наименование | Каталожный номер | Кол. |
|---|---|---|---|
| 00 | VALVE PILOT | 4467245 | 1 |
| 01 | ELBOW S | 4434981 | 3 |
| 01A | O-RING | 957366 | 1 |
| 02 | ADAPTER | 4042030 | 1 |
| 02A | O-RING | 957366 | 1 |
| 03 | BOLT SEMS | J050820 | 2 |
| 03 | BOLT SEMS | J260816 | 2 |
| 03 | BOLT SEMS | J260816 | 2 |
| 04 | TEE S | 4406156 | 2 |
| 04A | O-RING | 957366 | 1 |
| 08 | PEDAL | 9758030 | 1 |
| 09 | BOLT SOCKET | J770816 | 2 |
| 09 | BOLT SOCKET | J780816 | 2 |
| 10 | WASHER SPRING | J252108 | 2 |
| 10 | WASHER SPRING | A590908 | 2 |
| 12 | COVER | 8086698 | 1 |
| 13 | PLATE | 8086749 | 1 |
| 13 | PLATE | 8092616 | 1 |
| 14 | BOLT SEMS | J051020 | 4 |
| 14 | BOLT SEMS | J090820 | 2 |
| 14 | BOLT SEMS | J260820 | 2 |
| 14 | BOLT SEMS | J260820 | 2 |
| 18 | WASHER SPRING | J252212 | 2 |
| 18 | WASHER SPRING | A590912 | 2 |
| 19 | NUT | J231212 | 2 |
| 19 | NUT | J950012 | 2 |
| 21 | HOSE | 4475020 | 1 |
| 22 | HOSE | 4475021 | 1 |
| 23 | HOSE | 4475022 | 1 |
| 24 | HOSE | 4475023 | 1 |
| 27 | BRACKET | 4604862 | 1 |
| 29 | BOLT SEMS | J090825 | 2 |
| 29 | BOLT SEMS | J260825 | 2 |
| 29 | BOLT SEMS | J260825 | 2 |
