080: Топливный насос высокого давления — HITACHI ZX40U
Схема и каталожные номера деталей узла «080: Топливный насос высокого давления» для экскаватора HITACHI ZX40U.

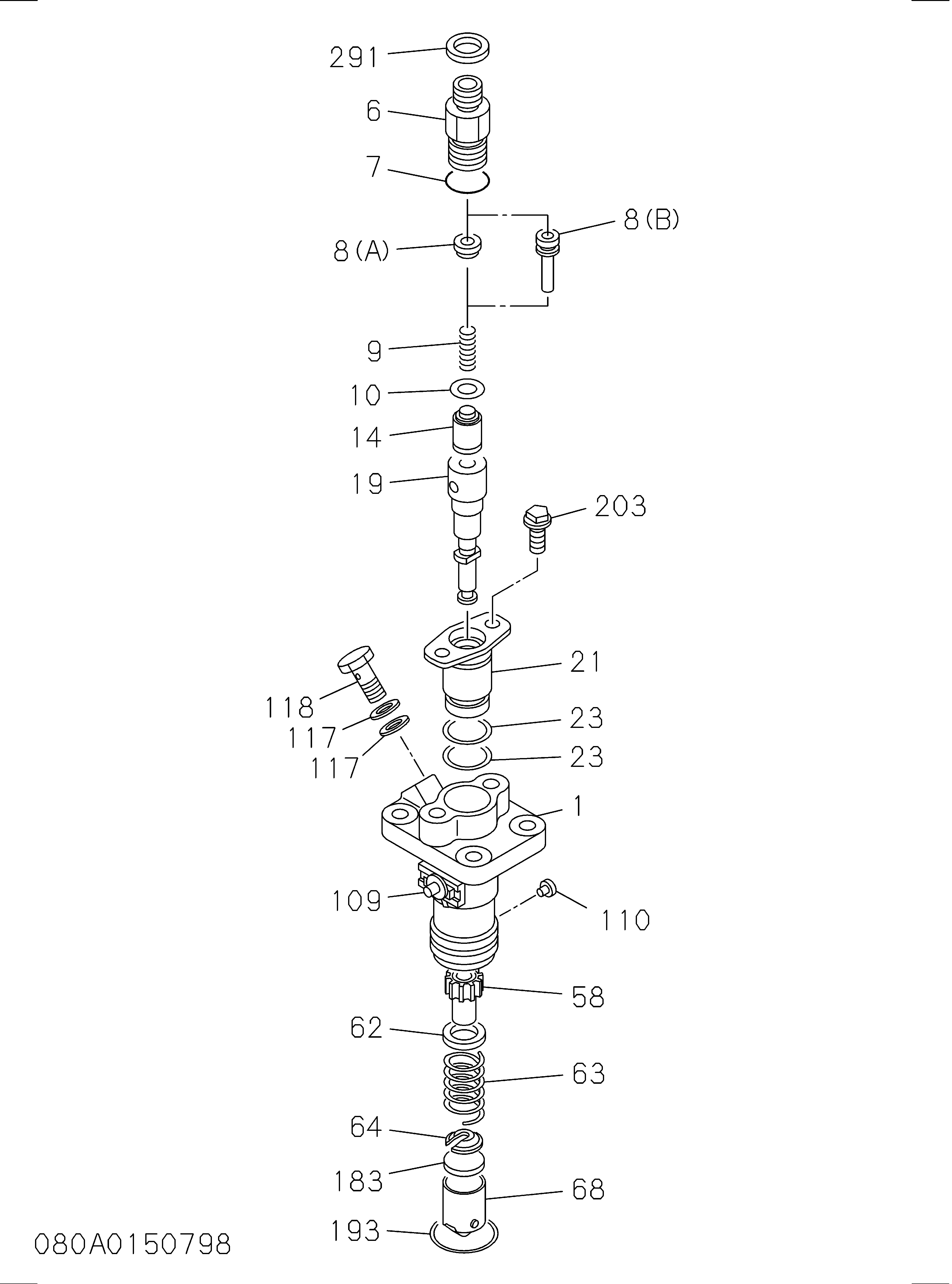

Схема узла
Каталожные номера
| Позиция | Наименование | Каталожный номер | Кол. |
|---|---|---|---|
| 001 | HOUSING PUMP,FUEL INJ | 8972531510 | 1 |
| 006 | HOLDER DELIVERY VLV,INJ PUMP | 8972234550 | 1 |
| 007 | GASKET HOLDER,DELIVERY VLV | 8972531530 | 1 |
| 009 | SPRING DELIVERY VLV | 8943689340 | 1 |
| 010 | GASKET DELIVERY VLV,INJ PUMP | 8941289120 | 1 |
| 014 | VALVE DELIVERY,INJ PUMP | 8973223380 | 1 |
| 019 | PLUNGER ASM INJ PUMP | 8973283750 | 1 |
| 019 | PLUNGER ASM INJ PUMP | 8980490360 | 1 |
| 021 | FLANGE PLUNGER | 8970833480 | 1 |
| 023 | GASKET PLUNGER,BARREL SIDE | 8972531540 | 2 |
| 058 | SLEEVE CONT,INJ PUMP | 8973245170 | 1 |
| 062 | SEAT PLUNGER SPRING,INJ PUMP | 8941289200 | 1 |
| 063 | SPRING PLUNGER,INJ PUMP | 8941289190 | 1 |
| 064 | SEAT PLUNGER SPRING LWR,INJ PUMP | 8941289210 | 1 |
| 068 | TAPPET CM/SHF,INJ PUMP | 8972234490 | 1 |
| 109 | RACK CONT,INJ PUMP | 8970833553 | 1 |
| 110 | PIN CONT RACK,INJ PUMP | 8970833490 | 1 |
| 117 | GASKET EYE BOLT,INJ PUMP | 1156390080 | 2 |
| 118 | BOLT EYE,FUEL INL,INJ PUMP | 8943796880 | 1 |
| 183 | PLATE TAPPET | 8941289310 | 1 |
| 183 | PLATE TAPPET | 8941289320 | 1 |
| 183 | PLATE TAPPET | 8941289330 | 1 |
| 183 | PLATE TAPPET | 8941289340 | 1 |
| 183 | PLATE TAPPET | 8941289350 | 1 |
| 183 | PLATE TAPPET | 8941289360 | 1 |
| 183 | PLATE TAPPET | 8941289370 | 1 |
| 183 | PLATE TAPPET | 8941289380 | 1 |
| 183 | PLATE TAPPET | 8941289390 | 1 |
| 183 | PLATE TAPPET | 8941289400 | 1 |
| 183 | PLATE TAPPET | 8941289410 | 1 |
| 183 | PLATE TAPPET | 8941289420 | 1 |
| 183 | PLATE TAPPET | 8941289430 | 1 |
| 183 | PLATE TAPPET | 8941289440 | 1 |
| 183 | PLATE TAPPET | 8941289450 | 1 |
| 183 | PLATE TAPPET | 8941289460 | 1 |
| 183 | PLATE TAPPET | 8941289470 | 1 |
| 183 | PLATE TAPPET | 8941289480 | 1 |
| 183 | PLATE TAPPET | 8941289490 | 1 |
| 183 | PLATE TAPPET | 8941289500 | 1 |
| 183 | PLATE TAPPET | 8941289510 | 1 |
| 183 | PLATE TAPPET | 8941289520 | 1 |
| 183 | PLATE TAPPET | 8941289530 | 1 |
| 183 | PLATE TAPPET | 8941289540 | 1 |
| 183 | PLATE TAPPET | 8941289550 | 1 |
| 183 | PLATE TAPPET | 8941289560 | 1 |
| 183 | PLATE TAPPET | 8941289570 | 1 |
| 183 | PLATE TAPPET | 8941289580 | 1 |
| 183 | PLATE TAPPET | 8941289590 | 1 |
| 183 | PLATE TAPPET | 8941289600 | 1 |
| 183 | PLATE TAPPET | 8941289610 | 1 |
| 183 | PLATE TAPPET | 8972259550 | 1 |
| 183 | PLATE TAPPET | 8972259560 | 1 |
| 183 | PLATE TAPPET | 8972259570 | 1 |
| 183 | PLATE TAPPET | 8972259580 | 1 |
| 183 | PLATE TAPPET | 8972259590 | 1 |
| 183 | PLATE TAPPET | 8972259600 | 1 |
| 183 | PLATE TAPPET | 8972259610 | 1 |
| 183 | PLATE TAPPET | 8972259620 | 1 |
| 183 | PLATE TAPPET | 8972259640 | 1 |
| 183 | PLATE TAPPET | 8972259650 | 1 |
| 183 | PLATE TAPPET | 8972259660 | 1 |
| 183 | PLATE TAPPET | 8972259670 | 1 |
| 183 | PLATE TAPPET | 8972259680 | 1 |
| 183 | PLATE TAPPET | 8972259690 | 1 |
| 183 | PLATE TAPPET | 8972259700 | 1 |
| 183 | PLATE TAPPET | 8972259710 | 1 |
| 183 | PLATE TAPPET | 8972259720 | 1 |
| 183 | PLATE TAPPET | 8972259730 | 1 |
| 183 | PLATE TAPPET | 8972259740 | 1 |
| 183 | PLATE TAPPET | 8972259760 | 1 |
| 183 | PLATE TAPPET | 8972259770 | 1 |
| 183 | PLATE TAPPET | 8972259780 | 1 |
| 183 | PLATE TAPPET | 8972259790 | 1 |
| 183 | PLATE TAPPET | 8972259800 | 1 |
| 183 | PLATE TAPPET | 8972259810 | 1 |
| 183 | PLATE TAPPET | 8972259820 | 1 |
| 183 | PLATE TAPPET | 8972259830 | 1 |
| 183 | PLATE TAPPET | 8972259840 | 1 |
| 183 | PLATE TAPPET | 8972259850 | 1 |
| 183 | PLATE TAPPET | 8972259860 | 1 |
| 193 | RING SNAP | 8970833500 | 1 |
| 203 | BOLT FUEL INL | 8943796910 | 2 |
