066: Генератор — HITACHI ZX40U

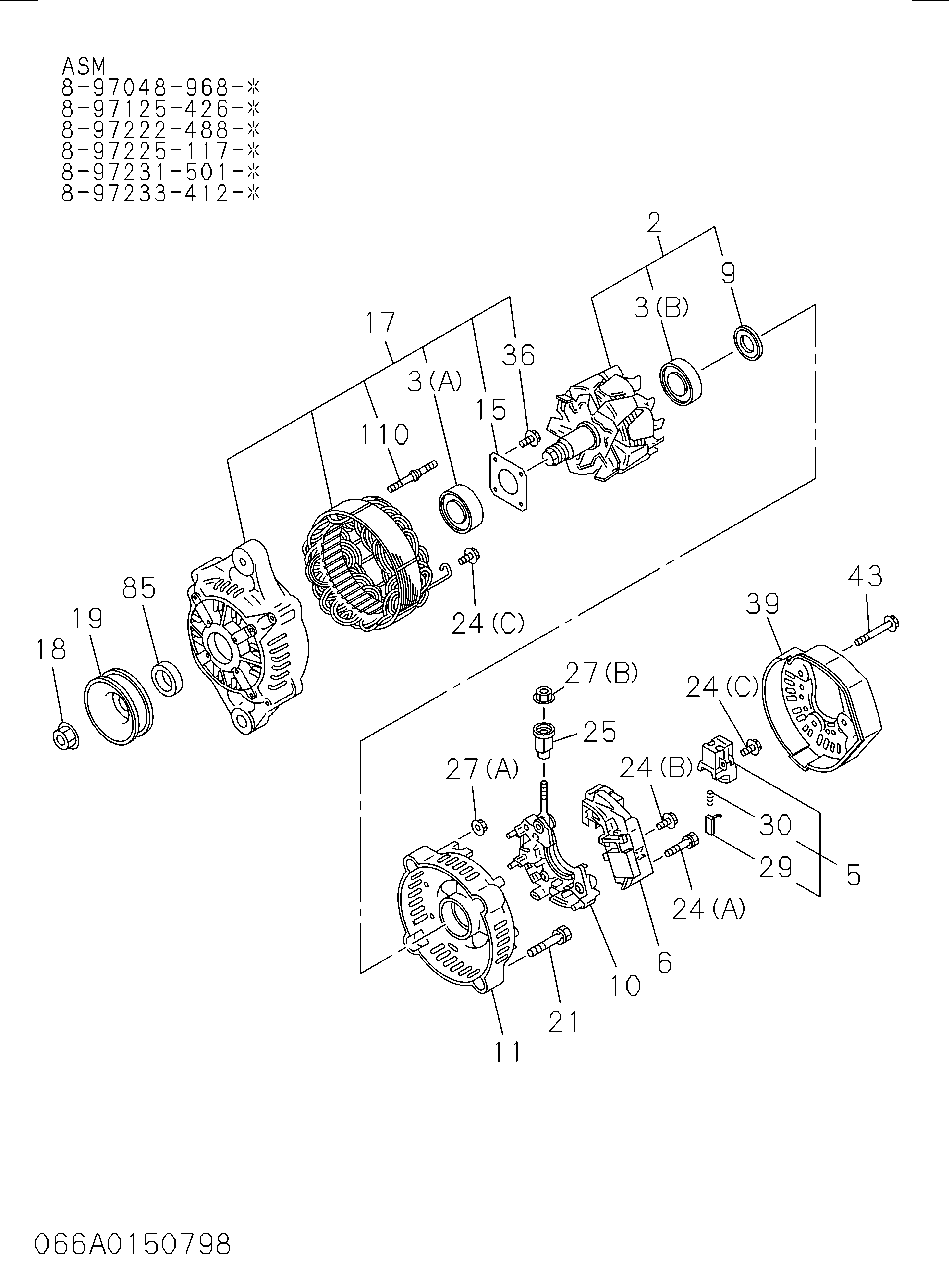

Схема и каталожные номера деталей узла «066: Генератор» для экскаватора HITACHI ZX40U.
Схема узла
Каталожные номера
| Позиция | Наименование | Каталожный номер | Кол. |
|---|---|---|---|
| 002 | ROTOR GEN | 8970728400 | 1 |
| 003(A) | BEARING ROTOR,GEN | 8970728380 | 1 |
| 003(B) | BEARING ROTOR,GEN | 8941357530 | 1 |
| 005 | HOLDER BRUSH,GEN | 8970404940 | 1 |
| 006 | REGULATOR ASM VOLTAGE,GEN | 8944551600 | 1 |
| 009 | COVER FELT WASHER,ROTOR,GEN | 8941230510 | 1 |
| 010 | RECTIFIER GEN | 8970728420 | 1 |
| 011 | COVER RR GEN | 8970728410 | 1 |
| 015 | RETAINER ROTOR,GEN | 8944551540 | 1 |
| 017 | COVER ASM FRT,GEN | 8972269070 | 1 |
| 018 | NUT PULLEY,GEN | 8970728350 | 1 |
| 019 | PULLEY GEN | 8972253340 | 1 |
| 021 | BOLT THROUGH,GEN | 8944551640 | 2 |
| 024(A) | SCREW RECTIFIER,GEN | 8941230610 | 2 |
| 024(B) | SCREW RECTIFIER,GEN | 8944551620 | 1 |
| 024(C) | SCREW RECTIFIER,GEN | 8944551610 | 6 |
| 025 | BUSHING INSULATION TERMINAL | 8944551660 | 1 |
| 027(A) | NUT RECTIFIER,GEN | 8941230640 | 2 |
| 027(B) | NUT RECTIFIER,GEN | 8942061860 | 1 |
| 029 | BRUSH GEN | 8941230560 | 2 |
| 030 | SPRING BRUSH,GEN | 8941230570 | 2 |
| 036 | SCREW FRT COVER | 8970728390 | 4 |
| 039 | COVER END,RR COVER,GEN | 8970728430 | 1 |
| 043 | SCREW RR END COVER | 8944551630 | 3 |
| 085 | SPACER PULLEY,GEN | 8970728360 | 1 |
| 110 | BOLT THROUGH | 8944551560 | 2 |
