065: Стартер — HITACHI ZX40U
Схема и каталожные номера деталей узла «065: Стартер» для экскаватора HITACHI ZX40U.

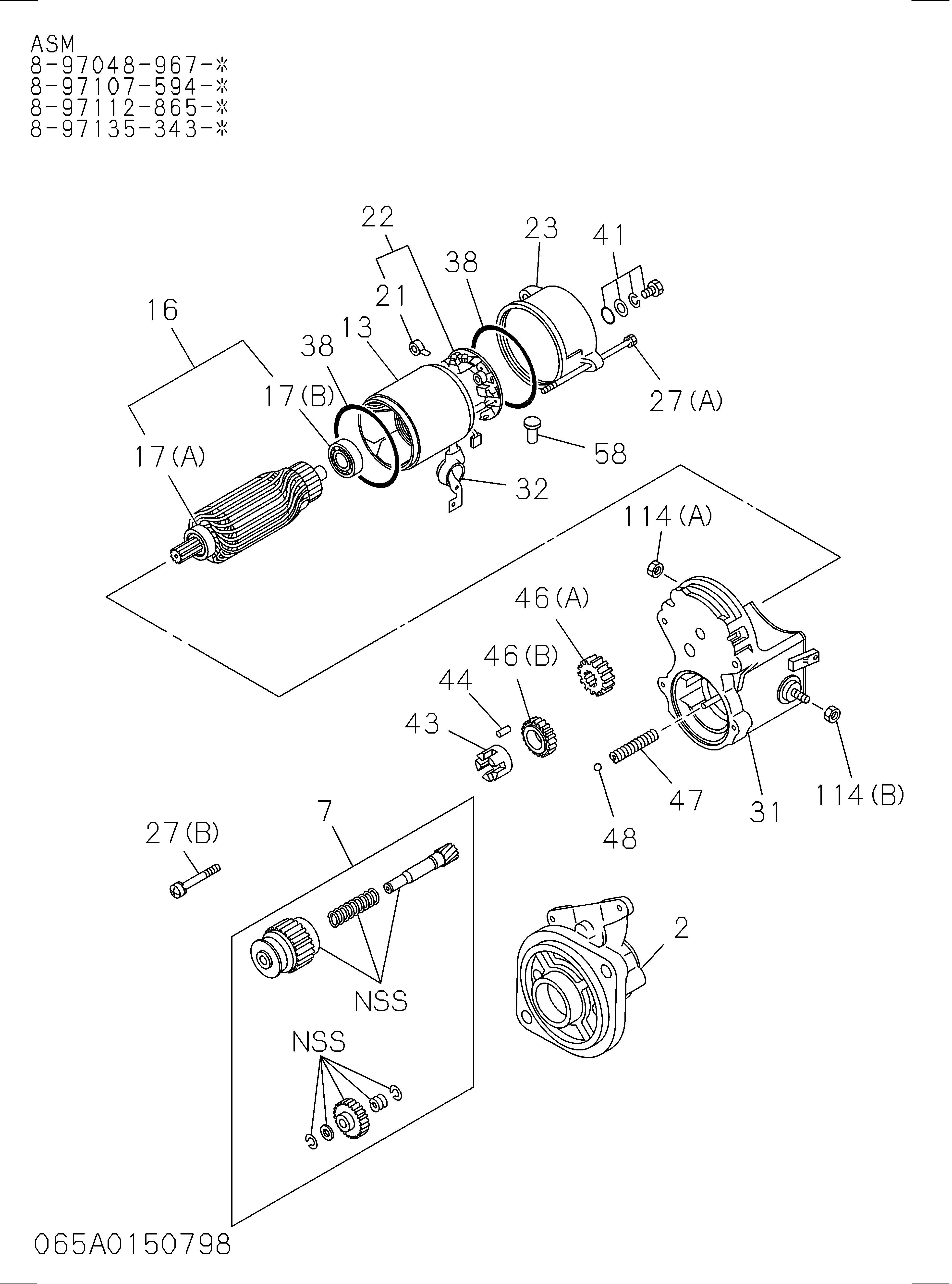

Схема узла
Каталожные номера
| Позиция | Наименование | Каталожный номер | Кол. |
|---|---|---|---|
| 002 | CASE PINION,STARTER | 8971128710 | 1 |
| 007 | CLUTCH ASM PINION,STARTER | 8971128700 | 1 |
| 013 | YOKE STARTER | 8971354970 | 1 |
| 016 | ARMATURE STARTER | 8971128690 | 1 |
| 017(A) | BEARING ARMATURE,STARTER | 8943772400 | 1 |
| 017(B) | BEARING ARMATURE,STARTER | 8971129540 | 1 |
| 021 | SPRING BRUSH HOLDER STARTER | 8971128800 | 4 |
| 022 | HOLDER BRUSH STARTER | 8971128730 | 1 |
| 023 | COVER RR COVER STARTER | 8971128750 | 1 |
| 027(A) | BOLT THROUGH,STARTER | 8971129570 | 2 |
| 027(B) | BOLT THROUGH,STARTER | 8971128810 | 2 |
| 031 | SWITCH ENGAGE STARTER | 8971128720 | 1 |
| 032 | COVER RUBBER,STARTER | 5811190290 | 1 |
| 038 | GASKET RR COVER,STARTER | 8941702140 | 2 |
| 041 | SCREW RR COVER,STARTER | 8971128830 | 2 |
| 041 | SCREW RR COVER,STARTER | 8971429030 | 2 |
| 043 | RETAINER PINION STARTER | 8943772460 | 1 |
| 044 | ROLLER PINION STARTER | 5811290990 | 5 |
| 046(A) | GEAR CLU STARTER | 8971128790 | 1 |
| 046(B) | GEAR CLU STARTER | 8970786490 | 1 |
| 047 | SPRING PINION STARTER | 8943772450 | 1 |
| 048 | BALL PINION,STARTER | 5811290920 | 1 |
| 058 | PIPE DRAIN RR COVER STARTER | 8970414210 | 1 |
| 058 | PIPE DRAIN RR COVER STARTER | 8943772390 | 1 |
| 114(A) | NUT TERMINAL | 8941097630 | 1 |
| 114(B) | NUT TERMINAL | 8943772380 | 1 |
