051: Масляный насос и маслоприёмник — HITACHI ZX40U
Схема и каталожные номера деталей узла «051: Масляный насос и маслоприёмник» для экскаватора HITACHI ZX40U.

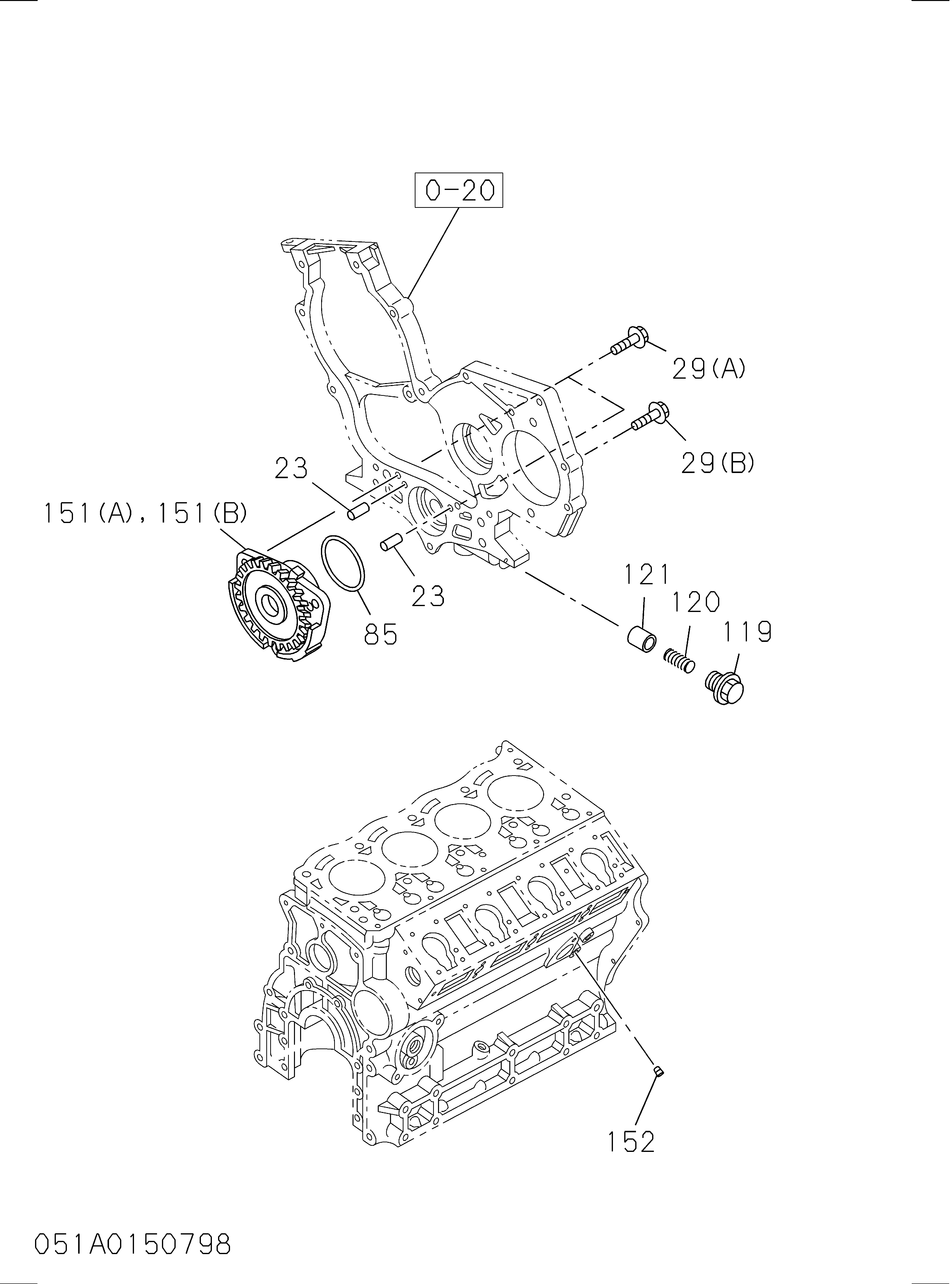

Схема узла
Каталожные номера
| Позиция | Наименование | Каталожный номер | Кол. |
|---|---|---|---|
| 001 | PUMP ASM OIL | 8970488097 | 1 |
| 013 | BOLT OIL PUMP TO C/BL | 0280808300 | 4 |
| 013 | BOLT OIL PUMP TO C/BL | 0280508300 | 4 |
| 022 | BODY ASM OIL PUMP | 8970488104 | 1 |
| 023 | PIN BODY,OIL PUMP | 9081606160 | 2 |
| 023 | PIN BODY,OIL PUMP | 9081506160 | 2 |
| 029(A) | BOLT OIL PUMP | 0280806300 | 2 |
| 029(A) | BOLT OIL PUMP | 0280506300 | 2 |
| 029(B) | BOLT OIL PUMP | 0280806500 | 1 |
| 029(B) | BOLT OIL PUMP | 0280506500 | 1 |
| 051 | STRAINER & PIPE ASM OIL | 8971172990 | 1 |
| 061 | BOLT OIL STRAINER | 0280808160 | 1 |
| 061 | BOLT OIL STRAINER | 0280508160 | 1 |
| 085 | GASKET OIL PUMP | 8971096790 | 1 |
| 102 | GASKET STRAINER | 1096234960 | 1 |
| 119 | PLUG RELIEF VLV | 8941046150 | 1 |
| 120 | SPRING RELIEF VLV | 8971133320 | 1 |
| 121 | VALVE RELIEF,OIL PUMP | 8942355671 | 1 |
| 132 | SWITCH OIL PRESSURE | 1824100083 | 1 |
| 151(A) | PUMP SUB ASM OIL | 8970448133 | 1 |
| 152 | PLUG | 1096050500 | 2 |
| 152 | PLUG | 8973695521 | 2 |
