040: Система впрыска топлива — HITACHI ZX40U
Схема и каталожные номера деталей узла «040: Система впрыска топлива» для экскаватора HITACHI ZX40U.

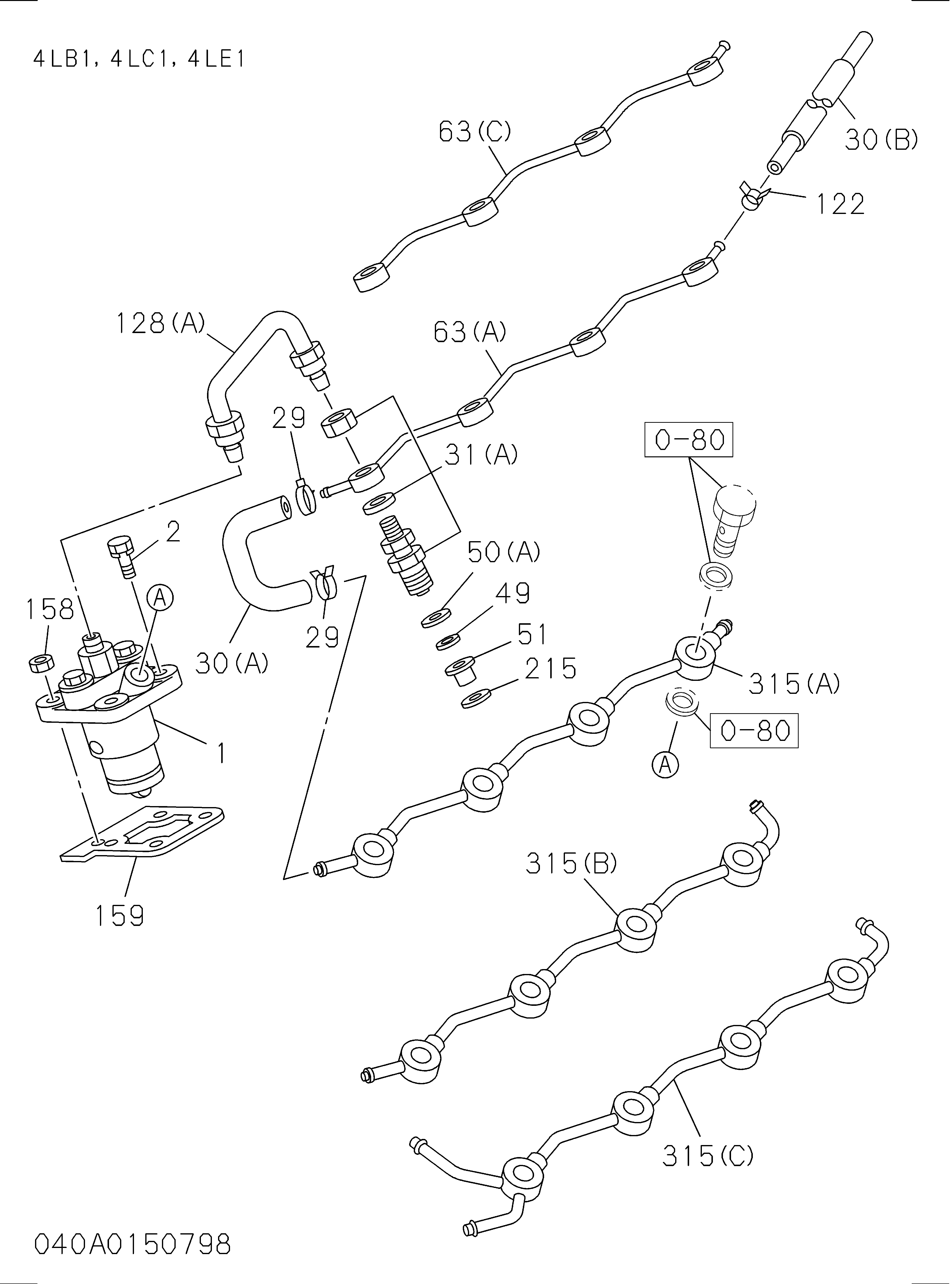

Схема узла
Каталожные номера
| Позиция | Наименование | Каталожный номер | Кол. |
|---|---|---|---|
| 001 | PUMP ASM INJ | 8973148952 | 4 |
| 002 | BOLT INJ PUMP | 0280808200 | 8 |
| 002 | BOLT INJ PUMP | 0280508200 | 8 |
| 029 | CLIP HOSE | 5097070051 | 2 |
| 030(C) | HOSE RUBBER,FUEL LEAK | 8972292513 | 1 |
| 031(B) | NOZZLE ASM INJ | 8973148971 | 4 |
| 032 | HOLDER ASM NOZZLE | 8973148250 | 4 |
| 033(B) | NOZZLE INJ | 8972299070 | 4 |
| 034 | BOLT EYE NOZZLE HOLDER | 8973116830 | 4 |
| 035 | NUT NOZZLE RET,NOZZLE HOLDER | 8941741840 | 4 |
| 043(A) | SEAT NOZZLE SPRING NOZZLE HOLDER | 8943127230 | 4 |
| 044 | SPRING NOZZLE,NOZZLE HOLDER | 8941741410 | 4 |
| 046 | PIN NOZZLE SET, NOZZLE HOLDER | 8941741390 | 4 |
| 050(B) | GASKET NOZZLE HOLDER | 8943264390 | 4 |
| 063(B) | PIPE FUEL,NOZZLE LEAK OFF | 8972172492 | 1 |
| 066 | GASKET INJ NOZZLE | 8971713310 | 4 |
| 093 | GASKET LEAK OFF PIPE | 8972323341 | 4 |
| 094 | BRACKET INJ NOZZLE | 8971952593 | 4 |
| 128(B) | PIPE ASM INJ | 8972283851 | 4 |
| 140(A) | SHIM NOZZLE SPRING,NOZZLE HOLDER | 8971160290 | 1 |
| 140(A) | SHIM NOZZLE SPRING,NOZZLE HOLDER | 8971160320 | 1 |
| 140(A) | SHIM NOZZLE SPRING,NOZZLE HOLDER | 8971160330 | 1 |
| 140(A) | SHIM NOZZLE SPRING,NOZZLE HOLDER | 8971160340 | 1 |
| 140(A) | SHIM NOZZLE SPRING,NOZZLE HOLDER | 8971160350 | 1 |
| 140(A) | SHIM NOZZLE SPRING,NOZZLE HOLDER | 8971160360 | 1 |
| 140(A) | SHIM NOZZLE SPRING,NOZZLE HOLDER | 8971160370 | 1 |
| 140(A) | SHIM NOZZLE SPRING,NOZZLE HOLDER | 8971160380 | 1 |
| 140(A) | SHIM NOZZLE SPRING,NOZZLE HOLDER | 8971160390 | 1 |
| 140(A) | SHIM NOZZLE SPRING,NOZZLE HOLDER | 8971160400 | 1 |
| 140(A) | SHIM NOZZLE SPRING,NOZZLE HOLDER | 8971160410 | 1 |
| 140(A) | SHIM NOZZLE SPRING,NOZZLE HOLDER | 8971160420 | 1 |
| 140(A) | SHIM NOZZLE SPRING,NOZZLE HOLDER | 8971160430 | 1 |
| 140(A) | SHIM NOZZLE SPRING,NOZZLE HOLDER | 8971160440 | 1 |
| 146 | SPACER NOZZLE | 8943444390 | 4 |
| 158 | NUT INJ PUMP | 0911502080 | 8 |
| 158 | NUT INJ PUMP | 0911802080 | 8 |
| 159 | SHIM INJ PUMP | 8972272821 | 1 |
| 159 | SHIM INJ PUMP | 8972272831 | 1 |
| 159 | SHIM INJ PUMP | 8972272841 | 1 |
| 159 | SHIM INJ PUMP | 8972272851 | 1 |
| 159 | SHIM INJ PUMP | 8972272861 | 1 |
| 159 | SHIM INJ PUMP | 8972272871 | 1 |
| 159 | SHIM INJ PUMP | 8972272881 | 1 |
| 159 | SHIM INJ PUMP | 8972272891 | 1 |
| 159 | SHIM INJ PUMP | 8972272901 | 1 |
| 313 | BOLT BRKT,INJ NOZZLE | 8944337171 | 4 |
| 315(C) | PIPE FUEL,SUCTION | 8971920980 | 1 |
