015: Коленчатый вал, поршни и маховик — HITACHI ZX40U
Схема и каталожные номера деталей узла «015: Коленчатый вал, поршни и маховик» для экскаватора HITACHI ZX40U.

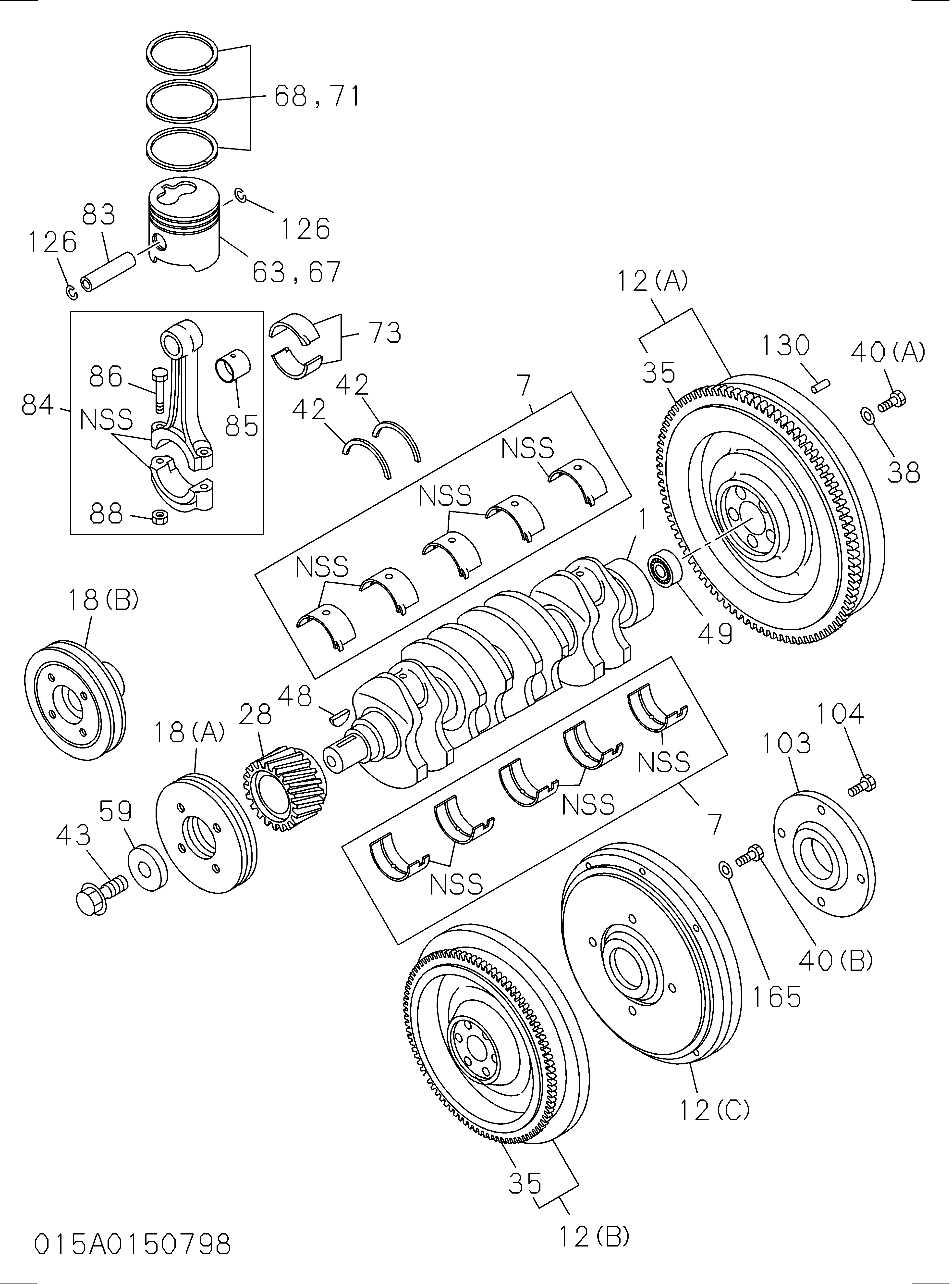

Схема узла
Каталожные номера
| Позиция | Наименование | Каталожный номер | Кол. |
|---|---|---|---|
| 001 | CRANKSHAFT | 8972553375 | 1 |
| 001 | CRANKSHAFT | 8980638280 | 1 |
| 007 | METAL KIT CRANKSHAFT,STANDARD | 8971412100 | 1 |
| 007 | METAL KIT CRANKSHAFT,STANDARD | 8980890840 | 1 |
| 012(A) | FLYWHEEL | 8971335690 | 1 |
| 012(A) | FLYWHEEL | 8971712073 | 1 |
| 018(B) | PULLEY CR/SHF | 8973149060 | 1 |
| 018(B) | PULLEY CR/SHF | 8973257221 | 1 |
| 018(B) | PULLEY CR/SHF | 8973149060 | 1 |
| 028 | GEAR CR/SHF | 8970345921 | 1 |
| 028 | GEAR CR/SHF | 8973286120 | 1 |
| 035 | GEAR RING | 8944196021 | 1 |
| 038 | WASHER FLYWHEEL | 8970232680 | 6 |
| 040(A) | BOLT FLYWHEEL | 8941333281 | 6 |
| 042 | WASHER THRUST,CR/SHF | 5115990031 | 2 |
| 042 | WASHER THRUST,CR/SHF | 8980637830 | 2 |
| 043 | BOLT CR/SHF PULLEY | 8943860790 | 1 |
| 048 | KEY WOODRUFF,CR/SHF | 8942016410 | 1 |
| 059 | WASHER CR/SHF PULLEY | 8941347920 | 1 |
| 063 | PISTON | 8972326040 | 4 |
| 067 | PISTON O/S=0.25 | 8972326030 | 4 |
| 068 | RING SET PISTON,STANDARD | 8971412080 | 4 |
| 071 | RING SET PISTON,O/S=0.25 | 8971412090 | 4 |
| 073 | METAL SET CONN ROD,STANDARD | 8970777930 | 4 |
| 083 | PIN PISTON | 5122110180 | 4 |
| 084 | ROD ASM CONN | 8970777905 | 4 |
| 085 | BUSHING CONNROD | 8941140540 | 4 |
| 086 | BOLT CONNROD | 8943777841 | 8 |
| 086 | BOLT CONNROD | 8980485360 | 8 |
| 086 | BOLT CONNROD | 8981691400 | 8 |
| 088 | NUT CONNROD | 8943777850 | 8 |
| 126 | RING SNAP,PISTON PIN | 8941140491 | 8 |
