014: Распределительный вал и клапаны — HITACHI ZX40U
Схема и каталожные номера деталей узла «014: Распределительный вал и клапаны» для экскаватора HITACHI ZX40U.

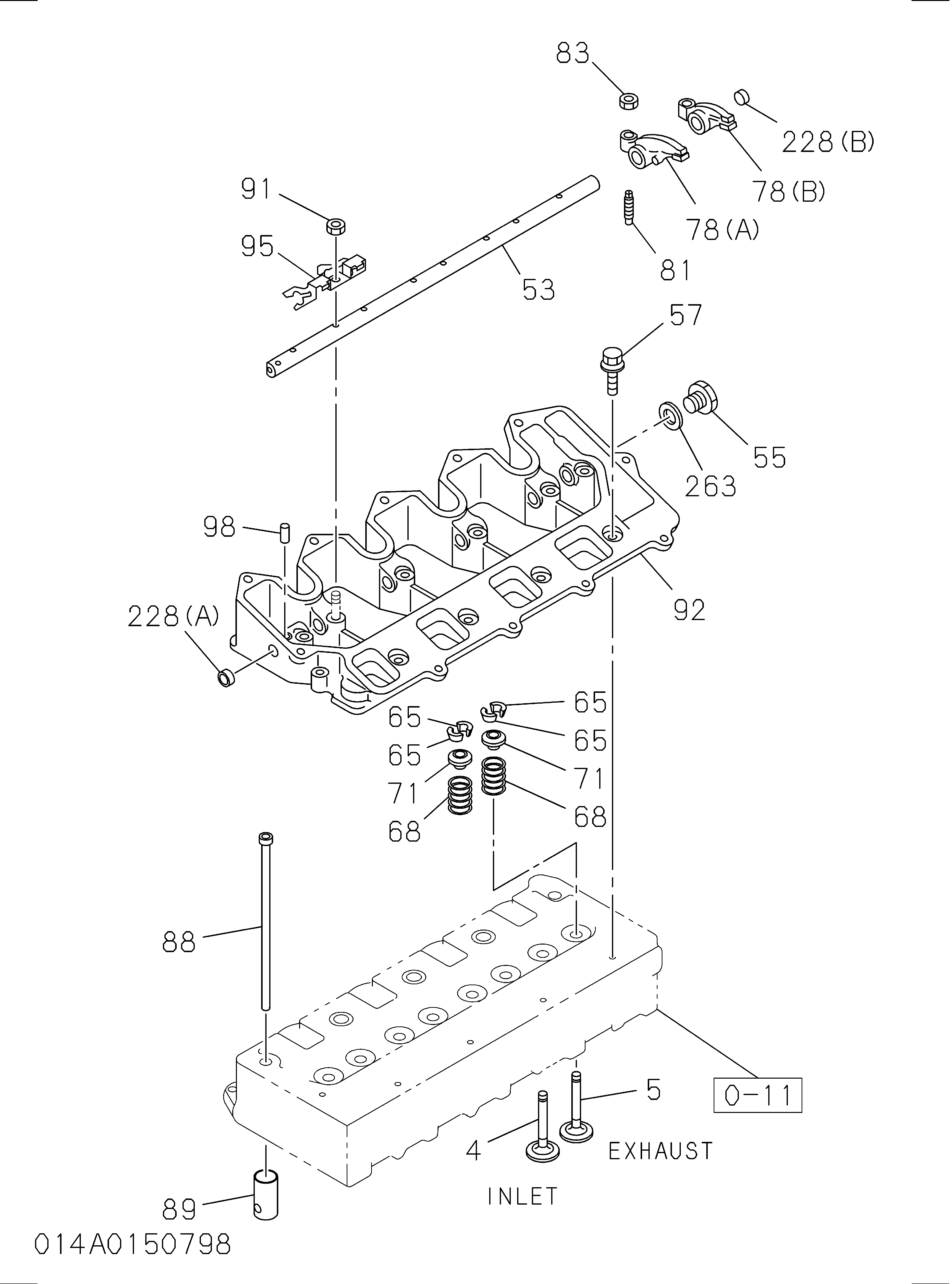

Схема узла
Каталожные номера
| Позиция | Наименование | Каталожный номер | Кол. |
|---|---|---|---|
| 001 | CAMSHAFT | 8972310830 | 1 |
| 004 | VALVE INL | 8971021231 | 4 |
| 005 | VALVE EXH | 8970454103 | 4 |
| 006 | NUT CM/SHF GEAR | 5094000530 | 1 |
| 006 | NUT CM/SHF GEAR | 8973032250 | 1 |
| 034 | PIN CM/SHF | 9098786260 | 1 |
| 053 | SHAFT ROCKER ARM | 8971186561 | 1 |
| 055 | PLUG ROCKER SHAFT END | 9992023140 | 1 |
| 055 | PLUG ROCKER SHAFT END | 8980429440 | 1 |
| 057 | BOLT ROCKER ARM BRKT | 0280806250 | 5 |
| 057 | BOLT ROCKER ARM BRKT | 0280806500 | 5 |
| 057 | BOLT ROCKER ARM BRKT | 0280506250 | 5 |
| 057 | BOLT ROCKER ARM BRKT | 0280506500 | 5 |
| 065 | COLLAR SPLIT | 8942395010 | 16 |
| 068 | SPRING VLV | 8970346291 | 8 |
| 071 | SEAT SPR | 8942510311 | 8 |
| 078(A) | ARM ROCKER | 8972125180 | 4 |
| 078(B) | ARM ROCKER | 8972125200 | 4 |
| 081 | SCREW ADJ,ROCKER ARM | 8970104850 | 8 |
| 083 | NUT ADJ SCREW,LK | 9091115060 | 8 |
| 083 | NUT ADJ SCREW,LK | 0911115060 | 8 |
| 088 | ROD PUSH | 8970695753 | 8 |
| 089 | TAPPET VLV | 8971243690 | 8 |
| 089 | TAPPET VLV | 8970346301 | 8 |
| 091 | NUT ROCKER SHAFT | 8971378360 | 6 |
| 091 | NUT ROCKER SHAFT | 8973296220 | 6 |
| 092 | BRACKET ROCKER ARM | 8971952674 | 1 |
| 092 | BRACKET ROCKER ARM | 8980488890 | 1 |
| 095 | SPRING ROCKER SHAFT | 8970706982 | 4 |
| 098 | PIN SHAFT SET | 9081605160 | 1 |
| 098 | PIN SHAFT SET | 9081505160 | 1 |
| 107(A) | SHAFT IDLE GEAR | 8971297802 | 1 |
| 111(A) | COLLAR THRUST,IDLE GEAR | 5125350051 | 1 |
| 112 | GEAR IDLE | 8972178641 | 1 |
| 196 | RING SNAP | 9091801620 | 1 |
| 228(A) | CUP SEALING,CAMSHAFT | 9111290830 | 1 |
| 228(B) | CUP SEALING,CAMSHAFT | 8970395260 | 1 |
| 228(B) | CUP SEALING,CAMSHAFT | 8972334290 | 1 |
| 263 | GASKET CAM END | 9095714140 | 1 |
| 270 | GEAR INJ PUMP & VLV | 8972179570 | 1 |
| 270 | GEAR INJ PUMP & VLV | 8973074044 | 1 |
| 271 | BOLT COLLAR | 0280908450 | 2 |
| 271 | BOLT COLLAR | 0280608450 | 2 |
| 272 | RING CAMSHAFT | 8970620480 | 1 |
| 273(A) | BEARING CAMSHAFT | 9000906100 | 1 |
| 273(B) | BEARING CAMSHAFT | 9000906570 | 1 |
| 274 | PIN IDLE SHAFT | 9081605100 | 1 |
| 274 | PIN IDLE SHAFT | 8981466010 | 1 |
