012: Блок цилиндров — HITACHI ZX40U
Схема и каталожные номера деталей узла «012: Блок цилиндров» для экскаватора HITACHI ZX40U.

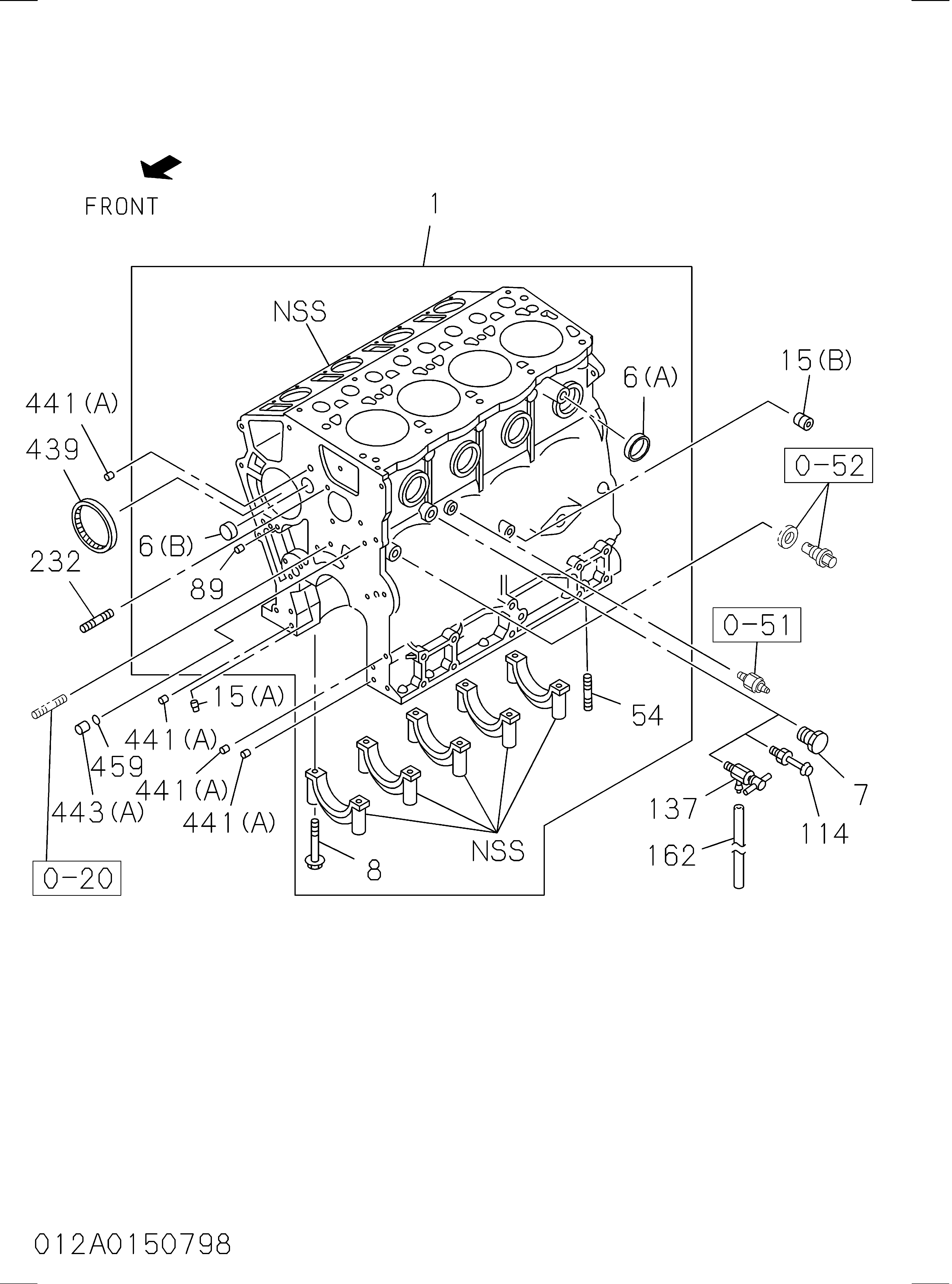

Схема узла
Каталожные номера
| Позиция | Наименование | Каталожный номер | Кол. |
|---|---|---|---|
| 001 | BLOCK ASM CYL | 8972178031 | 1 |
| 001 | BLOCK ASM CYL | 8972322854 | 1 |
| 001 | BLOCK ASM CYL | 8973695546 | 1 |
| 006(A) | CUP SEALING | 8942298530 | 5 |
| 006(B) | CUP SEALING | 8972096090 | 1 |
| 007 | PLUG WATER DRAIN | 9096640010 | 1 |
| 008 | BOLT BRG CAP | 8941674701 | 10 |
| 015(A) | PLUG OIL GALLERY | 9092045100 | 1 |
| 015(B) | PLUG OIL GALLERY | 1096050190 | 1 |
| 054 | STUD OIL PAN TO BLOCK | 9041106160 | 2 |
| 054 | STUD OIL PAN TO BLOCK | 9041106160 | 4 |
| 054 | STUD OIL PAN TO BLOCK | 0410106160 | 4 |
| 061(A) | PIN STRAIGHT | 9081606160 | 2 |
| 061(A) | PIN STRAIGHT | 9081606160 | 4 |
| 061(A) | PIN STRAIGHT | 9081506160 | 4 |
| 061(B) | PIN STRAIGHT | 9098785320 | 2 |
| 083 | PIN FLYWHEEL HSG | 9081608160 | 2 |
| 089 | CUP SEALING,OIL GALLERY | 5096000130 | 4 |
| 141 | BOLT COVER | 0280806140 | 4 |
| 141 | BOLT COVER | 0280806200 | 2 |
| 141 | BOLT COVER | 0280506200 | 2 |
| 144 | NUT COVER FIX | 8971378360 | 2 |
| 144 | NUT COVER FIX | 8973296220 | 2 |
| 205(A) | STUD PUMP HOLE | 1093050050 | 8 |
| 205(B) | STUD PUMP HOLE | 9041106160 | 3 |
| 205(B) | STUD PUMP HOLE | 0410106160 | 3 |
| 232 | STUD WATER PUMP | 8972621451 | 1 |
| 297 | COVER CYL BLOCK | 8971189892 | 1 |
| 300 | STUD COVER | 8972621471 | 1 |
| 300 | STUD COVER | 8972621481 | 1 |
| 416(A) | STUD OIL FILTER | 8943255950 | 1 |
| 439 | BEARING NEEDLE | 8970470560 | 1 |
| 439 | BEARING NEEDLE | 8980637940 | 1 |
| 440 | PIN CONT LINK | 8970394953 | 2 |
| 441(A) | DOWEL CYL BLOCK | 9112290581 | 4 |
| 441(B) | DOWEL CYL BLOCK | 8942008190 | 2 |
| 442 | PLUG THRUST | 8970471421 | 1 |
| 443(A) | CAP SEALING | 5096000130 | 1 |
| 448(A) | PLUG C/BL | 5096040160 | 1 |
