Гидроцилиндр отвала — HITACHI ZX40U
Схема и каталожные номера деталей узла «Гидроцилиндр отвала» для экскаватора HITACHI ZX40U.

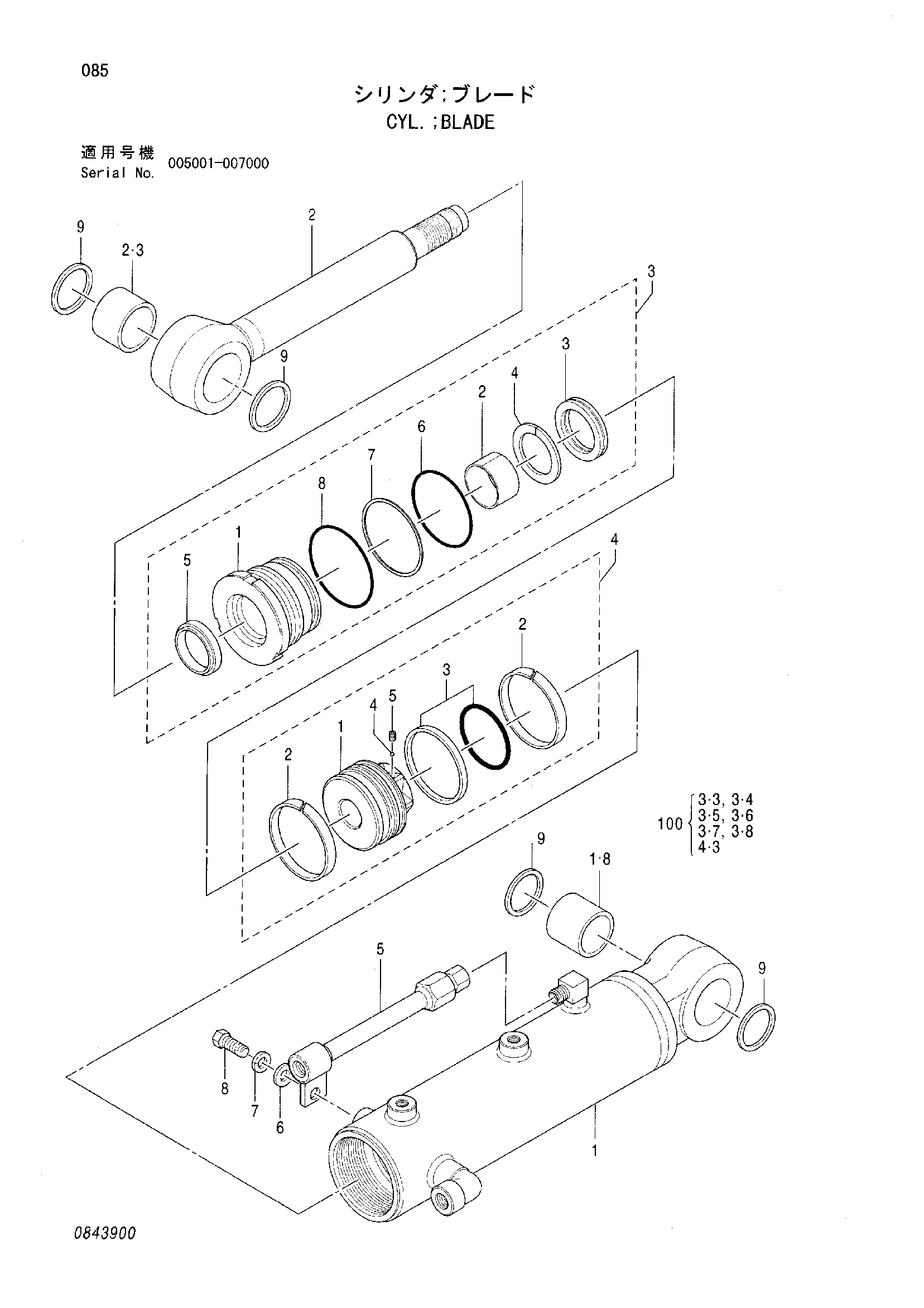

Схема узла
Каталожные номера
| Позиция | Наименование | Каталожный номер | Кол. |
|---|---|---|---|
| — | CYL. BLADE | 4468880 | 1 |
| 1 | TUBE CYL. ASS'Y | 0843901 | 1 |
| 1-8 | BUSHING | 4334427 | 1 |
| 2 | ROD PISTON ASS'Y | 0843902 | 1 |
| 2-3 | BUSHING | 4334427 | 1 |
| 3 | HEAD CYL. ASS'Y | 0843903 | 1 |
| 3-1 | HEAD CYL. | 0843904 | 1 |
| 3-2 | BUSHING | 0479203 | 1 |
| 3-3 | PACKING U-RING | 0654204 | 1 |
| 3-4 | RING BACK-UP | 0843503 | 1 |
| 3-5 | RING WIPER | 0662802 | 1 |
| 3-6 | O-RING | 0843805 | 1 |
| 3-7 | RING BACK-UP | 0479209 | 1 |
| 3-8 | O-RING | 0479210 | 1 |
| 4 | PISTON ASS'Y | 0843806 | 1 |
| 4-1 | PISTON | 0843807 | 1 |
| 4-2 | RING SLIDE | 0479212 | 2 |
| 4-3 | RING SEAL | 0479213 | 1 |
| 4-4 | BALL STEEL | 0478719 | 1 |
| 4-5 | SCREW SET | 0479214 | 1 |
| 5 | PIPE | 0843905 | 1 |
| 6 | WASHER | 0658610 | 1 |
| 7 | WASHER SPRING | 0662807 | 1 |
| 8 | BOLT | 0843906 | 1 |
| 9 | SEAL DUST | 4356109 | 4 |
| 100 | KIT SEAL | 0843907 | 1 |
