Гидроцилиндр ковша — HITACHI ZX40U
Схема и каталожные номера деталей узла «Гидроцилиндр ковша» для экскаватора HITACHI ZX40U.

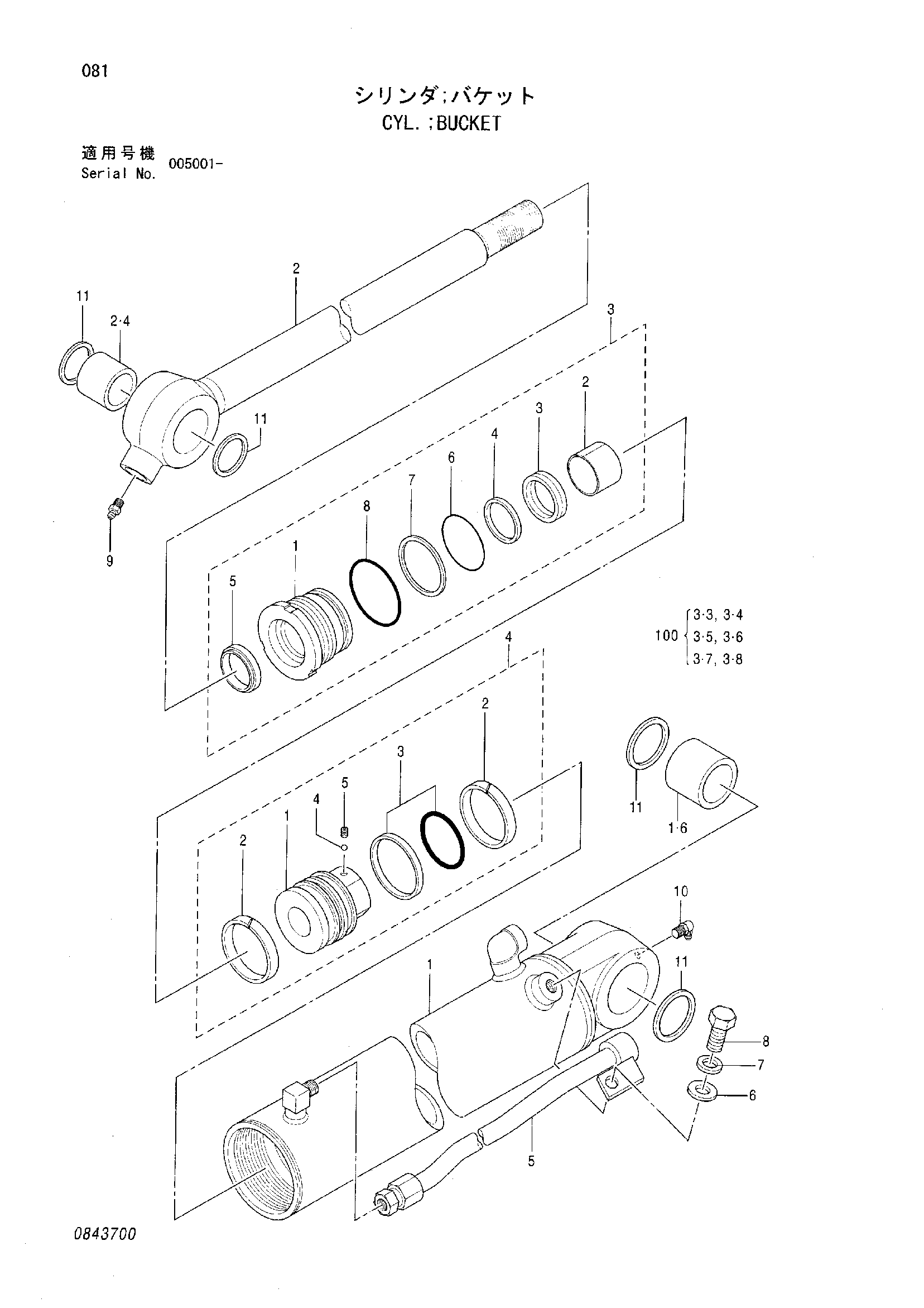

Схема узла
Каталожные номера
| Позиция | Наименование | Каталожный номер | Кол. |
|---|---|---|---|
| — | CYL. BUCKET | 4468843 | 1 |
| 1 | TUBE CYL. ASS'Y | 0843701 | 1 |
| 1-6 | BUSHING | 4332744 | 1 |
| 2 | ROD PISTON ASS'Y | 0843702 | 1 |
| 2-4 | BUSHING | 4332744 | 1 |
| 3 | HEAD CYL. ASS'Y | 0797603 | 1 |
| 3-1 | HEAD CYL. | 0658603 | 1 |
| 3-2 | BUSHING | 0797604 | 1 |
| 3-3 | PACKING U-RING | 0658605 | 1 |
| 3-4 | RING BACK-UP | 0849403 | 1 |
| 3-5 | RING WIPER | 0658606 | 1 |
| 3-6 | O-RING | 0658607 | 1 |
| 3-7 | RING BACK-UP | 0430902 | 1 |
| 3-8 | O-RING | 0479007 | 1 |
| 4 | PISTON ASS'Y | 0744605 | 1 |
| 4-1 | PISTON | 0658608 | 1 |
| 4-2 | RING SLIDE | 0495006 | 2 |
| 4-3 | RING SEAL | 0495007 | 1 |
| 4-4 | BALL STEEL | 0429917 | 1 |
| 4-5 | SCREW SET | 0479012 | 1 |
| 5 | PIPE | 0658609 | 1 |
| 6 | WASHER | 0658610 | 1 |
| 7 | WASHER SPRING | 0662807 | 1 |
| 8 | BOLT | 0663202 | 1 |
| 9 | FITTING GREASE | 0429920 | 1 |
| 10 | FITTING GREASE | 0481204 | 1 |
| 11 | SEAL DUST | 0478912 | 4 |
| 100 | KIT SEAL | 0843703 | 1 |
