Гидроцилиндр рукояти — HITACHI ZX40U
Схема и каталожные номера деталей узла «Гидроцилиндр рукояти» для экскаватора HITACHI ZX40U.

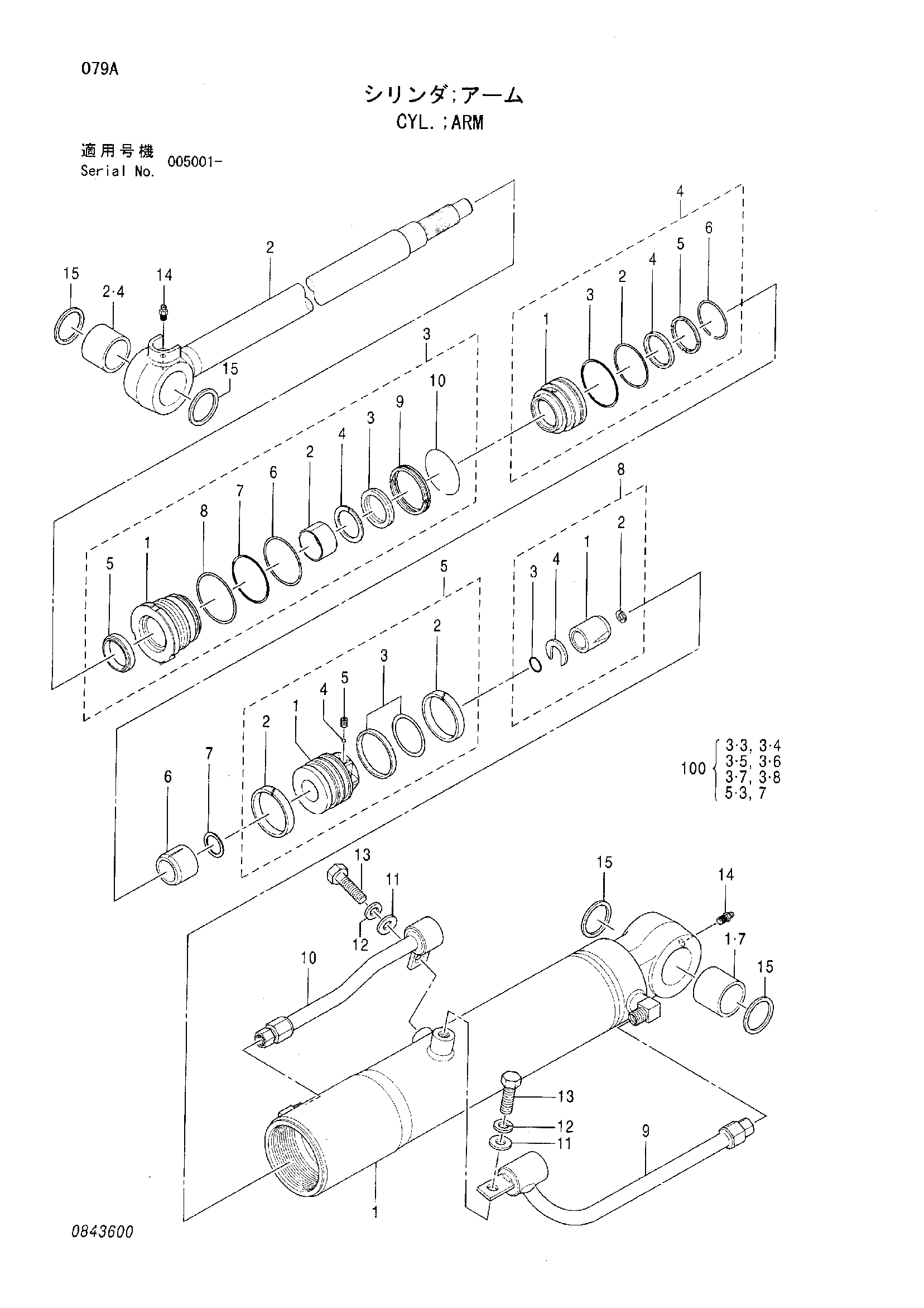

Схема узла
Каталожные номера
| Позиция | Наименование | Каталожный номер | Кол. |
|---|---|---|---|
| — | CYL. ARM | 4468842 | 1 |
| 1 | TUBE CYL. ASS'Y | 0843601 | 1 |
| 1-7 | BUSHING | 4332744 | 1 |
| 2 | ROD PISTON ASS'Y | 0843602 | 1 |
| 2-4 | BUSHING | 4332744 | 1 |
| 3 | HEAD CYL. ASS'Y | 0745003 | 1 |
| 3-1 | HEAD CYL. | 0656703 | 1 |
| 3-2 | BUSHING | 0478703 | 1 |
| 3-3 | PACKING U-RING | 0656704 | 1 |
| 3-4 | RING BACK-UP | 0843603 | 1 |
| 3-5 | RING WIPER | 0662901 | 1 |
| 3-6 | O-RING | 0656705 | 1 |
| 3-7 | RING BACK-UP | 0480904 | 1 |
| 3-8 | O-RING | 0478712 | 1 |
| 3-9 | CONNECTOR | 0480905 | 1 |
| 3-10 | STOPPER | 0480906 | 1 |
| 4 | RETAINER ASS'Y | 0843604 | 1 |
| 4-1 | RETAINER | 0656706 | 1 |
| 4-2 | O-RING | 0656707 | 1 |
| 4-3 | RING BACK-UP | 0480904 | 1 |
| 4-4 | RING CUSHION | 0478713 | 1 |
| 4-5 | SPACER | 0478714 | 1 |
| 4-6 | STOPPER | 0478715 | 1 |
| 5 | PISTON ASS'Y | 0843605 | 1 |
| 5-1 | PISTON | 0843606 | 1 |
| 5-2 | RING SLIDE | 0480912 | 2 |
| 5-3 | RING SEAL | 0480913 | 1 |
| 5-4 | BALL STEEL | 0478719 | 1 |
| 5-5 | SCREW SET | 0479214 | 1 |
| 6 | BRG. CUSHION | 0656709 | 1 |
| 7 | RING BACK-UP | 0656710 | 1 |
| 8 | CUSHION ASS'Y | 0843607 | 1 |
| 8-1 | BRG. CUSHION | 0843608 | 1 |
| 8-2 | STOPPER | 0843609 | 2 |
| 8-3 | SEAL CUSHION | 0843610 | 1 |
| 8-4 | RING RETAINING | 0843611 | 1 |
| 9 | PIPE | 0843612 | 1 |
| 10 | PIPE | 0656713 | 1 |
| 11 | WASHER | 0479104 | 2 |
| 12 | WASHER SPRING | 0662904 | 2 |
| 13 | BOLT | 0662905 | 2 |
| 14 | FITTING GREASE | 0429920 | 2 |
| 15 | SEAL DUST | 0478912 | 4 |
| 100 | KIT SEAL | 0843613 | 1 |
